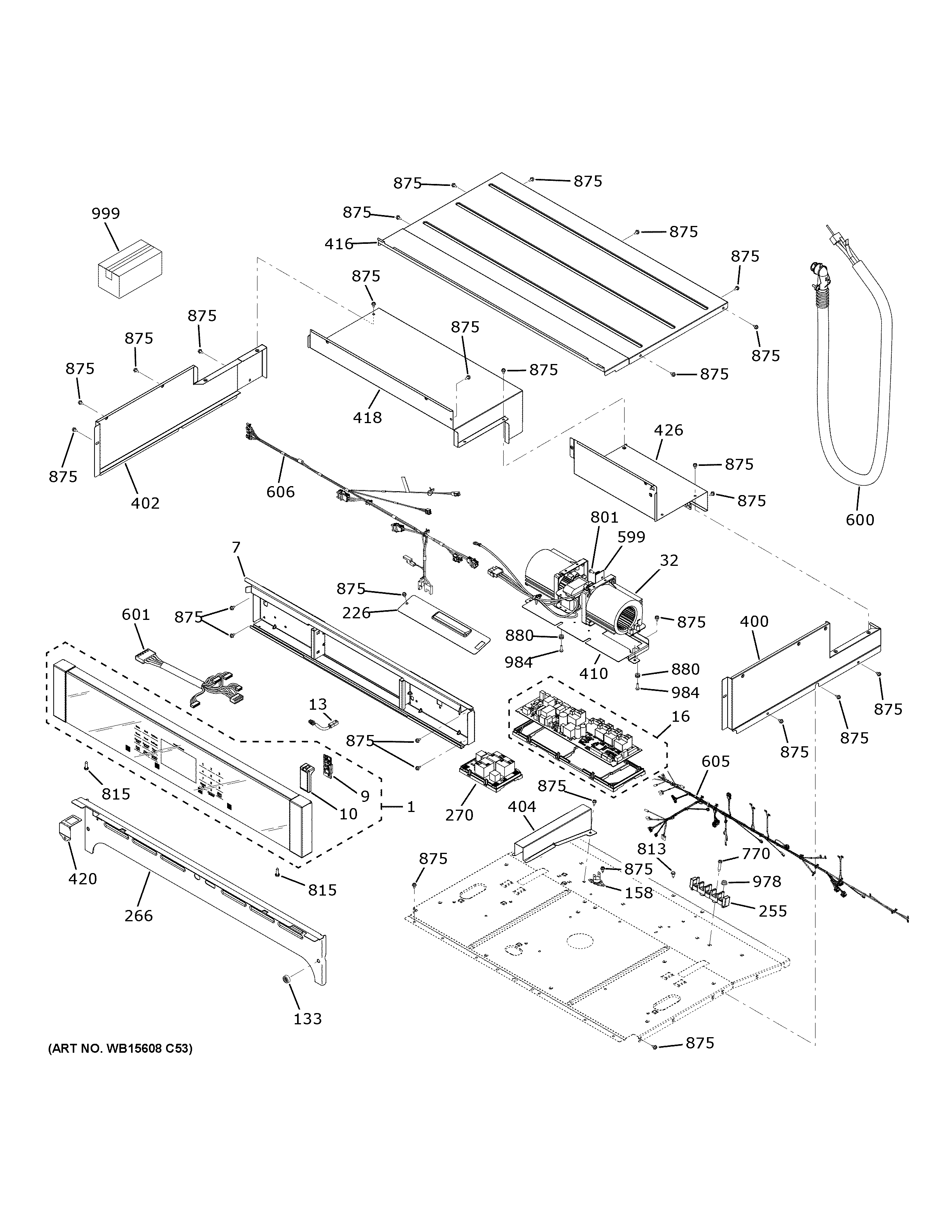

JKD5000EN2ES CONTROL PANELadmin2025-04-26T10:40:40+00:00JKD5000EN2ES CONTROL PANEL ProductsPositionProduct1WB27X39838 GE Slate LCD Control Panel7WB07X32470 GE Control Panel Mounting BRack9WB27X33353 GE Wi-Fi Module Kit10WB02X20265 GE Transceiver Housing13WB18X30704 GE Jumper16CONTROL BOARD ASM32WB26X31060 GE Oven Blower Fan133WB03T10341 GE Oven Door Bumper158WB24X35587 GE Limit Switch226WB34T10161 GE Access Latch Cover255WB17K10001 GE Oven Block Terminal266WB07X33065 GE Upper Vent Trim270WB27X33083 GE Relay Board and Frame Assembly400COVER TOP RIGHT EDGE402WB44T10126 GE Oven Top Left Edge Cover404WB34T10150 GE Upper Air Vent Channel410WB37T10026 GE Oven Upper Fan Mount Bracket416WB34T10159 GE Oven Top Front Cover418TOP REAR COVER420WB24X33028 GE RJ45 Bracket426COVER WIRE REAR599WB27T11463 GE Oven Fan Sensor Board600WB18T10574 GE Oven Wire Conduit Assembly600WB18X33486 GE Conduit Wire Assembly601WB18X32871 GE Oven UI COM and RJ45 Harness605WB49X35794 GE Double Oven Main Harness606WB18X33082 GE Harness Wire Latch606WB18X47029 GE Latch Wire Harness770WB1K5072 GE Oven Screw801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"813WB1X1261 GE Oven Screw815WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8875WH2X930 GE Screw880WB01T10128 GE Grommet978WB1X1259 GE Hex Nut984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN999MANUAL U&C TIP SHEET999PM INSTALL INSTRUCTIONS999PM INSTALL INSTRUCTIONS999PM MINI MANUAL AND WIRING999PM OWNERS MANUAL999INSTRUCTION INSTALL999PM INSTALL INSTRUCTIONS
