JKD5000EN2ES LOWER OVEN

JKD5000EN2ES LOWER OVEN

Written by

in

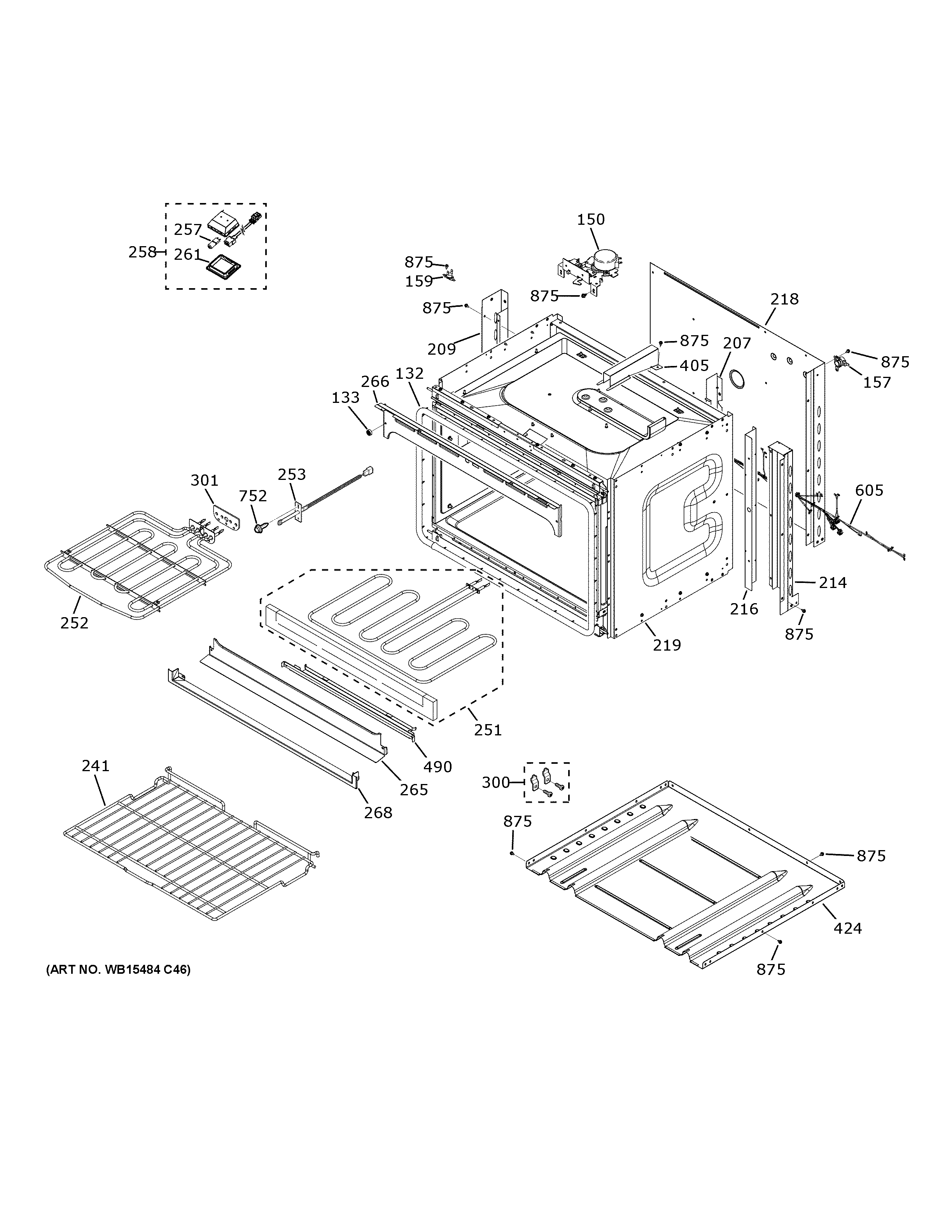

JKD5000EN2ES LOWER OVEN

Products

PositionProduct
132WB35X34867 GE Oven Door Gasket
133WB03T10341 GE Oven Door Bumper
150LATCH ASM
157HIGH LIMIT SWITCH
159WB24X46907 GE High Limit Switch
207WB34T10134 GE Center Air Divider
209WB34X21910 GE Oven Rear Channel LT
214WB55X10971 GE Rear Channel
216DIVIDER AIR DUCT RIGHT
218WB34T10138 GE Lower Rear Duct Cover
219WB34X21913 GE Side Insulation Retainer
241WB48X32180 GE Oven Rack Assembly
251WB44X21668 GE Oven Bake Element
252WB44T10124 GE Oven Broil Element Assembly
253SENSOR ASM
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31221 GE Oven Halogen Lamp Assembly
261WB34X31317 GE Oven Light Lens
265WB07X21777 GE Oven Lower Trim Vent
266WB07X33065 GE Upper Vent Trim
268WB07T10778 GE Oven Bottom Trim Cabinet
300WB49X21652 GE Oven Hinge Bracket Assembly
301WB35X21972 GE Broil Element Gasket
405WB34T10160 GE Lower Air Channel
424WB34T10155 GE Oven Bottom Air Duct Cover
490WB55T10195 GE Oven Hidden Bake Cover
605WB49X35794 GE Double Oven Main Harness
752WB01X21742 GE Screw
875WH2X930 GE Screw
