JKD910BB2BB WARMING DRAWER – Aparts

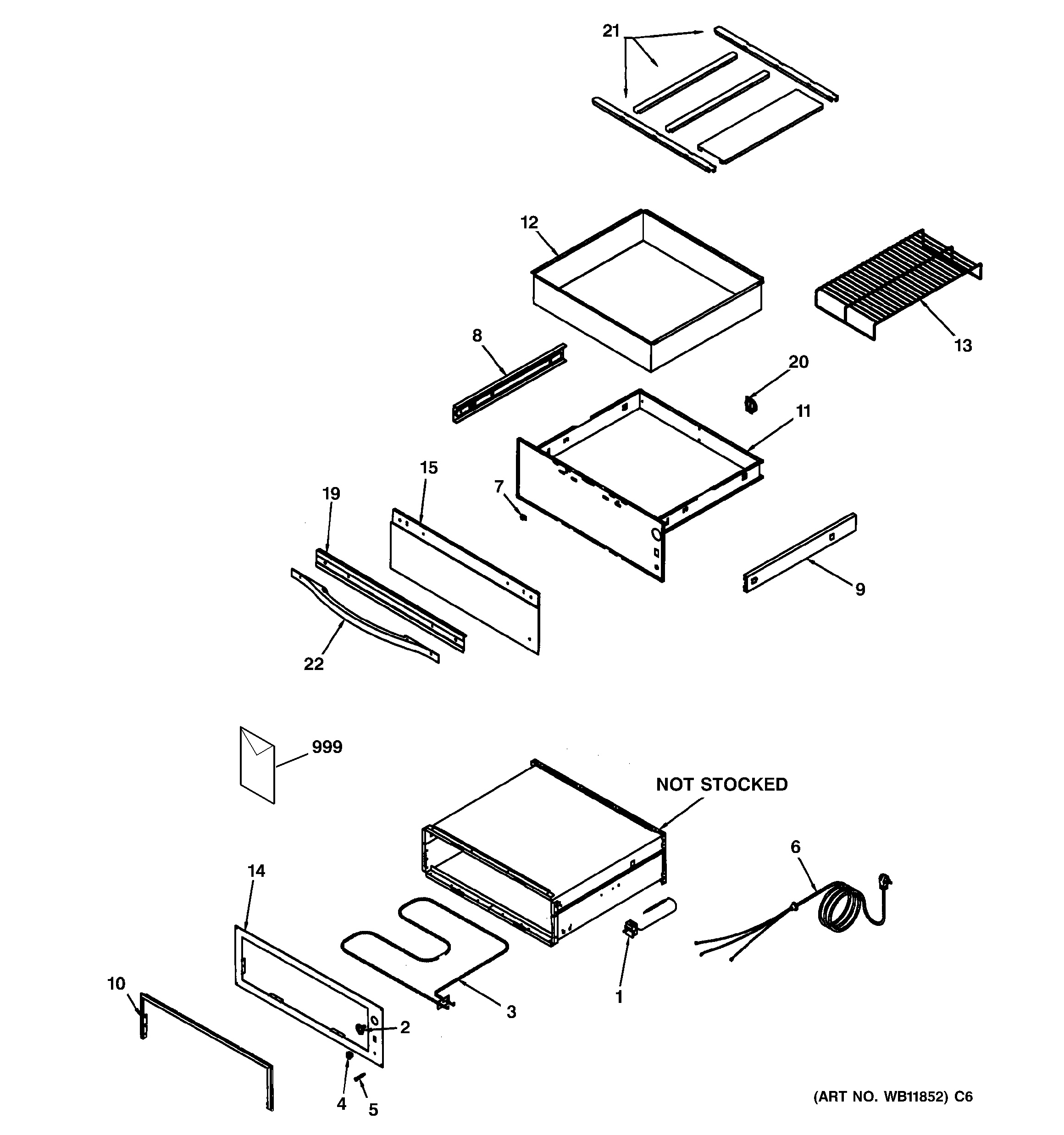

JKD910BB2BB WARMING DRAWER

Products

Position	Product
1	THERMOSTAT
2	GEN WB03X10060
3	WB44X10029 GE Oven Heating Element
4	GEN WB24X10036
5	GEN WB02X10819
6	GEN WB02X10588
7	KNOB, VENT SLIDE
8	GEN WB02X10589
9	GEN WB02X10590
10	GEN WB02X10591
11	GEN WB58X10003
12	WB58X10004 GE Drawer Pan 27 Inch
13	WB48X10045 GE Wire Rack
14	GEN WB56X10251
15	GEN WB55X10508
19	GEN WB07X10221
20	WB02X10592 GE Magnet Closed Detent
21	WB64X10031 GE 27" Rail Kit Svce Assembly
22	GEN WB15T10012
999	GEN 49-8933
