JKD915BF1BB WARMER DRAWER – Aparts

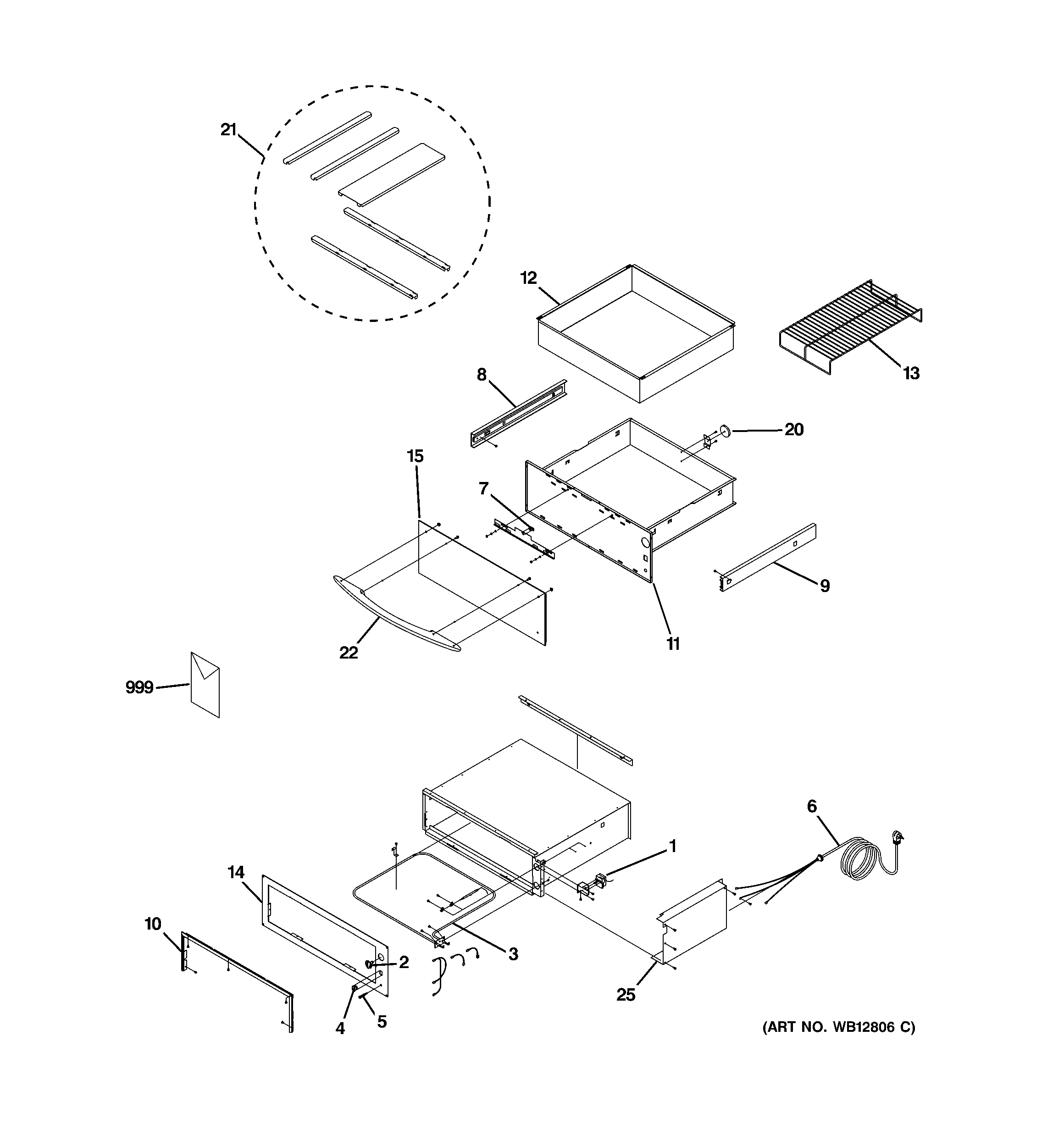

JKD915BF1BB WARMER DRAWER

Products

Position	Product
1	THERMOSTAT
2	GEN WB03X10060
3	WB44X10029 GE Oven Heating Element
4	GEN WB24X10036
5	GEN WB02X10819
6	GEN WB02X10588
7	KNOB, VENT SLIDE
8	GEN WB02X10589
9	GEN WB02X10590
10	GASKET SEAL 27" ASS'Y
11	GEN WB58X10003
12	WB58X10004 GE Drawer Pan 27 Inch
13	WB48X10045 GE Wire Rack
14	GEN WB56X10251
15	DRAWER FRONT 27" BLACK
20	WB02X10592 GE Magnet Closed Detent
21	WB64X10031 GE 27" Rail Kit Svce Assembly
22	GEN WB15T10083
25	GEN WB56X10426
999	GEN 49-8933
