JKP13GV1BB CONTROL PANEL

JKP13GV1BB CONTROL PANEL

Written by

in

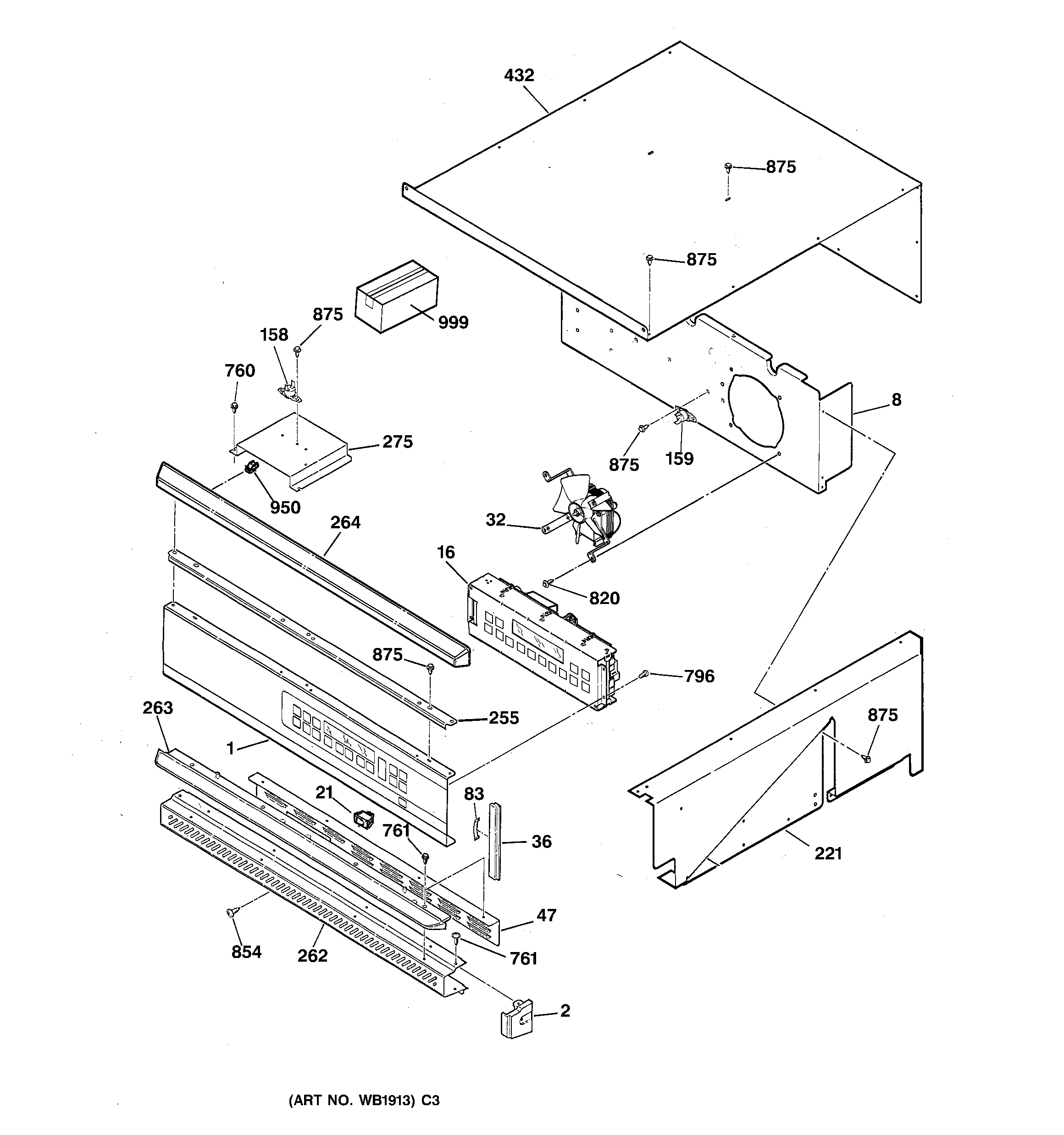

JKP13GV1BB CONTROL PANEL

Products

PositionProduct
1GEN WB36K5514
2GEN WB36K5102
2GEN WB36K5101
8GEN WB02K5257
16GEN WB27K5190
21WB24K5035 GE Oven Rocker Switch
32GEN WB26K5045
36GEN WB07K5185
36GEN WB07K5184
47WB38K5029 GE Oven Vent Barrier
83GEN WB09K5008
158WB24K5033 GE Oven Limit Switch
159WB24K5085 GE Oven Limit Switch
221SIDE EXTENSTION-RT-UPPER
221SIDE EXTENSION-LT-UPPER
255GEN WB07K5280
262VERTICAL SIDE TRM-RT-BLK
262VERTICAL SIDE TRM-LT-BLK
262WB7K5101 GE Oven Vent Trim
263WB7K5378 GE Oven Brow Trim
264GEN WB07K5272
275WB34K5078 GE Oven Vent Box Cover
432GEN WB63K5081
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
796WB1K5116 GE Oven Screw
820WB1X1424D GE Oven Screw Package
854GEN WB01X1328
854SCREW-BRT. NI.
875WH2X930 GE Screw
950CABLE CLIP
999GEN 31-13176
999GEN 49-8601
999GEN 31-10119
999GEN WB18K5210
999GEN WB18K5450
