JKP15AV1AA CONTROL PANEL

JKP15AV1AA CONTROL PANEL

Written by

in

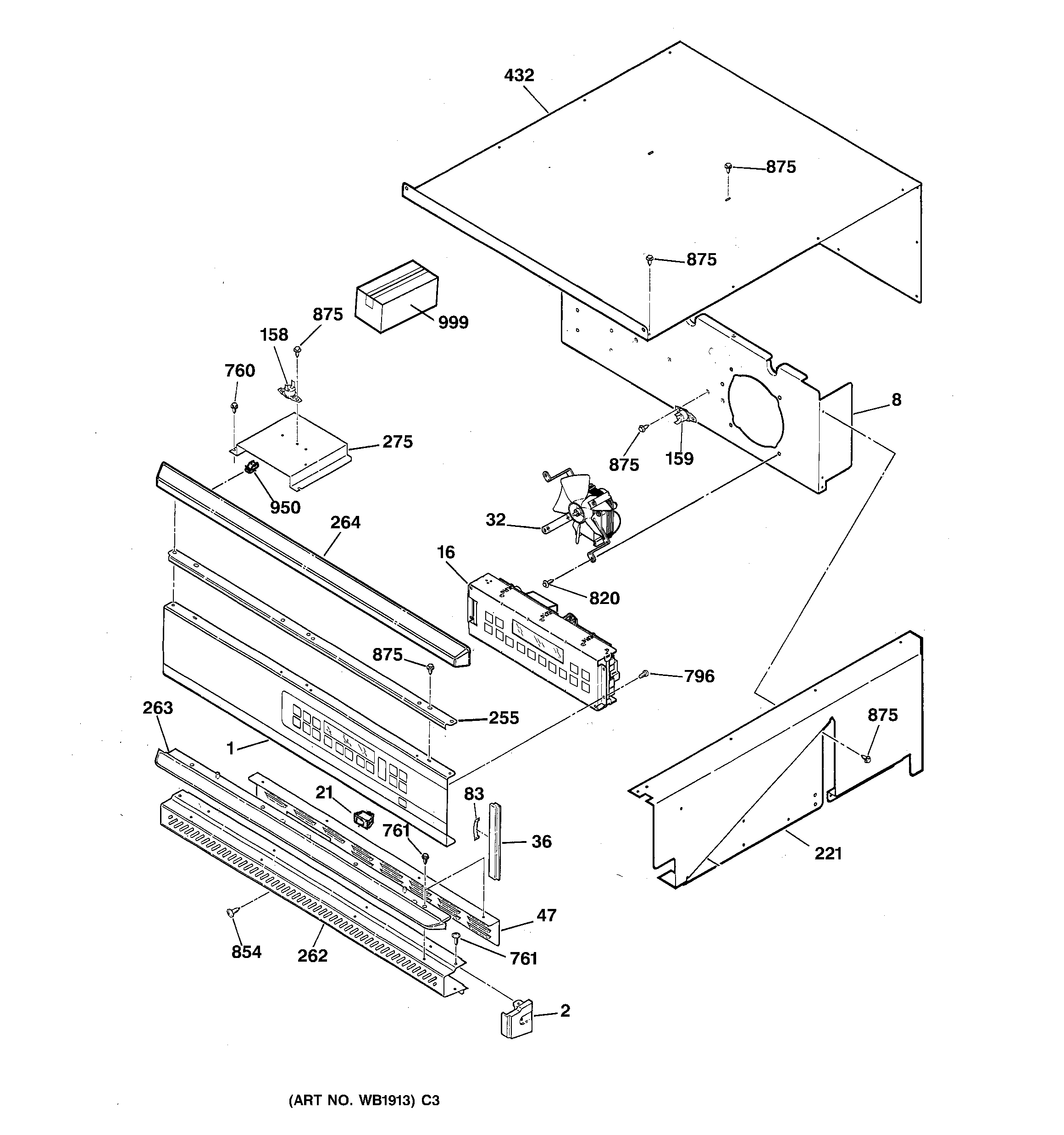

JKP15AV1AA CONTROL PANEL

Products

PositionProduct
1GEN WB36K5534
2GEN WB36K5339
2GEN WB36K5340
8GEN WB02K5257
16GEN WB27K5190
21GEN WB24K5088
32GEN WB26K5045
36GEN WB07K5243
36GEN WB07K5242
47WB38K5029 GE Oven Vent Barrier
83GEN WB09K5008
158WB24K5033 GE Oven Limit Switch
159WB24K5085 GE Oven Limit Switch
221SIDE EXTENSION-LT-UPPER
221SIDE EXTENSTION-RT-UPPER
255GEN WB07K5244
262GEN WB07K5246
262GEN WB07K5254
262GEN WB07K5247
263GEN WB07K5231
264GEN WB07K5245
275WB34K5078 GE Oven Vent Box Cover
432GEN WB63K5081
760WB1X536 GE Oven Screw
761WB1K5062 GE Oven Screw
796WB1K5116 GE Oven Screw
820WB1X1424D GE Oven Screw Package
854GEN WB01X1328
854SCREW-BRT. NI.
875WH2X930 GE Screw
950CABLE CLIP
999GEN 31-13176
999GEN 49-8601
999GEN WB18K5450
999GEN WB18K5210
999GEN 31-10119
