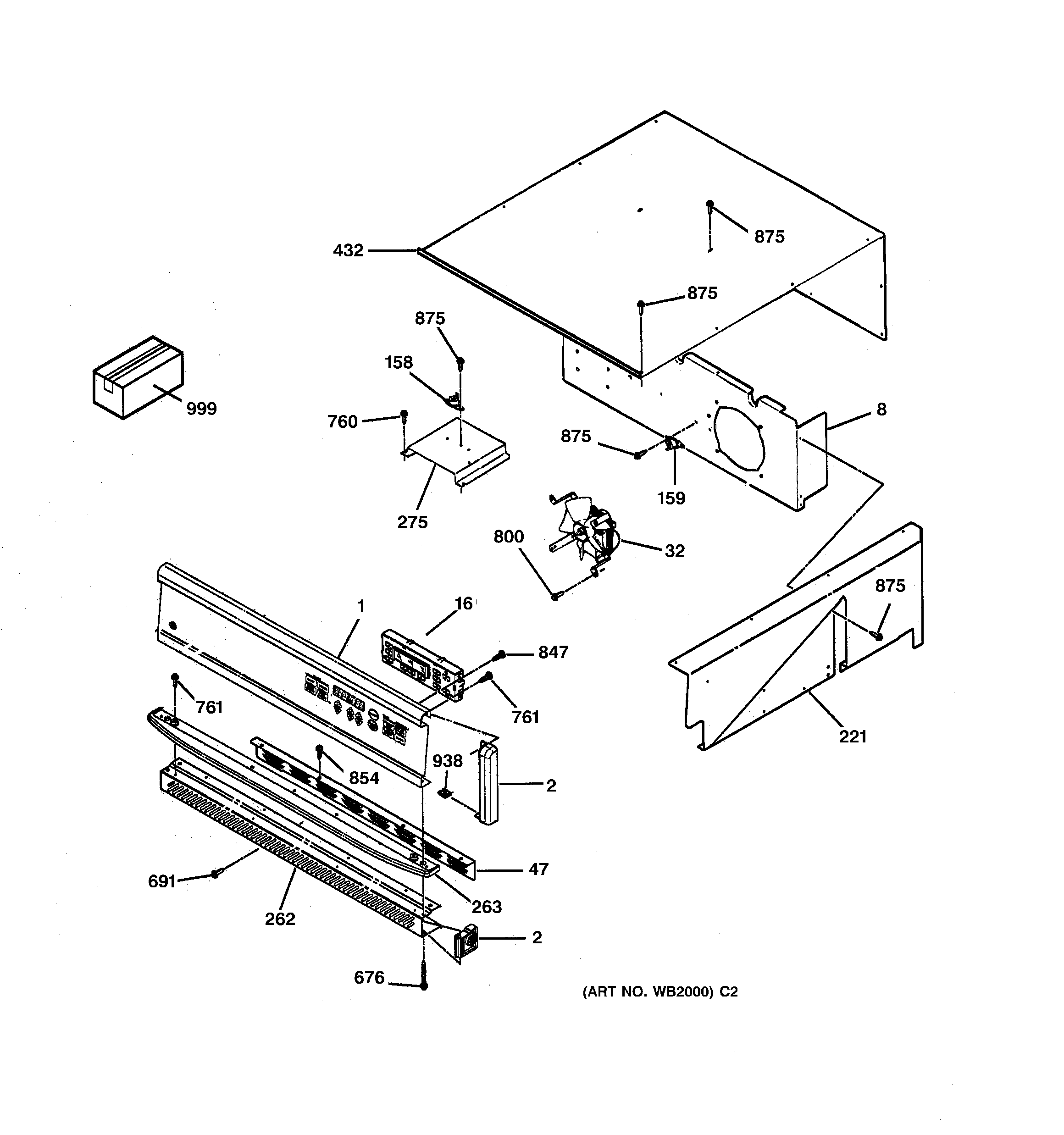

JKP15AW2AA CONTROL PANEL

Products

PositionProduct
1GEN WB36T10158
2CAP END (RT-AD)
2GEN WB07K5442
2CAP END (LT-AD)
8GEN WB02K5257
16GEN WB27K5299
32GEN WB26K5045
47WB38K5058 GE Vent Barrier
158WB24K5033 GE Oven Limit Switch
159WB24K5085 GE Oven Limit Switch
221BODY SIDE EXTENSION-RT
221BODY SIDE EXTENSION-LT
262GEN WB07K5457
262GEN WB07K5480
262GEN WB07K5456
263TRIM I-BROW UPR (AD)
275GEN WB34T10004
275WB34K5078 GE Oven Vent Box Cover
432GEN WB63K5094
676SCR 8-18 X 2.500 (AD)
691GEN WB01K5176
761GEN WB01K5211
761WB1K5029 GE Oven Screw
800WB1M1 GE Oven Screw
803WB1X1149 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
875WH2X930 GE Screw
938WB1K5209 GE Oven Clip
999GEN 31-13323
999USE & CARE MANUAL
999GEN 31-10200
999GEN WB18T10023
