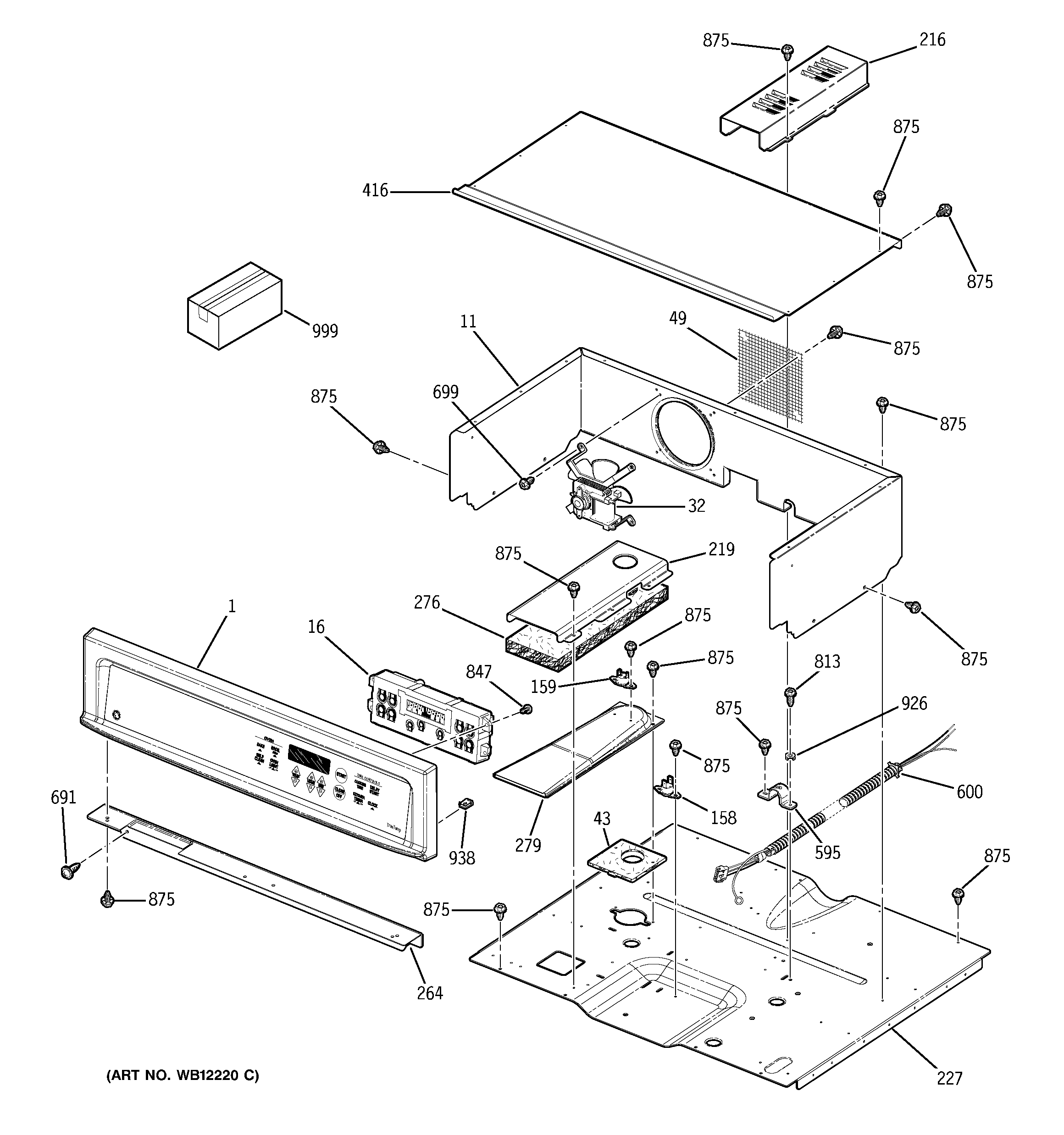

JKP15WD1WW CONTROL PANEL

JKP15WD1WW CONTROL PANEL

Written by

in

JKP15WD1WW CONTROL PANEL

Products

PositionProduct
1GEN WB36T10513
11GEN WB02T10112
16GEN WB27T10348
32WB26K5061 GE Oven Upper Fan Assembly
43GEN WB38T10017
49GEN WB34T10043
158WB24T10060 GE Oven Safety Thermostat
159LIMIT SWITCH-UPPER(VENT)
216GEN WB34K5216
216GEN WB34T10044
219GEN WB34T10041
219GEN WB34T10042
227GEN WB02T10114
264GEN WB07T10186
276GEN WB35T10066
279GEN WB28T10055
416GEN WB35T10060
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18T10221
691GEN WB01K5163
699WB1M1 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
875WH2X930 GE Screw
926GROUND WASHER
938WB1K5209 GE Oven Clip
999MANUAL USE & CARE
999GEN 31-10473
999GEN 31-13884
999GEN 31-10514
