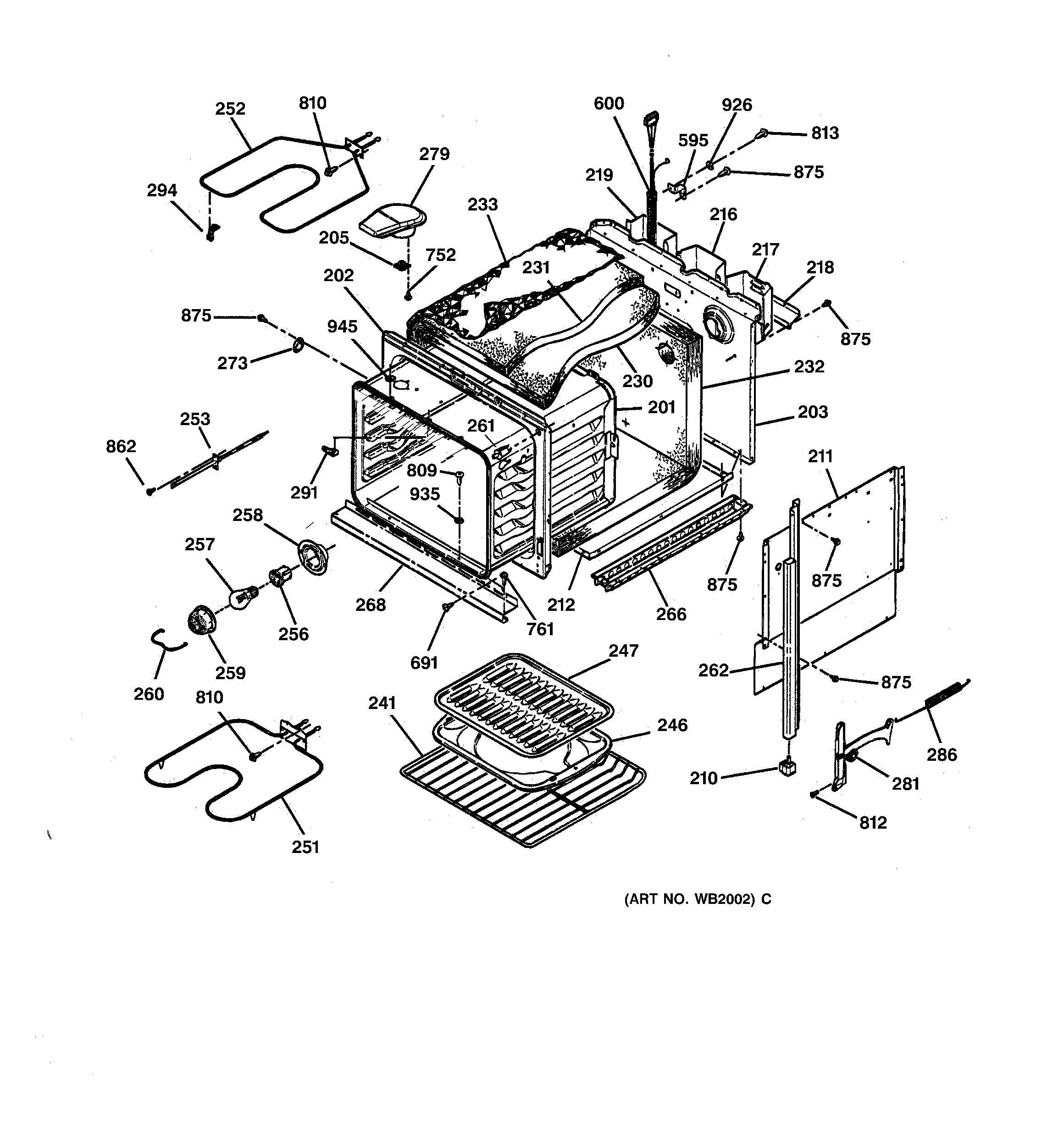

JKP15WW1WW BODY PARTS

JKP15WW1WW BODY PARTS

Written by

in

JKP15WW1WW BODY PARTS

Products

PositionProduct
201GEN WB63K5086
202GEN WB63K5084
203WB63K5167 GE Back Main
205WB6K5026 GE Oven Smoke El Screw
210GEN WB07K5454
210GEN WB07K5453
211WB63T10043 GE Cabinet Side
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34K5070
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
232INSULATION BACK/BTTM-UPR
233GEN WB34K5080
241WB48T10093 GE Oven Range Rack
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8K5029 GE Oven Lamp Holder
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24K5061
262GEN WB07K5444
262GEN WB07K5443
262GEN WB07K5483
266WB63K5079 GE Rail Base
268GEN WB07K5452
273GEN WB02K5365
279VENT BOX ASM-BLACK
281GEN WB14K5007
281GEN WB14K5006
286OVEN DOOR SPRING-UPPER
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5364
691SCREW-GRAY
691WB1K5177 GE Oven Trim Screw
752WB1K5200 GE Oven Screw 340531
761WB1K5062 GE Oven Screw
761WB1K5185 GE Oven White Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
862GEN WB01X1178
875WH2X930 GE Screw
926GROUND WASHER
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
