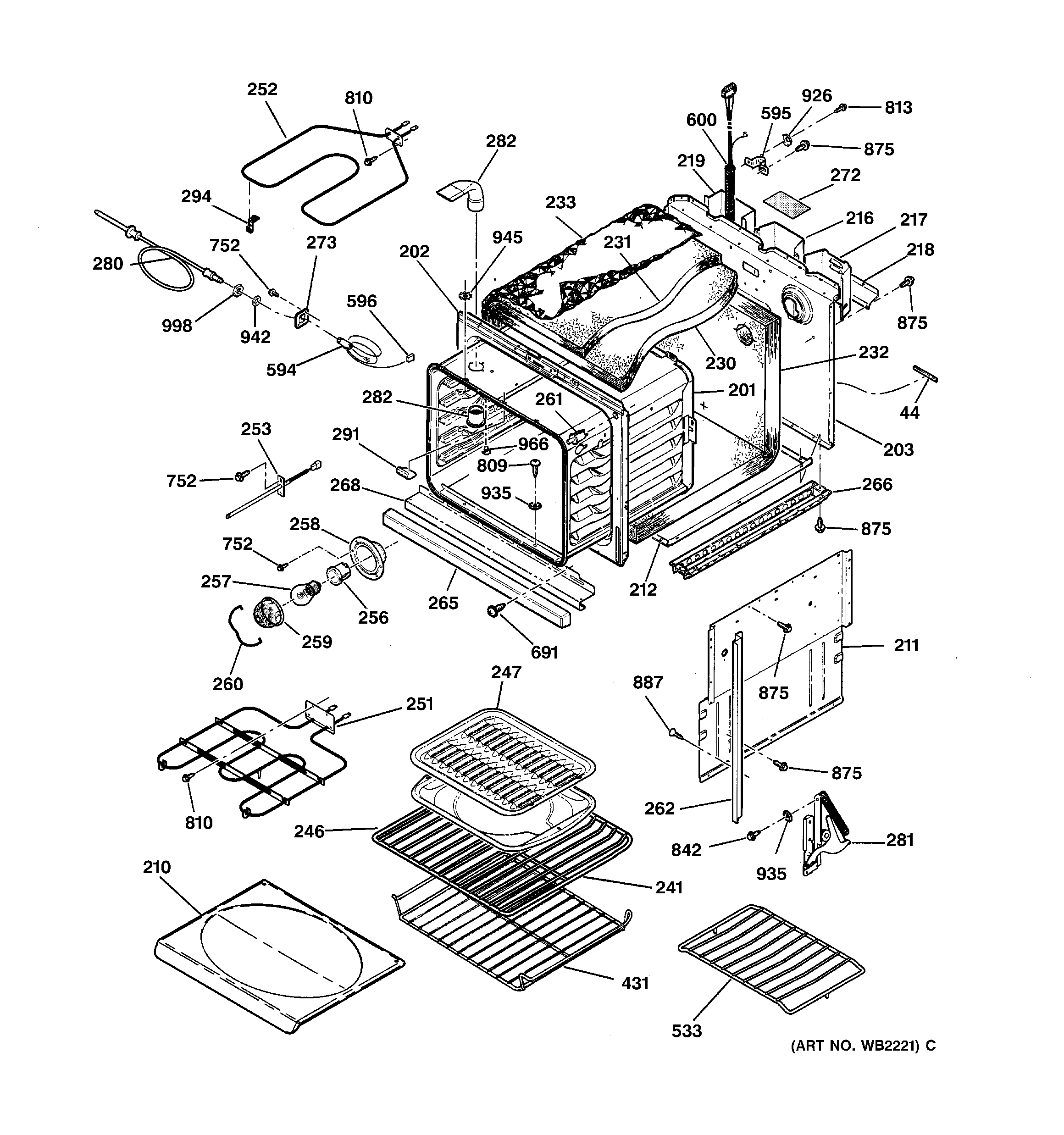

JKP18BA3BB BODY PARTS

JKP18BA3BB BODY PARTS

Written by

in

JKP18BA3BB BODY PARTS

Products

PositionProduct
44GEN WB02K5225
201GEN WB63T10040
202GEN WB63T10036
203WB63K5167 GE Back Main
210GEN WB63T10041
211WB63T10043 GE Cabinet Side
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34T10006
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
232INSULATION BACK/BTTM-UPR
233GEN WB34K5080
241GEN WB48K5009
247WB48X10056 GE Broil Pan Set, Large Porcelain
251GEN WB44T10013
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8K5029 GE Oven Lamp Holder
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24K5061
262GEN WB07T10056
262GEN WB07T10055
265GEN WB07T10060
266WB63K5079 GE Rail Base
268GEN WB07T10059
272WB35K5112 GE Insulator Module
273PROBE COVER
280WB20T10024 GE Oven Thermistor Probe
281GEN WB10T10009
281GEN WB10T10010
282GEN WB28K5010
282GEN WB28T10009
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
431GEN WB48K5010
533WB48X5108 GE Oven Roasting Rack
594GEN WB08K5054
595WB2K5126 GE Oven Condenser Clamp
596GEN WB08K5013
600GEN WB18K5364
691WB1K5162 GE Oven Black Screw
752WB1K5200 GE Oven Screw 340531
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
926GROUND WASHER
935WB1K5174 GE Oven Washer
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
966WB2X9573 GE Oven Clip
998WB1X5572 GE Oven Nut
