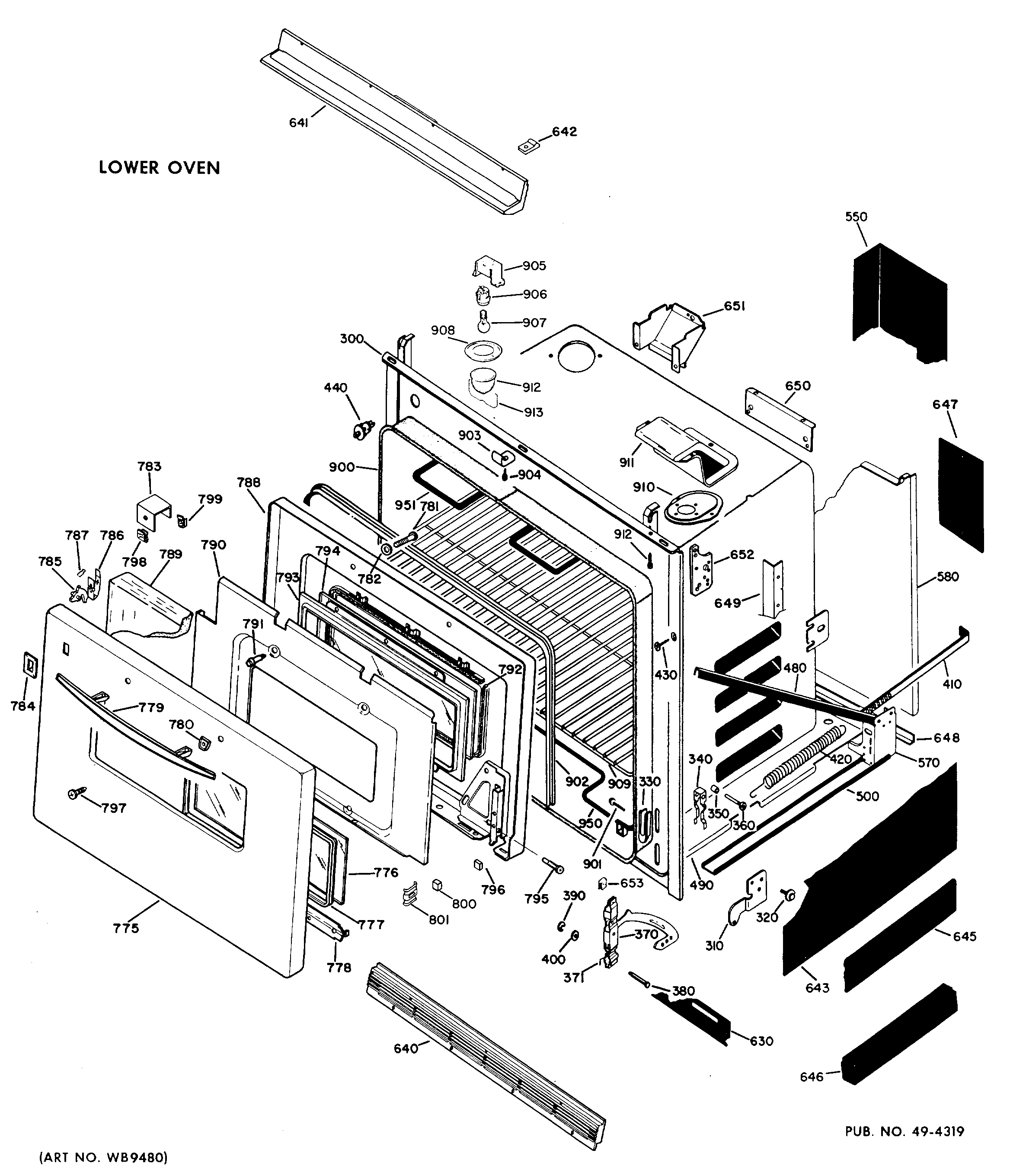

JKP27*08 LOWER OVEN

JKP27*08 LOWER OVEN

Written by

in

JKP27*08 LOWER OVEN

Products

PositionProduct
252SUPPORT BROIL
300GEN WB56X1326
310GEN WB10X0155
310GEN WB10X0154
320GEN WZ06X0086
330GEN WB02X1460
340SPRING HINGE LEVER
350GEN WB02X1462
360SCREW
370GEN WB10X0151
371GEN WB09X0150
380GEN WB02X6195
390RING RETAINING
400GEN WZ10X0017
410GEN WB02X3289
420GEN WB09X0151
430GEN WB01X0292
430GEN WB01X0295
440SWITCH, OVEN LIGHT
480GEN WB02X2401
480WB1X536 GE Oven Screw
490GUARD BOTTOM
500CHANNEL BOTTOM
550GUARD TERMINAL
570GEN WB59X0108
580GUARD
630SUPPORT TRIM
630GEN WB02X2064
640GEN WB07X0673
640GEN WZ04X0237
640GRILL
640GEN WZ04X0349
641GEN WB07X1124
642WB1X537 GE Oven Screw
642SPEEDNUT
643GUARD SIDE
645GEN WB59X0106
646SPACER BOTTOM
647GEN WB59X0137
648ANGLE REAR
649ANGLE REAR
650SPACER BACK
651GUARD WIRE
652SUPPORT DOUBLE OVEN
652GEN WB04X0231
653SHIM
775GEN WB56X1363
775GEN WB56X1362
775DOOR PANEL HA
775DOOR PANEL WH
775DOOR PANEL AD
776GEN WB36X0430
777GEN WB07X1031
778GEN WB02X3282
779GEN WB15X0152
780GEN WB02X3322
781GEN WZ04X0386
782WB1X119D GE Oven Range Washer
783BRACKET HANDLE
784TRIM PLATE LOWER OVEN
785GEN WB02X5410
786GEN WB09X5083
787CAM LINK
788DOOR LINER
789GEN WB02X3283
790GEN WB55X0403
791GEN WB01X0547
792GASKET WINDOW
793GEN WB02X3284
794GEN WB36X0526
795WB1X558D GE Oven Screw Package
797GEN WZ05X0244
798SPEEDNUT
799GEN WB01X0577
800GEN WB02X3285
801GEN WB02X6707
900OVEN LINER INSULATION PKG.
900GEN WB53X0242
902WB2X2058 GE Oven Gasket
903GEN WB02X3393
905GEN WB02X3447
906GEN WB08X0191
908GEN WB02X3448
909RACK OVEN
911GEN WB01X0556
911VENT ASM
911GASKET VENT
912WB36X192 GE Oven Light Cover
913GEN WB02X2885
950BAKE ELEMENT SELF CLEAN
950WZ4X345D GE Screw Package 12 C92
951GASKET BROIL UNIT
951CLIP CAP TUBE
951WB44X134 GE Oven Broil Element
951SCREW MTG. SUPPORT
