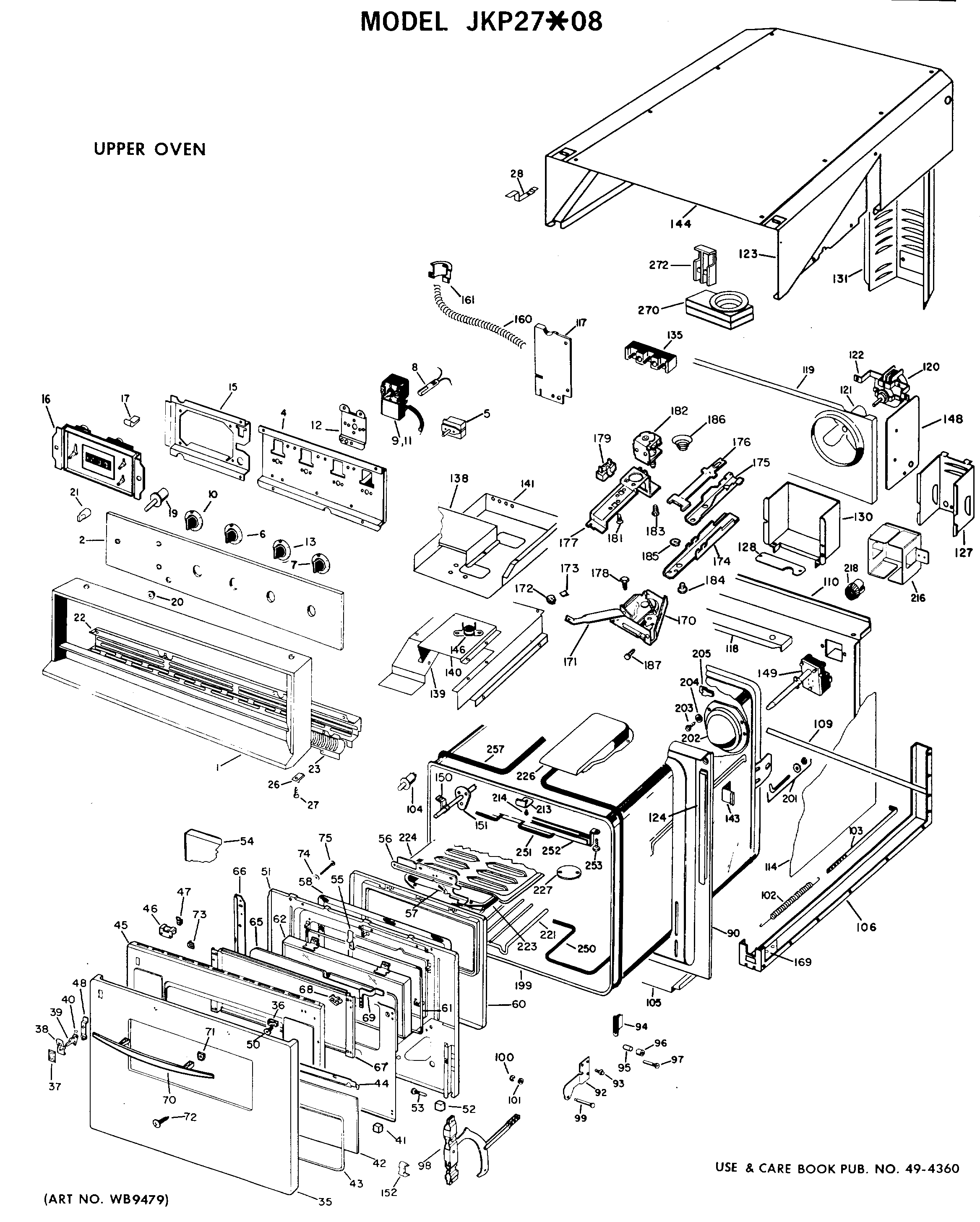

JKP27*08 UPPER OVEN

JKP27*08 UPPER OVEN

Written by

in

JKP27*08 UPPER OVEN

Products

Position	Product
1	GEN WB07X1122
1	SPACER, NOSE
1	GEN WB07X1123
1	SCREW, MTG. NOSE
2	GEN WB36X0561
4	GEN WB02X3171
5	GEN WB22X0073
5	GEN WB22X5085
6	GEN WB03X0465
7	GEN WB03X0469
8	GEN WB02X3468
8	NEON LAMP 118V
9	GEN WB24X0176
9	GEN WB02X6937
9	SCR 8-32 M PHR 3/16 S
9	GEN WB02X5545
10	GEN WB03X0466
11	SCR 8/32 TF FLR 5/16 S
11	GEN WB02X3178
11	THERMOSTAT, L.O.
12	GEN WB02X1949
13	GEN WB03X0470
15	GEN WB01X5220
15	GEN WB02X3405
16	NUT
16	WB19X10006 GE Oven Clock
17	GEN WB02X2006
19	SWITCH, LATCH RELEASE
20	TRIM SWITCH
21	GEN WB03X0459
22	GEN WB02X1973
23	GEN WZ05X0132
23	GEN WB07X0635
26	SPEEDNUT – MTG. TRIM TO
27	SCREW – MT. TRIM
28	GEN WZ04X0369
28	GEN WB02X3291
28	GEN WZ04X0372
35	GEN WB56X1367
35	GEN WB56X1368
35	GEN WB56X1369
35	GEN WB56X1370
35	GEN WB02X3306
35	GEN WB56X1366
36	SPEEDNUT
37	TRIM PLATE
38	GEN WB02X3307
39	GEN WB02X2248
40	CAM LINK
42	GEN WB36X0430
43	GEN WB07X1031
44	GEN WB02X3282
45	GEN WB56X1386
45	GEN WB56X1387
45	GEN WB56X1388
45	GEN WB56X1389
45	GEN WB56X1390
45	GEN WB02X3424
46	GEN WB02X3310
47	GEN WB01X0439
48	WB1X500D GE Oven Screw Package
48	GEN WB09X0153
51	GEN WB55X0406
52	GEN WB02X3285
53	WB1X558D GE Oven Screw Package
54	GEN WB02X3212
54	GEN WB02X3314
55	GEN WB09X0154
56	COVER & GUARD ASM.
56	GEN WZ04X0289
57	GEN WB09X0128
58	WB2X3138 GE Oven Self-Clean Door Gasket
60	PANEL INNER
60	GEN WB01X0600
60	GEN WB02X3313
60	GEN WB02X2276
61	GASKET WINDOW
62	WZ4X345D GE Screw Package 12 C92
62	GEN WB36X0448
65	GEN WB49X0354
65	WB1X5364 GE Oven Mounting Screw
66	GEN WB02X3317
66	GEN WB02X3318
67	GEN WB55X0408
68	WZ5X158D GE Screw Package of 12
68	GEN WB02X3040
68	GEN WZ04X0238
69	GEN WB02X3319
69	GEN WB02X3320
70	GEN WB15X0152
71	GEN WB02X3322
72	GEN WZ05X0244
73	GEN WB02X3323
74	WB1X119D GE Oven Range Washer
75	GEN WZ04X0386
90	GEN WB56X1327
90	GEN WZ04
