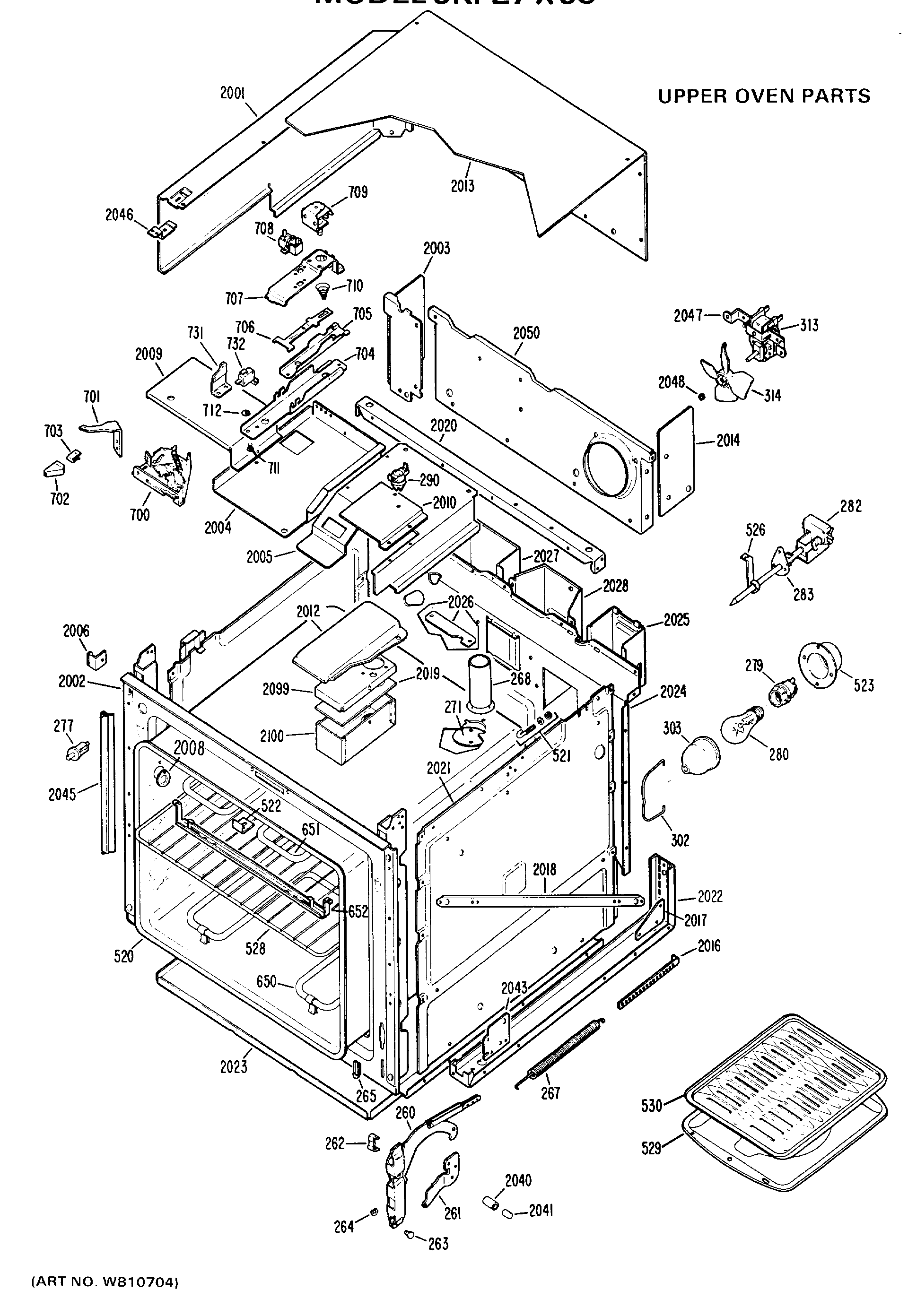

JKP27*J3 UPPER OVEN PARTS

Products

Position	Product
260	HINGE LEVER RH & LH
261	GEN WB10X0154
261	GEN WB10X0155
263	GEN WB02X6195
264	RING RETAINING
265	GEN WB02X3303
265	GEN WB02X1460
267	GEN WB09X0156
268	GEN WB29X5018
271	COVER VENT
277	SWITCH, OVEN LIGHT
279	WB08T10026 GE Range Push-In Receptacle
280	RANGE ONLY 40W 120V APPL BULB
282	GEN WB24X5226
282	GEN WB24X5164
283	GEN WB02X3164
283	GEN WB02X3163
290	GEN WB24X0199
302	GEN WB02X7694
314	GEN WB02X2001
520	GEN WB02X3417
520	GEN WB02X3471
520	GEN WB53X5123
520	PLUG BUTTON CAP TUBE
520	GEN WB02X1132
520	GEN WB02X2116
520	GEN WB53X5124
521	HOOK PACKAGE
522	GEN WB02X3393
523	GEN WB02X7693
526	GEN WB02X3165
528	GEN WB48X0082
530	WB48X10056 GE Broil Pan Set, Large Porcelain
650	WB44X200 GE Oven Self-Clean Bake Element
651	WB44X173 GE Range Broil Element
652	SUPPORT BROIL
700	GEN WB14X5036
701	GEN WB15X0150
702	GEN WB03X0434
703	RETAINER KNOB
704	GEN WB02X7717
705	GEN WB02X7718
706	PAWL LOCKING
707	GEN WB02X7716
708	GEN WB24X0183
709	GEN WB24X0197
710	GEN WB09X0148
711	GEN WB02X6212
712	RETAINER RING
731	GEN WB02X7719
732	GEN WB24X5238
2001	GEN WB55X0304
2001	GEN WB55X0305
2002	GEN WB56X6066
2003	GEN WB02X2858
2005	GEN WB59X0134
2006	GEN WB02X2104
2008	GEN WB02X3230
2009	GEN WB59X0165
2010	GEN WB02X3173
2012	GEN WB38X0075
2013	GEN WB49X0330
2014	GEN WB02X2847
2016	GEN WB02X3289
2018	GEN WB02X2401
2019	GEN WB02X3292
2020	GEN WB02X2083
2023	GEN WB55X0302
2024	GEN WB49X0327
2026	GEN WB02X2842
2027	GEN WB02X3156
2028	GEN WB49X0268
2040	GEN WB02X3305
2041	GEN WB02X3304
2045	GEN WB02X3422
2046	GEN WB02X3291
2047	GEN WB02X2846
2048	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
2050	SHIELD AIR
2099	GEN WB02X7714
2100	GEN WB02X7715
