JKP27BA2BB BODY PARTS

JKP27BA2BB BODY PARTS

Written by

in

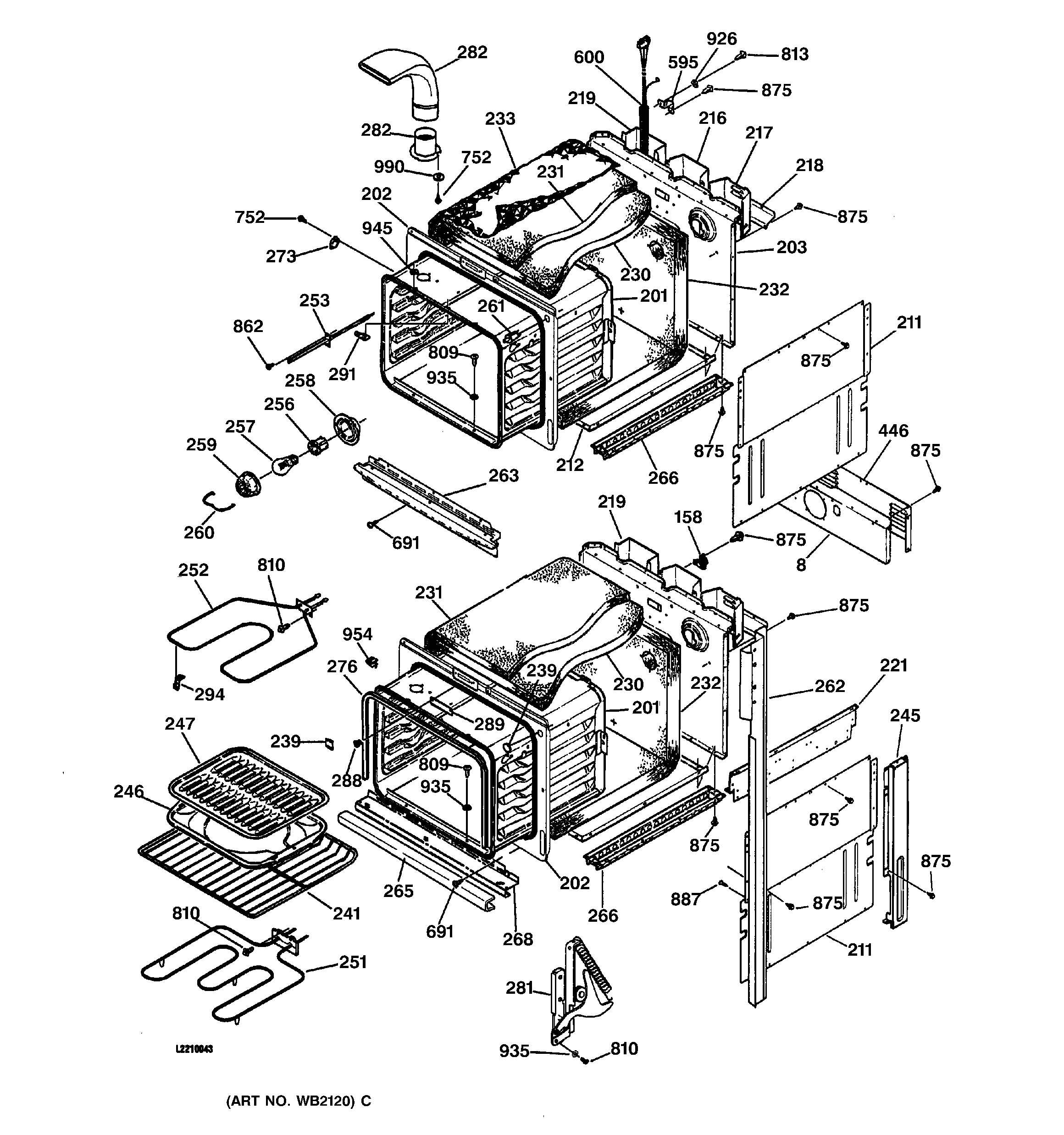

JKP27BA2BB BODY PARTS

Products

PositionProduct
8FAN SUPPORT-LOWER
8GEN WB02K5257
158WB24K5033 GE Oven Limit Switch
158GEN WB24K5029
201GEN WB63T10053
202GEN WB63T10036
203WB63K5167 GE Back Main
211WB63T10043 GE Cabinet Side
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34T10006
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
221BODY SIDE EXTENSION-LT
221BODY SIDE EXTENSION-RT
221GEN WB63K5174
230WB35K5041 GE Inner Wrap Insulation
230WB35K5048 GE Inner Wrapper Insulation
231INSULATION-OUTER-LOWER
231WB35K5068 GE Insulation Wrapper
232INSULATION BACK/BTM-LOW
232INSULATION BACK/BTTM-UPR
233GEN WB34K5080
239WB2X9189 GE Oven Plug – REC
239PLUG ROUND
241WB48T10093 GE Oven Range Rack
245GEN WB02K5139
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44T10064 GE Oven Bake Element
251WB44T10016 GE Oven Bake Element
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8K5029 GE Oven Lamp Holder
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24K5061
262VERT SIDE TRIM LT BLK
262VERT SIDE TRIM RT BLK
263GEN WB07T10077
265GEN WB07T10060
266WB63K5079 GE Rail Base
268GEN WB07T10059
273GEN WB02K5365
276GEN WB32K5019
281GEN WB10T10001
282GEN WB28K5010
282GEN WB28T10005
288GEN WB03K5043
289WB34K5068 GE Latch Opening Cover
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
446WB34K5089 GE Wire Center Cover
446GEN WB34T10005
595WB2K5126 GE Oven Condenser Clamp
600WB18X32567 GE Conduit Wire Assembly
691WB1K5162 GE Oven Black Screw
752WB1K5200 GE Oven Screw 340531
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
926GROUND WASHER
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
954THERMOSTAT BULB RET CLIP
990GEN WB01X1432
