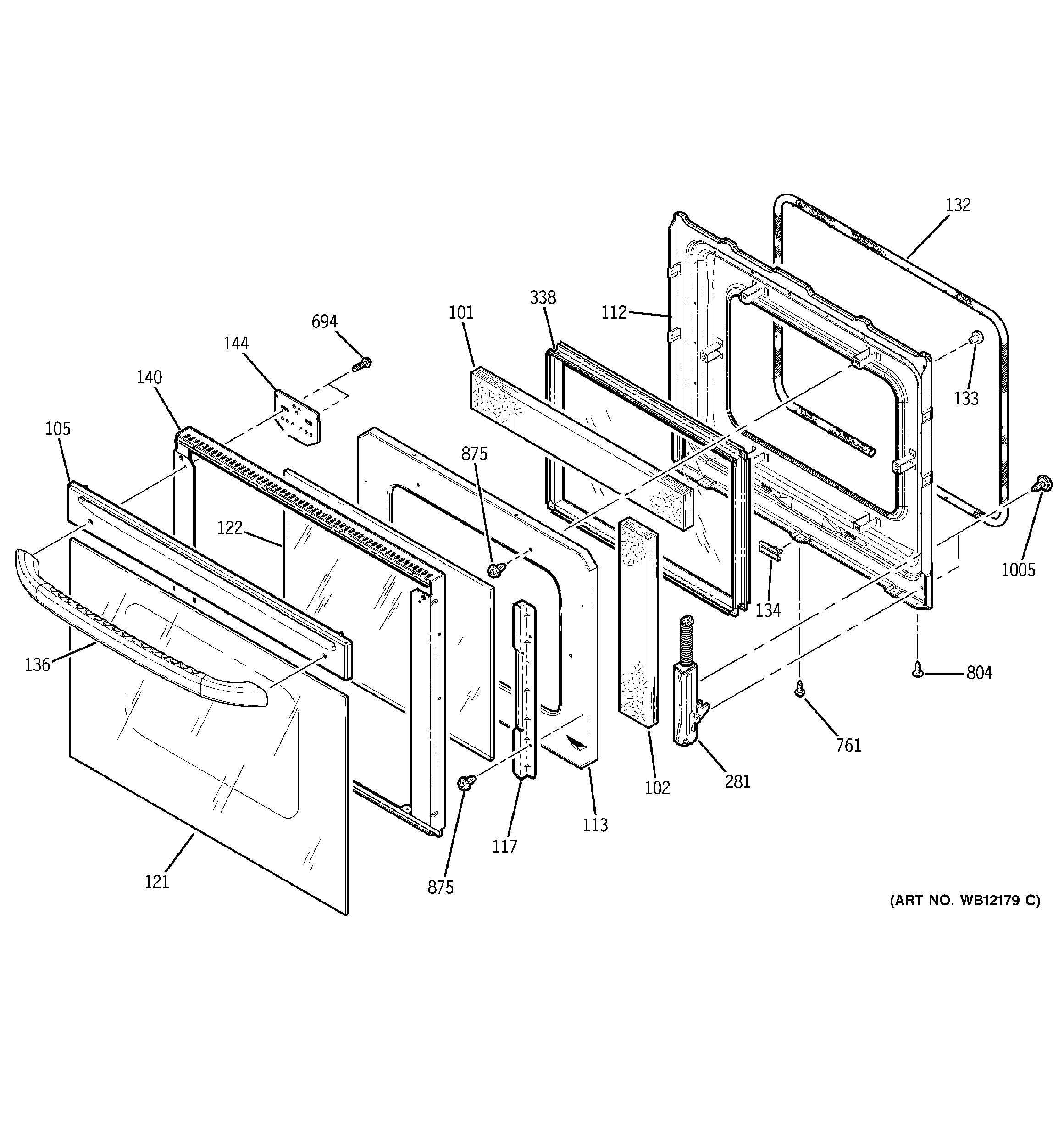

JKP27BD1BB UPPER DOOR

JKP27BD1BB UPPER DOOR

Written by

in

JKP27BD1BB UPPER DOOR

Products

PositionProduct
101GEN WB35T10062
102WB35T10061 GE Oven Door Insulation Side
105GEN WB07T10245
112OV DR LINER ASM-LOWER
112GEN WB55T10088
113WB56T10133 GE Oven Insulation Retainer
117WB56T10373 GE Oven Door Retainer Kit
121GEN WB55T10091
122GEN WB57T10185
132WB32T10010 OVEN DOOR GASKET
132OVEN DOOR GASKET-LOWER
133WB03T10156 GE Oven Door Bumper
134WB02T10117 GE Range Bottom Trim Clip
136GEN WB15T10045
140GEN WB55T10084
144WB2K5395 GE Oven Reinforcement Plate
281DOOR HINGE RT- LOWER
281GEN WB10T10018
281DOOR HINGE LT – LOWER
281GEN WB10T10017
338WB55T10086 GE Oven Window Assembly
694WB1K5157 GE Oven Black Screw
761WB1K5029 GE Oven Screw
804WB1X681 GE Oven Screw
875WH2X930 GE Screw
1005WB01T10008 GE Oven Screw 10-32
