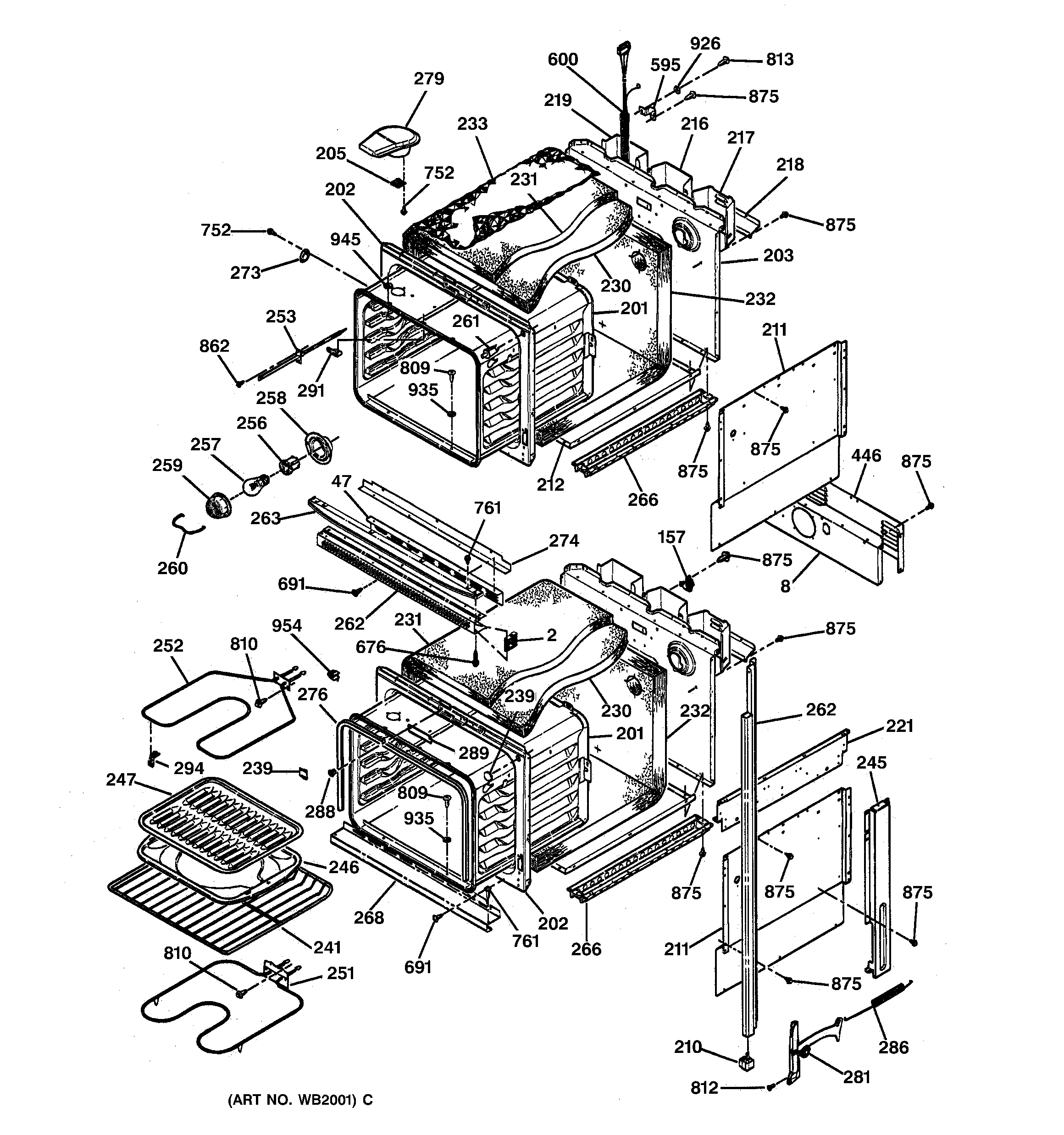

JKP27BW1BB BODY PARTS

JKP27BW1BB BODY PARTS

Written by

in

JKP27BW1BB BODY PARTS

Products

PositionProduct
2GEN WB36K5638
2GEN WB07K5442
2GEN WB36K5639
8FAN SUPPORT-LOWER
8GEN WB02K5257
157GEN WB24K5029
201GEN WB63K5086
202GEN WB63K5084
203WB63K5167 GE Back Main
205WB6K5026 GE Oven Smoke El Screw
210GEN WB07K5450
210GEN WB07K5451
211WB63T10043 GE Cabinet Side
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34K5070
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
221GEN WB63K5200
221GEN WB63K5201
221GEN WB63K5174
230WB35K5041 GE Inner Wrap Insulation
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
231INSULATION-OUTER-LOWER
232INSULATION BACK/BTM-LOW
232INSULATION BACK/BTTM-UPR
233GEN WB34K5080
239PLUG ROUND
239WB2X9189 GE Oven Plug – REC
241WB48T10093 GE Oven Range Rack
245GEN WB02K5139
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
256WB8K5029 GE Oven Lamp Holder
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24K5061
262VERT SIDE TRIM-LT-BLK
262VERT SIDE TRIM-RT-BLK
262GEN WB07K5481
263GEN WB07K5488
263GEN WB07K5440
266WB63K5079 GE Rail Base
268GEN WB07K5449
273GEN WB02K5365
274VENT TRIM EXTENSION-BLK
276GEN WB32K5019
279VENT BOX ASM-BLACK
281GEN WB14K5007
281GEN WB14K5006
286GEN WB09K5021
286OVEN DOOR SPRING-UPPER
288GEN WB03K5043
289WB34K5068 GE Latch Opening Cover
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
446WB34K5089 GE Wire Center Cover
595WB2K5126 GE Oven Condenser Clamp
600WB18X32567 GE Conduit Wire Assembly
676GEN WB01K5206
691WB1K5177 GE Oven Trim Screw
752WB1K5200 GE Oven Screw 340531
761WB1K5062 GE Oven Screw
761WB1K5029 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
862GEN WB01X1178
875WH2X930 GE Screw
926GROUND WASHER
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
954THERMOSTAT BULB RET CLIP
