JKP27BW2BB CONTROL PANEL

JKP27BW2BB CONTROL PANEL

Written by

in

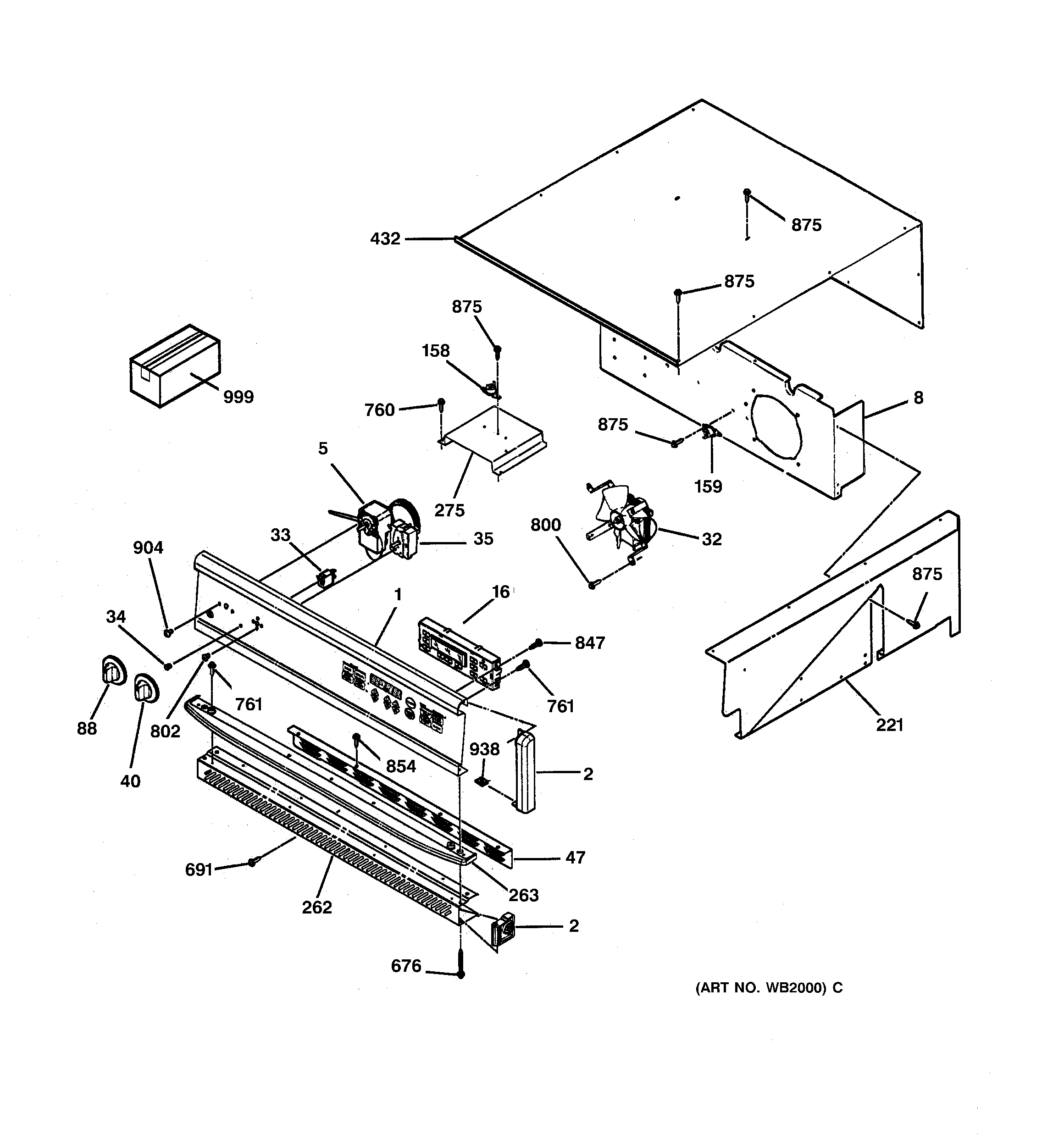

JKP27BW2BB CONTROL PANEL

Products

PositionProduct
1GEN WB36T10130
2GEN WB07K5442
2GEN WB36K5639
2GEN WB36K5638
5THERMOSTAT
8FAN SUPPORT-LOWER
8GEN WB02K5257
16GEN WB27K5299
32GEN WB26K5045
33WB25T10039 GE Oven Light Indicator
35GEN WB24K5040
40GEN WB03K5254
47WB38K5058 GE Vent Barrier
88GEN WB03K5253
158WB24K5033 GE Oven Limit Switch
159WB24K5085 GE Oven Limit Switch
221GEN WB63K5174
221BODY SIDE EXTENSION-LT
221BODY SIDE EXTENSION-RT
262GEN WB07K5481
262VERT SIDE TRIM-LT-BLK
262VERT SIDE TRIM-RT-BLK
263GEN WB07K5488
263GEN WB07K5440
275GEN WB34T10004
432GEN WB63K5094
676GEN WB01K5206
691WB1K5177 GE Oven Trim Screw
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
800WB1M1 GE Oven Screw
802GEN WB01K5123
847WB1X1118 GE Oven Screw 6-32T
854GEN WB01X1328
875WH2X930 GE Screw
904SCR 8/32 TF FLR 5/16 S
938WB1K5209 GE Oven Clip
999GEN 31-10200
999GEN 31-13326
999GEN 49-8706
