JKP27WP3WG 1

JKP27WP3WG 1

Written by

in

JKP27WP3WG 1

Products

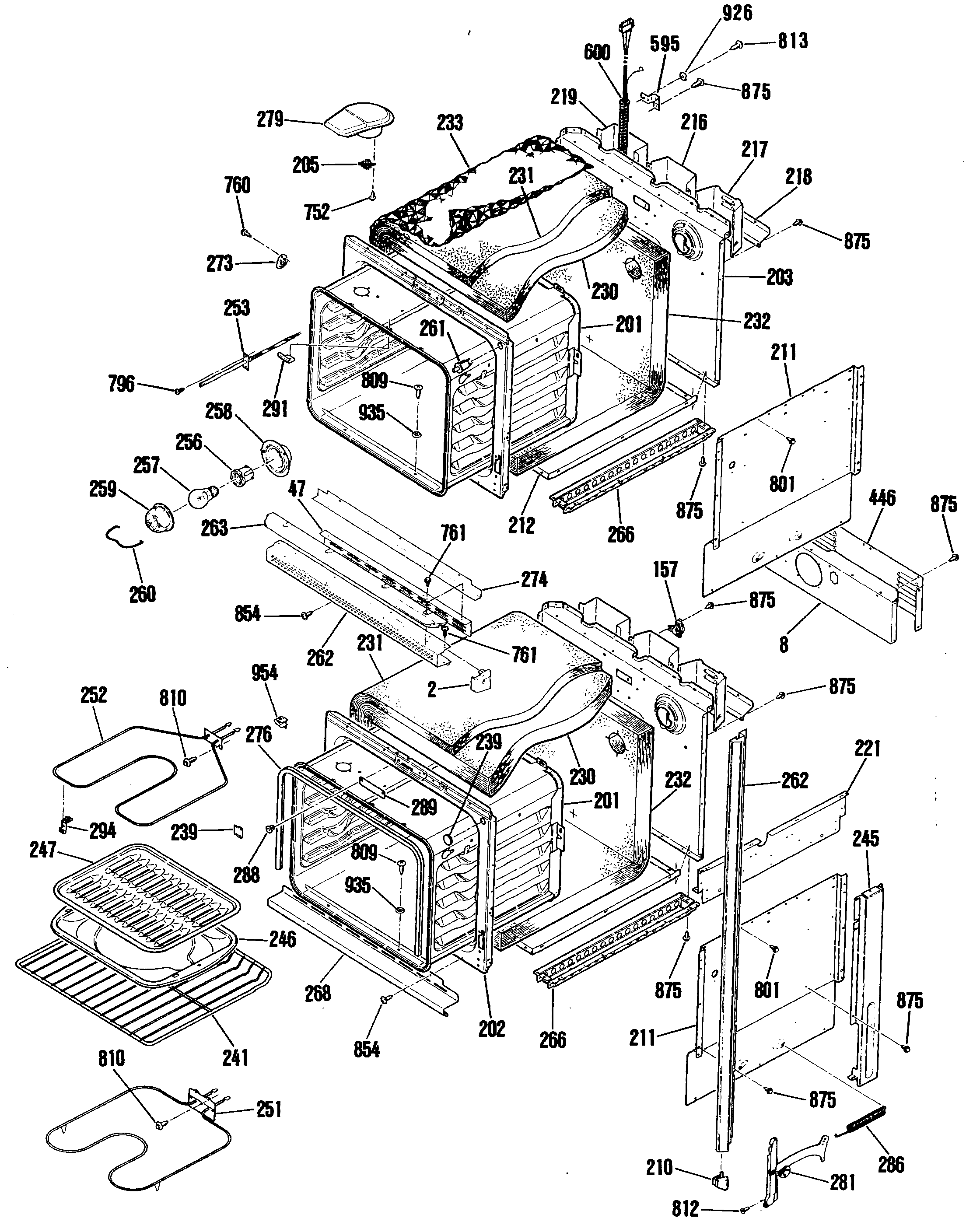

PositionProduct
2GEN WB36K5108
2GEN WB36K5107
8GEN WB02K5257
8FAN SUPPORT-LOWER
47WB38K5029 GE Oven Vent Barrier
157GEN WB24K5029
201GEN WB63K5086
202GEN WB63K5084
203GEN WB63K5078
205WB6K5026 GE Oven Smoke El Screw
210GEN WB07K5160
210GEN WB07K5161
211GEN WB63K5085
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34K5070
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
221SIDE EXTENSION-LT-UPPER
221SIDE EXTENSTION-RT-UPPER
221CAB SIDE EXTENSION-LOW
230WB35K5048 GE Inner Wrapper Insulation
230WB35K5041 GE Inner Wrap Insulation
231WB35K5068 GE Insulation Wrapper
231INSULATION-OUTER-LOWER
232INSULATION BACK/BTM-LOW
233GEN WB34K5080
239WB2X9189 GE Oven Plug – REC
241WB48T10093 GE Oven Range Rack
245GEN WB02K5139
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8K5029 GE Oven Lamp Holder
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24K5061
262WB7K5236 GE Oven Vent Trim
262GEN WB07K5205
262GEN WB07K5204
263TRIM-I BROW GRAY-UP
263TRIM-I BROW GRAY-LO
266WB63K5079 GE Rail Base
268GEN WB07K5183
273GEN WB02X3230
274GEN WB07K5094
276GEN WB32K5019
279VENT BOX ASM-BLACK
281GEN WB14K5007
281GEN WB14K5006
286OV DR SPRING-UPPER
286GEN WB09K5018
288GEN WB03K5043
289WB34K5068 GE Latch Opening Cover
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
446WB34K5089 GE Wire Center Cover
595WB2K5126 GE Oven Condenser Clamp
600WB18X32567 GE Conduit Wire Assembly
752GEN WB00X6542
760WB1X536 GE Oven Screw
761WB1K5062 GE Oven Screw
761WB1K5134 GE Gray Screw
796WB1K5116 GE Oven Screw
801WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
854GEN WB01X1328
854SCREW-BRT. NI.
875GEN WB01K5057
926GROUND WASHER
935GEN WB01X1201
954THERMOSTAT BULB RET CLIP
