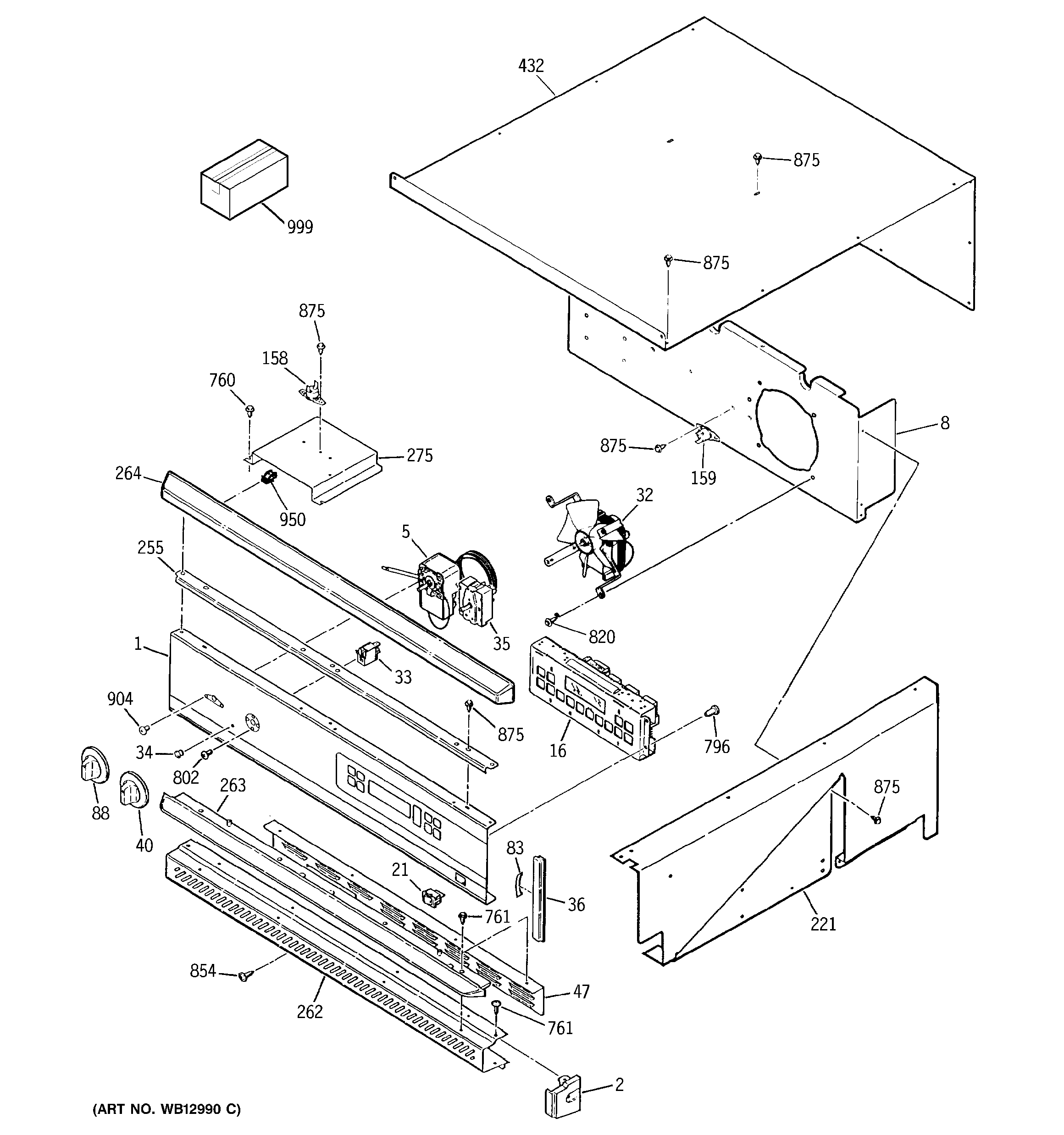

JKP27WT1WW CONTROL PANEL

JKP27WT1WW CONTROL PANEL

Written by

in

JKP27WT1WW CONTROL PANEL

Products

PositionProduct
1GEN WB36K5462
2GEN WB36K5107
2GEN WB36K5108
5THERMOSTAT
8GEN WB02K5257
8FAN SUPPORT-LOWER
16GEN WB27K5190
21GEN WB24K5036
32GEN WB26K5045
33WB25T10039 GE Oven Light Indicator
34LENS
35GEN WB24K5040
36GEN WB07K5055
36GEN WB07K5056
40GEN WB03K5053
47WB38K5029 GE Oven Vent Barrier
83GEN WB09K5008
88GEN WB03K5054
158GEN WB24K5029
159WB24K5085 GE Oven Limit Switch
221SIDE EXTENSION-LT-UPPER
221GEN WB63K5174
221SIDE EXTENSTION-RT-UPPER
255OVERLAY TRIM 27"-WHT
262WB7K5236 GE Oven Vent Trim
262GEN WB07K5205
262GEN WB07K5204
263TRIM-I BROW GRAY-LO
263TRIM-I BROW GRAY-UP
264GEN WB07K5199
275WB34K5078 GE Oven Vent Box Cover
432GEN WB63K5081
760WB1X536 GE Oven Screw
761WB1K5062 GE Oven Screw
761WB1K5134 GE Gray Screw
796WB1K5116 GE Oven Screw
802GEN WB01K5123
820WB1X1424D GE Oven Screw Package
854SCREW-BRT. NI.
854GEN WB01X1328
875WH2X930 GE Screw
904GEN WB01X5550
950CABLE CLIP
999GEN WB18K5210
999GEN 31-10119
999GEN 31-13175
999GEN 49-8568
999GEN WB18K5485
