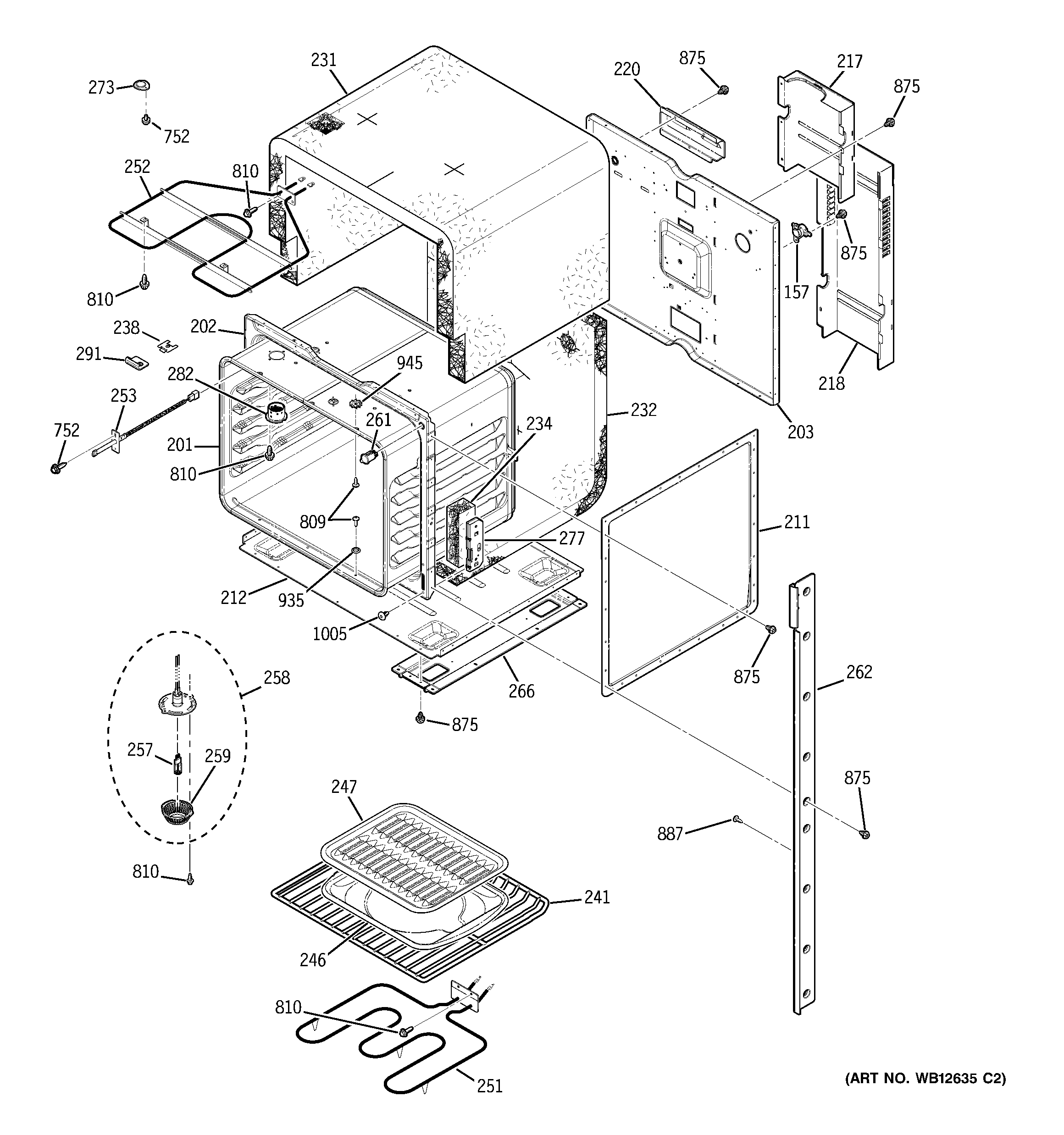

JKP28BF3BB UPPER BODY

JKP28BF3BB UPPER BODY

Written by

in

JKP28BF3BB UPPER BODY

Products

PositionProduct
157WB24T10082 GE Oven High Limit Upper Switch
157WB24T10081 GE Oven High Limit Thermostat
201GEN WB63T10088
202GEN WB63T10072
203GEN WB63T10087
211GEN WB63T10091
212WB63T10082 GE Bottom Insulation Retainer
217GEN WB34T10062
218GEN WB34T10063
218GEN WB34T10056
220GEN WB34T10061
231GEN WB35T10075
232GEN WB35T10076
234GEN WB10T10016
238GEN WB02T10228
241WB48T10027 GE Oven Rack
246WB48X10056 GE Broil Pan Set, Large Porcelain
251BAKE ELEMENT LWR
251WB44T10031 GE Oven Bake Element
252WB44T10051 GE Oven Broil Element
253WB21X22134 GE Oven Sensor Assembly
257WB08T10023 GE Oven Halogen Lamp 35W 130V
258GEN WB25T10025
259OV LAMP LENS LWR
261GEN WB24T10065
261GEN WB24T10111
262GEN WB07T10315
262GEN WB07T10314
266WB02K10048 GE Base Rail
273GEN WB02K5365
277GEN WB10T10046
282DUCT VNT INLET-UPR
282WB38X33650 GE Vent Tube
282WB28T10081 GE Lower Oven Vent Inlet Duct
291GEN WB02X9152
752WB1K5200 GE Oven Screw 340531
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
1005WB01T10008 GE Oven Screw 10-32
