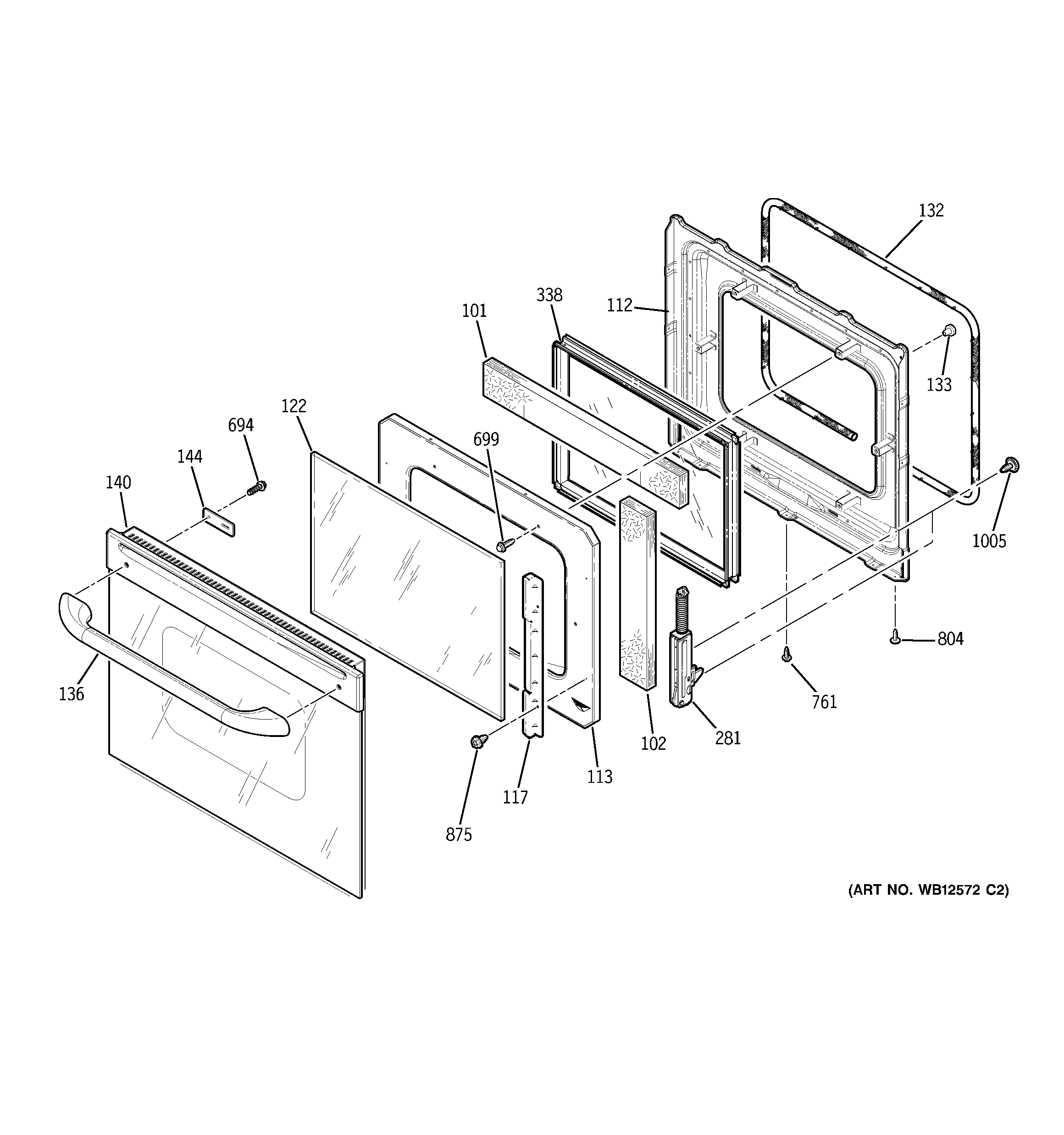

JKP28BF3BB UPPER DOOR

JKP28BF3BB UPPER DOOR

Written by

in

JKP28BF3BB UPPER DOOR

Products

PositionProduct
101GEN WB35T10062
102WB35T10061 GE Oven Door Insulation Side
112GEN WB55T10088
112OV DR LINER ASM-LOWER
113WB56T10133 GE Oven Insulation Retainer
117WB56T10373 GE Oven Door Retainer Kit
122GEN WB57T10185
132OVEN DOOR GASKET-LOWER
132WB32T10010 OVEN DOOR GASKET
133WB03T10156 GE Oven Door Bumper
133WB01T10022 GE Oven Door Bumper
133WB01T10052 GE Oven Foam Tape
136GEN WB15T10111
140WB57T10264 GE Oven Door Outer Assembly 27 (BK)
144GEN WB02T10147
281GEN WB10T10044
281GEN WB10T10052
281GEN WB10T10051
281GEN WB10T10045
338WB55T10086 GE Oven Window Assembly
694WB01T10066 GE Oven Screw 10-16 XC02
699WB1M1 GE Oven Screw
761WB1K5029 GE Oven Screw
804WB1X681 GE Oven Screw
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
1005WB01T10008 GE Oven Screw 10-32
