JKP28BF5BB LOWER OVEN

JKP28BF5BB LOWER OVEN

Written by

in

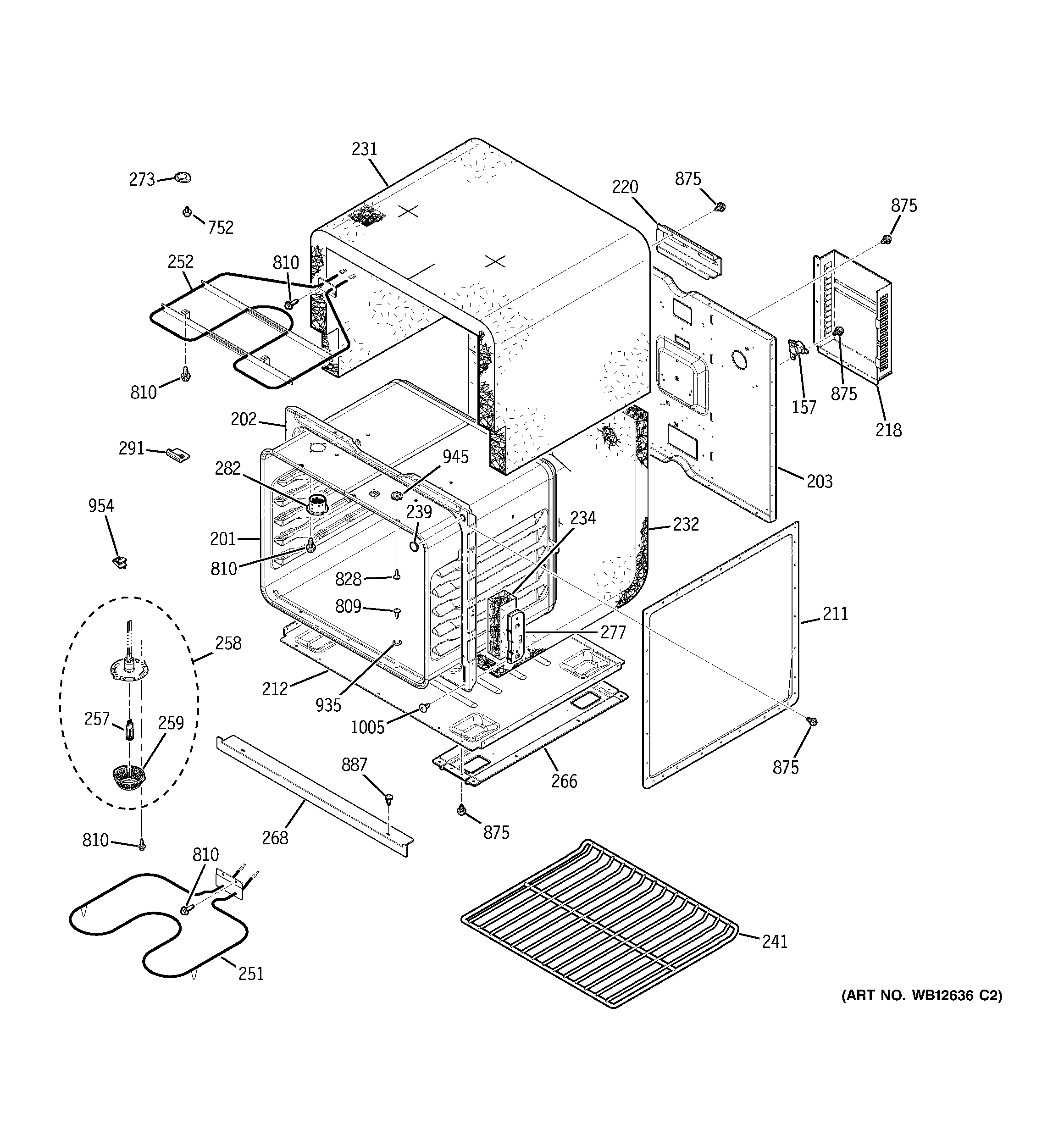

JKP28BF5BB LOWER OVEN

Products

PositionProduct
157WB24T10082 GE Oven High Limit Upper Switch
157WB24T10081 GE Oven High Limit Thermostat
201GEN WB63T10088
202GEN WB63T10072
203GEN WB63T10087
211GEN WB63T10091
212WB63T10082 GE Bottom Insulation Retainer
218GEN WB34T10063
218GEN WB34T10056
220GEN WB34T10061
231GEN WB35T10075
232GEN WB35T10076
234INSULATION WRAPPER
234GEN WB10T10016
239PLUG ROUND
241WB48T10027 GE Oven Rack
251BAKE ELEMENT LWR
251WB44T10031 GE Oven Bake Element
252WB44T10051 GE Oven Broil Element
257WB08T10023 GE Oven Halogen Lamp 35W 130V
258GEN WB25T10025
259OV LAMP LENS LWR
266WB02K10048 GE Base Rail
268GEN WB07T10376
273GEN WB02K5365
277GEN WB10T10076
282WB38X33650 GE Vent Tube
282WB28T10081 GE Lower Oven Vent Inlet Duct
282DUCT VNT INLET-UPR
291GEN WB02X9152
752WB1K5200 GE Oven Screw 340531
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
828WB1X1141 GE Oven Screw 8-32
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
954WB02K10073 GE Oven Clip Capillary
1005WB01T10008 GE Oven Screw 10-32
