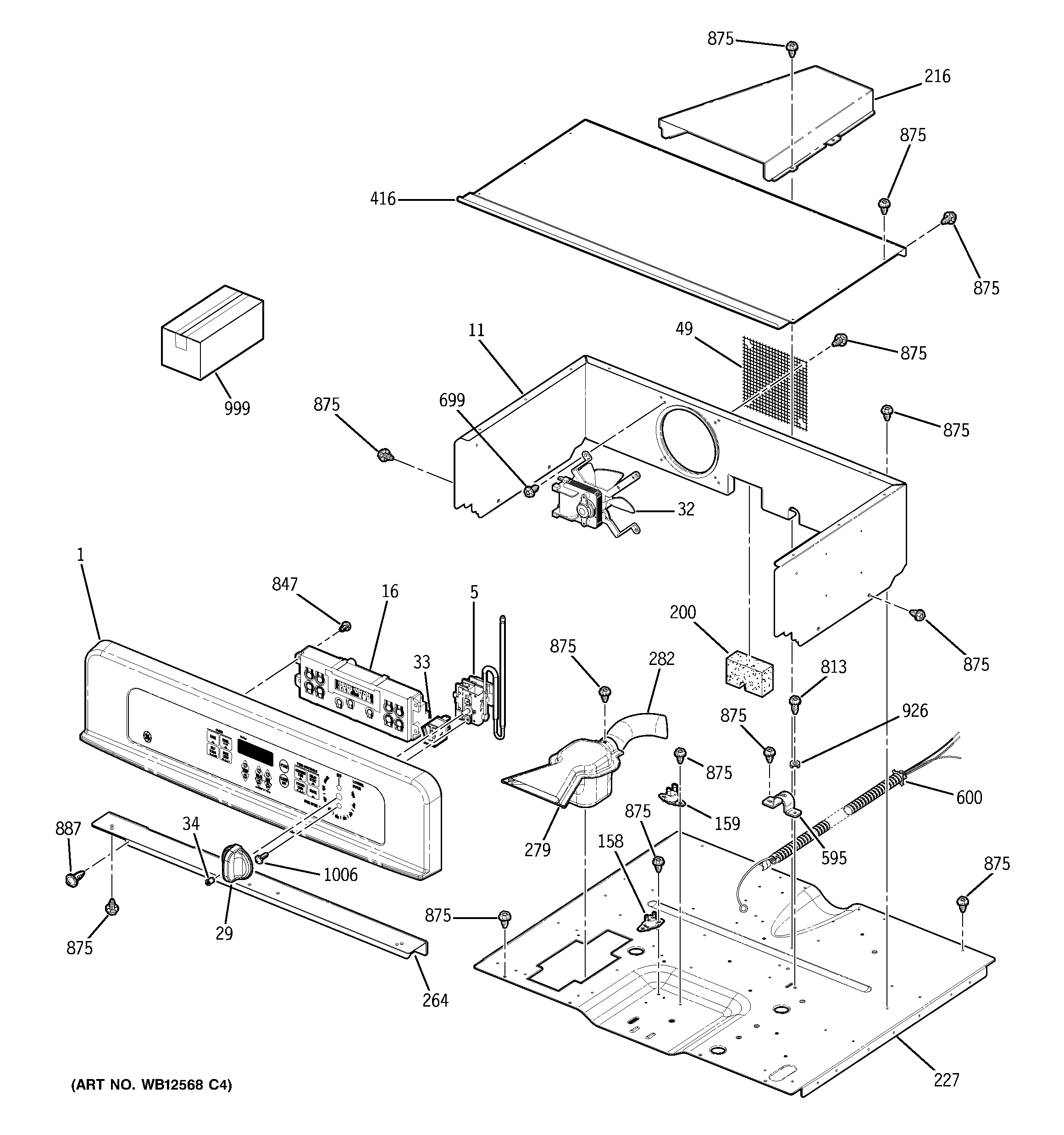

JKP28BF7BB CONTROL PANEL & COOKTOP

JKP28BF7BB CONTROL PANEL & COOKTOP

Written by

in

JKP28BF7BB CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB36T10993
5GEN WB20T10007
11GEN WB02T10158
16WB27T10409 GE Oven Control (ERC3B)
29GEN WB03T10057
32WB26K5061 GE Oven Upper Fan Assembly
33WB25T10039 GE Oven Light Indicator
34WB25T10043 GE Oven Lens
49WB34T10091 GE Oven Fan Screen
158GEN WB24T10076
159WB24T10060 GE Oven Safety Thermostat
200GEN WB02T10167
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10159
264GEN WB07T10307
279WB38T10019 GE Oven Vent Box Assembly
282WB38X33650 GE Vent Tube
282DUCT VNT INLET-UPR
282WB28T10081 GE Lower Oven Vent Inlet Duct
416GEN WB35T10060
595WB2K5126 GE Oven Condenser Clamp
600WB18T10225 GE Oven Wire Conduit Assembly
699WB1M1 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
926GROUND WASHER
999GEN 31-10514
999GEN 49-80341
999GEN 31-10551
999GEN 31-10523
1006SCR 8/32 TF FLR 5/16 S
