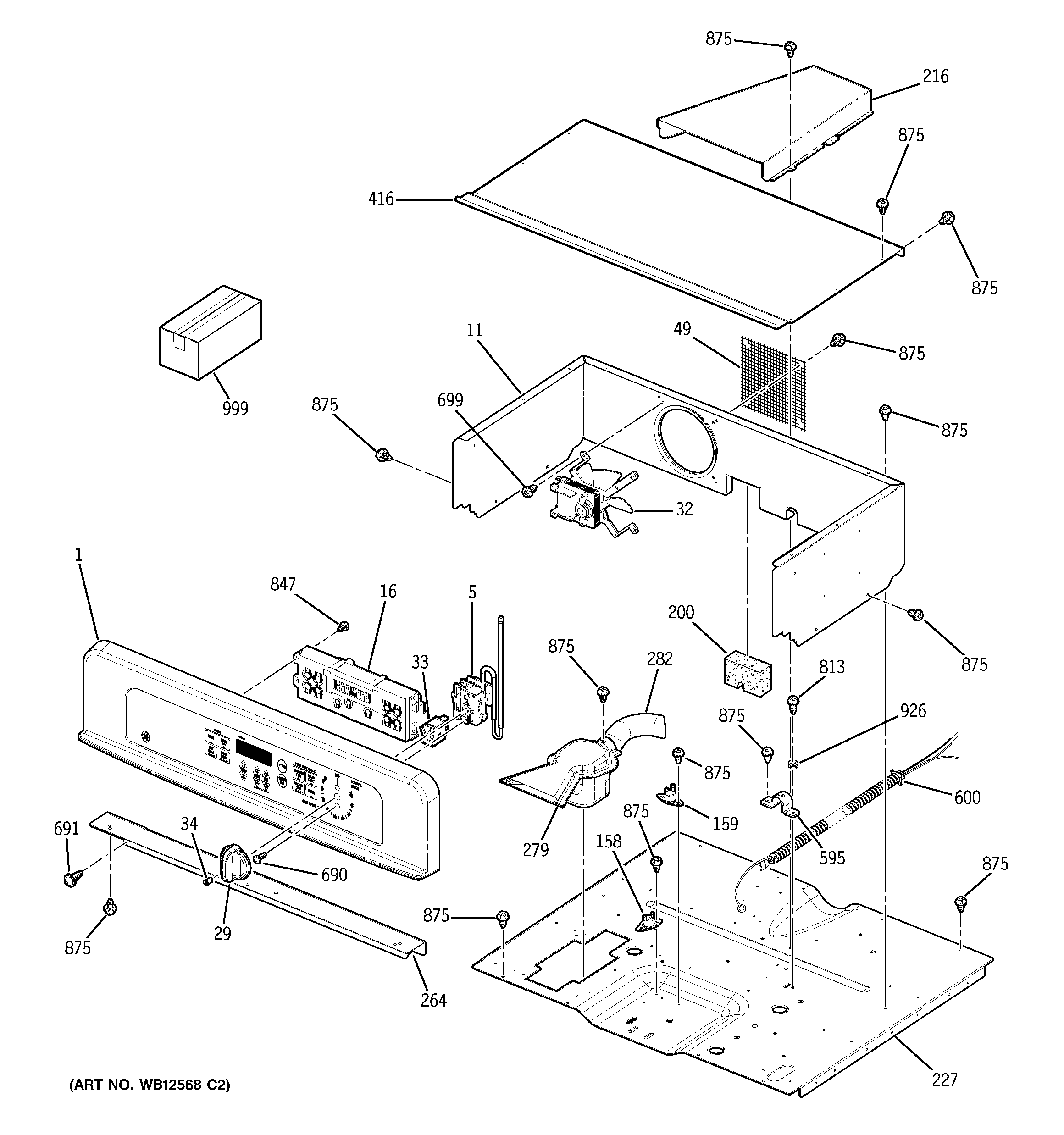

JKP28WF1WW CONTROL PANEL & COOKTOP

JKP28WF1WW CONTROL PANEL & COOKTOP

Written by

in

JKP28WF1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB36T10619
5GEN WB20T10003
11GEN WB36T10389
11GEN WB02T10158
16WB27T10409 GE Oven Control (ERC3B)
29GEN WB03T10058
32WB26T10018 GE Oven Fan Motor
33WB25T10039 GE Oven Light Indicator
49GEN WB34T10043
158GEN WB24T10076
159WB24T10060 GE Oven Safety Thermostat
200GEN WB02T10167
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10159
264GEN WB07T10310
264GEN WB07T10307
279WB38T10019 GE Oven Vent Box Assembly
282WB38X33650 GE Vent Tube
282WB28T10081 GE Lower Oven Vent Inlet Duct
282DUCT VNT INLET-UPR
416GEN WB35T10060
595WB2K5126 GE Oven Condenser Clamp
600WB18T10225 GE Oven Wire Conduit Assembly
690WB1K5167 GE Screw 8-18 X 3/8"
691GEN WB01K5163
699WB1M1 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
926GROUND WASHER
999GEN 31-10523
999GEN 31-10549
999GEN 49-80131
999GEN 31-14009
