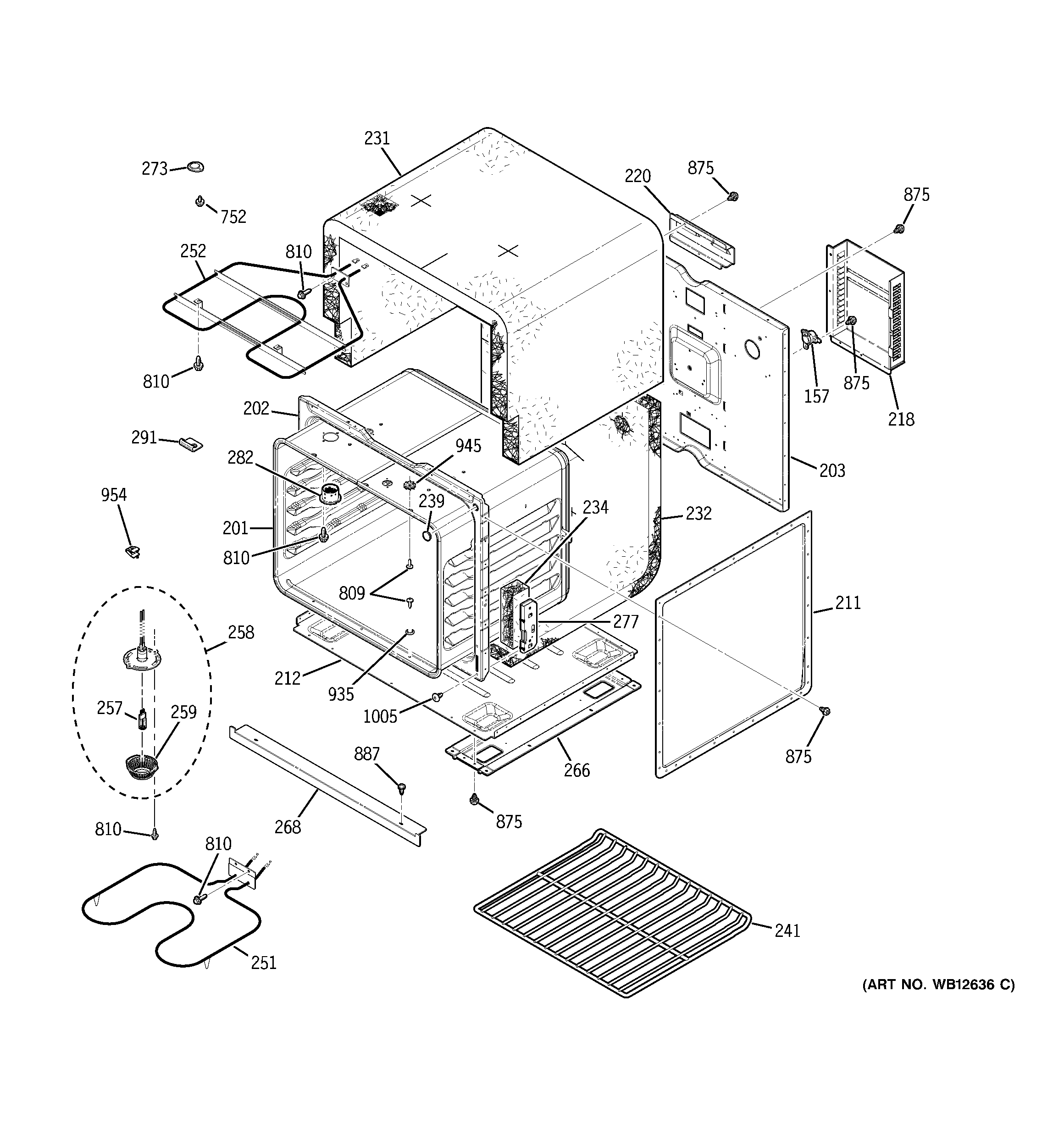

JKP28WF1WW LOWER BODY

JKP28WF1WW LOWER BODY

Written by

in

JKP28WF1WW LOWER BODY

Products

PositionProduct
157WB24T10081 GE Oven High Limit Thermostat
157WB24T10082 GE Oven High Limit Upper Switch
201GEN WB63T10090
202GEN WB63T10072
203GEN WB63T10087
211GEN WB63T10091
212WB63T10082 GE Bottom Insulation Retainer
218GEN WB34T10063
218GEN WB34T10056
220GEN WB34T10061
231GEN WB35T10075
232GEN WB35T10076
234GEN WB10T10016
239PLUG ROUND
241WB48T10027 GE Oven Rack
251WB44T10031 GE Oven Bake Element
251BAKE ELEMENT LWR
252WB44T10051 GE Oven Broil Element
257WB49X29679 GE Range Halogen Bulb Kit
258GEN WB25T10026
259WB25T10027 GE Oven Lens Lamp
266WB02K10048 GE Base Rail
268GEN WB07T10377
273GEN WB02K5365
277GEN WB10T10015
282WB38X33650 GE Vent Tube
282DUCT VNT INLET-UPR
282WB28T10081 GE Lower Oven Vent Inlet Duct
291GEN WB02X9152
752WB1K5200 GE Oven Screw 340531
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
887WB1K5172 GE Oven Screw
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
954THERMOSTAT BULB RET CLIP
1005WB01T10008 GE Oven Screw 10-32
