JKP30SP1SS CONTROL PANEL

JKP30SP1SS CONTROL PANEL

Written by

in

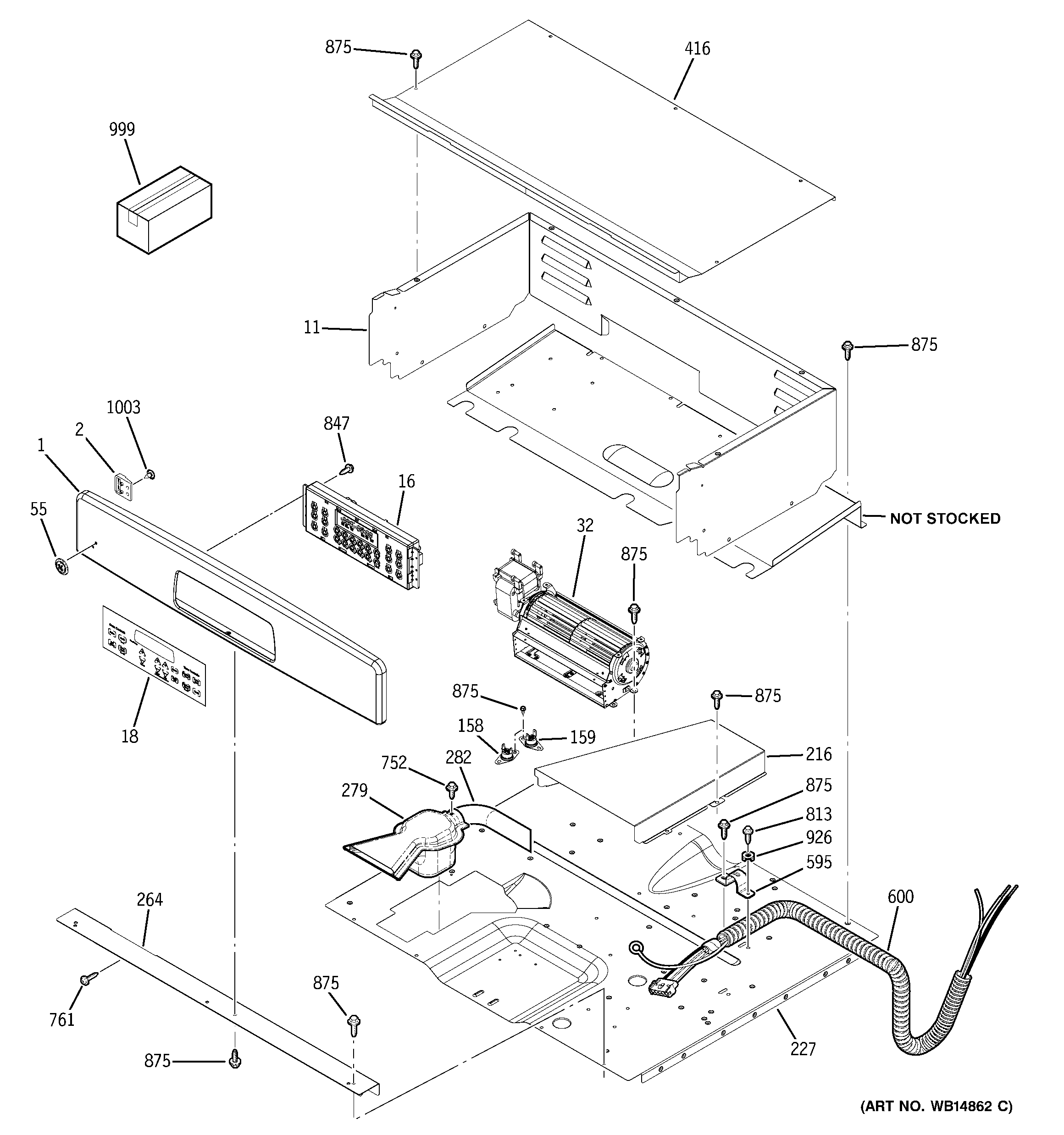

JKP30SP1SS CONTROL PANEL

Products

PositionProduct
1WB36T11272 GE Oven Panel and Bracket Assembly
2GEN WB02T10376
11WB02T10362 GE Fan Housing
16GEN WB27T11162
18GEN WB27T11230
32GEN WB26T10060
55WB02T10359 GE Oven Badge
158WB24T10144 GE Oven Limit Switch
159WB24K5085 GE Oven Limit Switch
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10356
264WB07T10539 GE Trim Vent
279WB38T10019 GE Oven Vent Box Assembly
282WB28T10213 GE Vent Tube Assembly
282WB28T10212 GE Inlet Duct Vent
416WB02T10363 GE Electrical Top Cover
595WB2K5126 GE Oven Condenser Clamp
600WB18T10447 GE Oven Wire Conduit Assembly
600GEN WB18T10221
752WB1K5200 GE Oven Screw 340531
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
926GROUND WASHER
999GEN 31-14790
999INSTR INSTALL OVN DOOR
999GEN 49-80584
999GEN 31-10730
1003GEN WB01T10019
