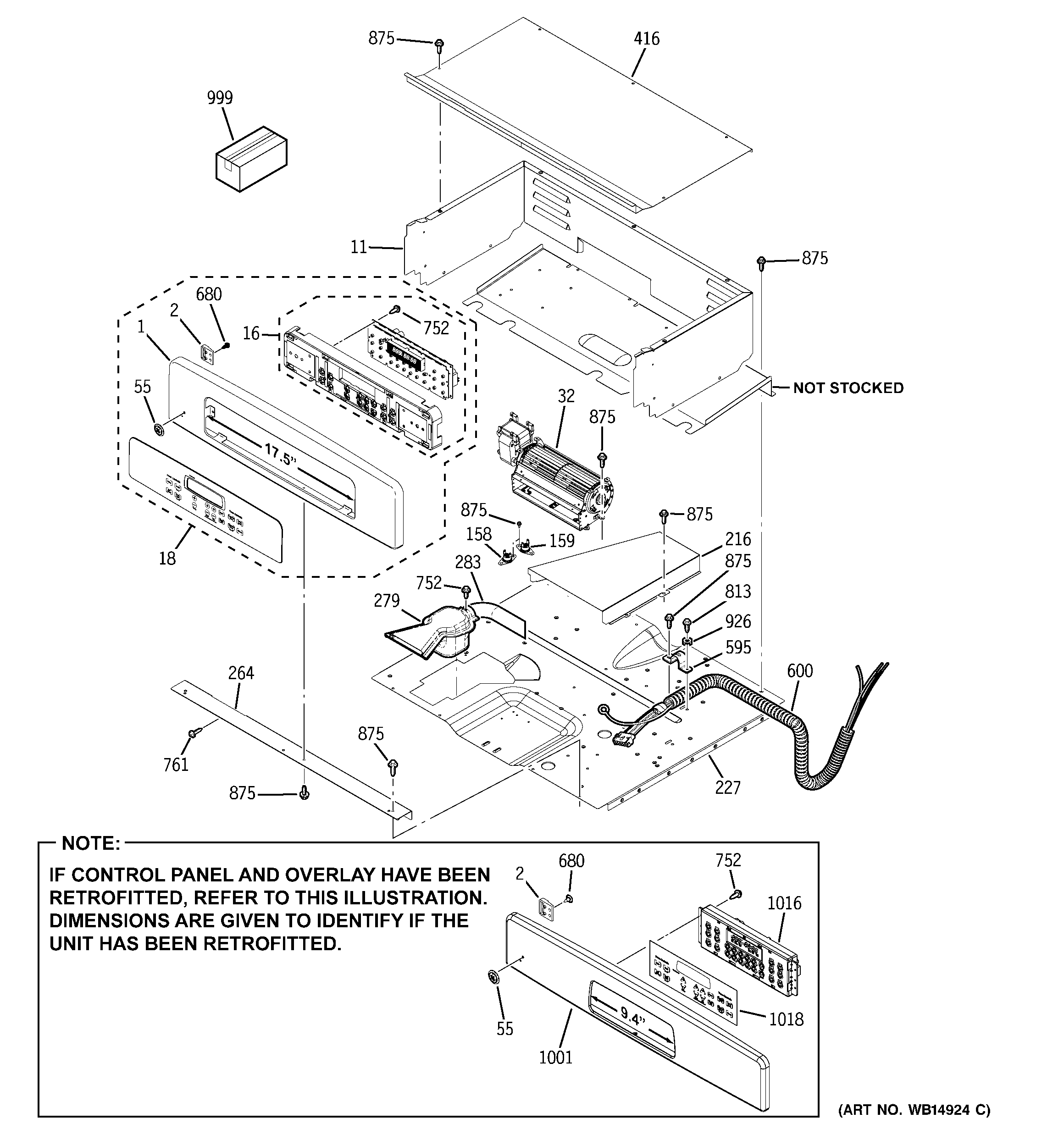

JKP30WM2WW CONTROL PANEL

JKP30WM2WW CONTROL PANEL

Written by

in

JKP30WM2WW CONTROL PANEL

Products

PositionProduct
1GEN WB36T11017
1GEN WB36T11018
2GEN WB02T10376
11WB02T10362 GE Fan Housing
16GEN WB27T10912
18GEN WB49T10023
18GEN WB49T10021
32GEN WB26T10057
55WB02T10359 GE Oven Badge
158WB24T10144 GE Oven Limit Switch
159WB24K5085 GE Oven Limit Switch
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10356
264WB07T10539 GE Trim Vent
279WB38T10019 GE Oven Vent Box Assembly
283WB28T10212 GE Inlet Duct Vent
416WB02T10363 GE Electrical Top Cover
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18T10221
600WB18T10447 GE Oven Wire Conduit Assembly
680WR1X1850 GE Refrigerator Screw
752WB1K5200 GE Oven Screw 340531
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
926GROUND WASHER
999GEN 31-14519
999INSTR INSTALL OVN DOOR
999GEN 49-80584
999GEN 49-80429
999GEN 31-10730
999GEN 31-10647
1001GEN WB36T11271
1001GEN WB36T11270
1016GEN WB27T11162
1018WB27T11231 GE Oven Faceplate
1018WB27T11232 GE Oven Faceplate
