JKP35DP4BB CONTROL PANEL

JKP35DP4BB CONTROL PANEL

Written by

in

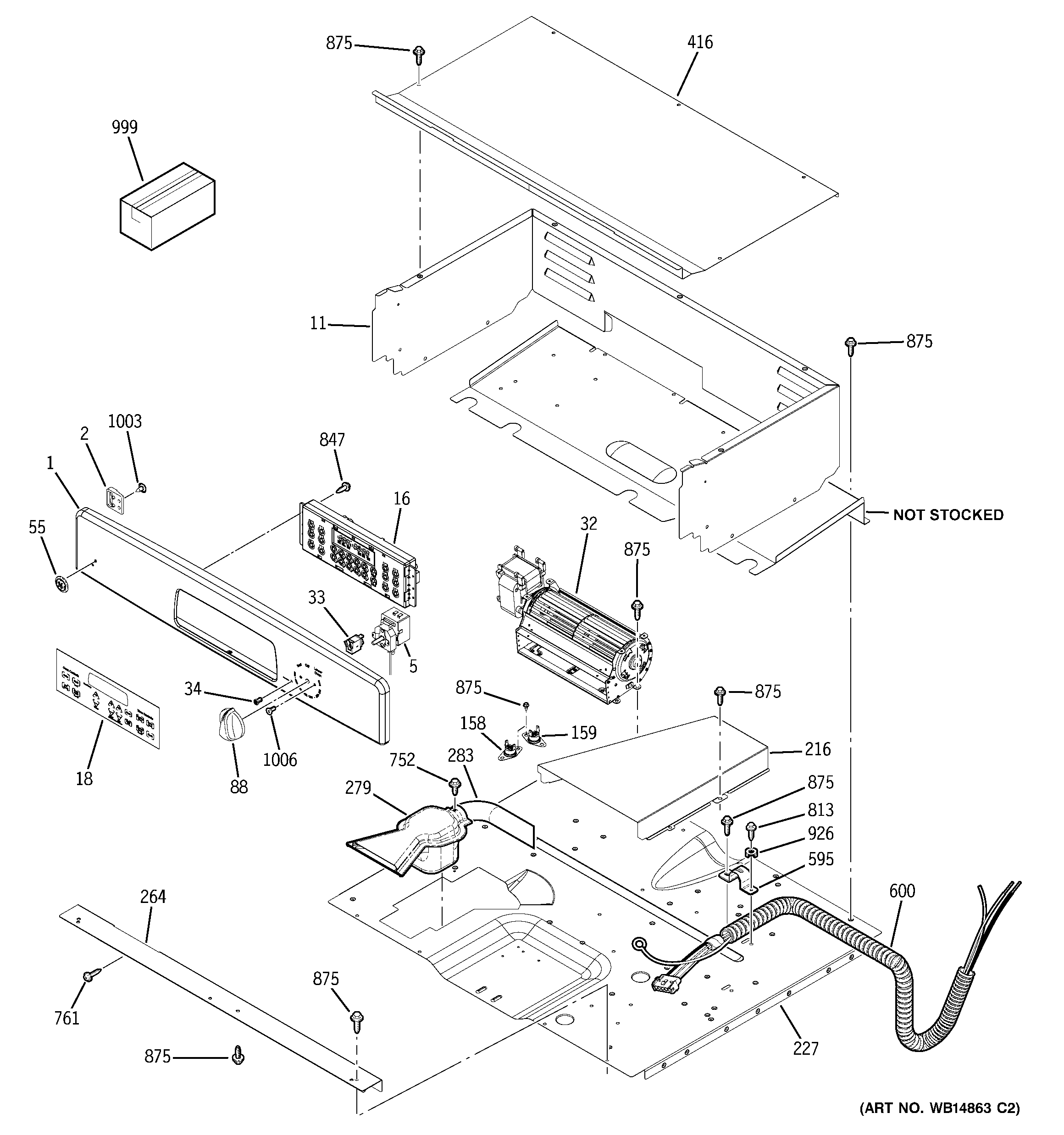

JKP35DP4BB CONTROL PANEL

Products

PositionProduct
1GEN WB36T11274
1GEN WB36T11273
2GEN WB02T10376
5WB20T10026 GE Oven Thermostat
11WB02T10362 GE Fan Housing
16GEN WB27T11162
18WB27T11229 GE Oven Faceplate
18WB27T11231 GE Oven Faceplate
32GEN WB26T10060
33WB25T10040 GE Oven Light Indicator
34WB25T10043 GE Oven Lens
55WB02T10359 GE Oven Badge
88GEN WB03T10302
88GEN WB03T10303
158WB24T10080 GE Oven Bake Thermostat
159WB24T10096 GE Oven Limit Bimetal Switch
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10356
264WB07T10539 GE Trim Vent
279WB38T10019 GE Oven Vent Box Assembly
283WB28T10081 GE Lower Oven Vent Inlet Duct
283WB28T10212 GE Inlet Duct Vent
416WB02T10363 GE Electrical Top Cover
595WB2K5126 GE Oven Condenser Clamp
600WB18T10448 GE Oven Wire Conduit Assembly
600WB18T10225 GE Oven Wire Conduit Assembly
752WB1K5200 GE Oven Screw 340531
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB1M1 GE Oven Screw
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
926GROUND WASHER
999GEN 31-14795
999GEN 49-80619
999INSTR INSTALL OVN DOOR
999GEN 31-10730
1003WB1K5162 GE Oven Black Screw
1006SCR 8/32 TF FLR 5/16 S
