JKP35SM3SS CONTROL PANEL

JKP35SM3SS CONTROL PANEL

Written by

in

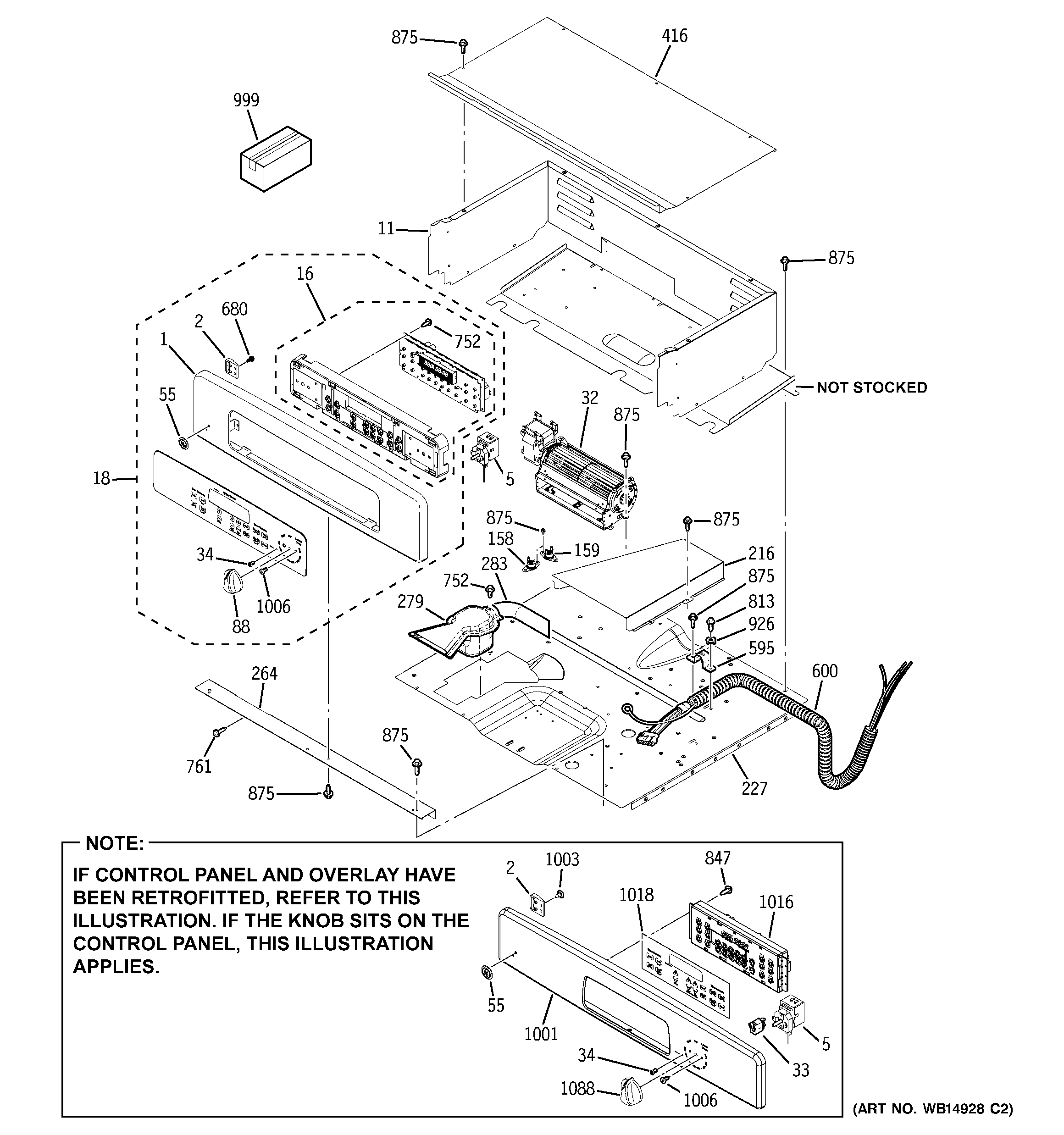

JKP35SM3SS CONTROL PANEL

Products

PositionProduct
1GEN WB36T11016
2GEN WB02T10376
5WB20T10026 GE Oven Thermostat
11WB02T10362 GE Fan Housing
16GEN WB27T10912
18GEN WB49T10054
32GEN WB26T10057
33WB25T10040 GE Oven Light Indicator
34WB25T10043 GE Oven Lens
55WB02T10359 GE Oven Badge
88GEN WB03T10279
158WB24T10080 GE Oven Bake Thermostat
159WB24T10096 GE Oven Limit Bimetal Switch
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10356
264WB07T10539 GE Trim Vent
279WB38T10019 GE Oven Vent Box Assembly
283WB28T10212 GE Inlet Duct Vent
283WB28T10081 GE Lower Oven Vent Inlet Duct
416WB02T10363 GE Electrical Top Cover
595WB2K5126 GE Oven Condenser Clamp
600WB18T10225 GE Oven Wire Conduit Assembly
600WB18T10448 GE Oven Wire Conduit Assembly
680WR1X1850 GE Refrigerator Screw
752WB1K5200 GE Oven Screw 340531
761WB1K5029 GE Oven Screw
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
813WB1X1261 GE Oven Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WH2X930 GE Screw
926GROUND WASHER
999GEN 31-14534
999GEN 49-80598
999GEN 49-80584
999GEN 49-80429
999GEN 31-10730
999GEN 31-10744
999INSTR INSTALL OVN DOOR
999GEN 31-10647
1001GEN WB36T11275
1003WZ4X245D GE Screw Package
1006SCR 8/32 TF FLR 5/16 S
1016GEN WB27T11162
1018WB27T11229 GE Oven Faceplate
1088GEN WB03T10304
