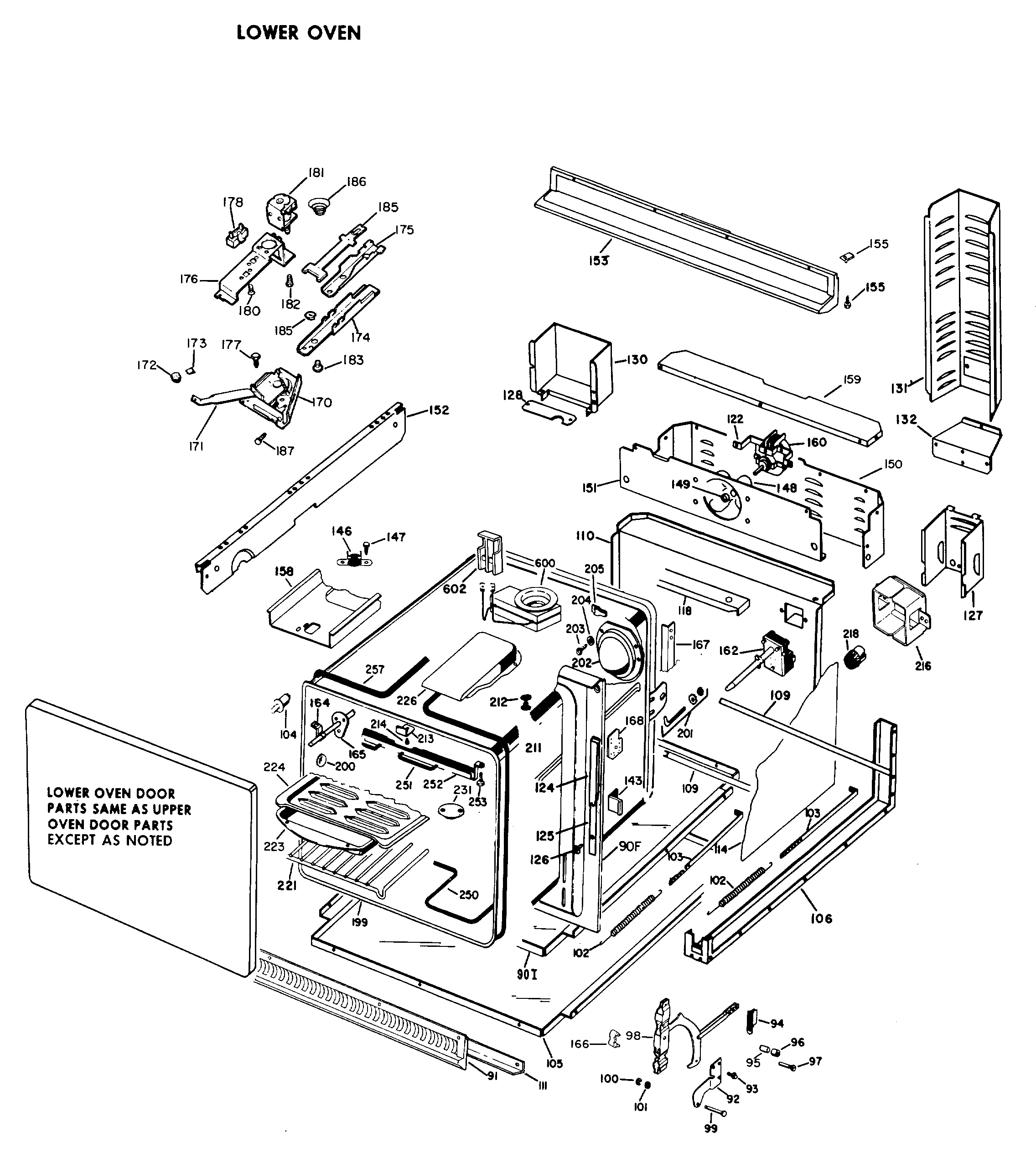

JKP36G*09 LOWER OVEN

JKP36G*09 LOWER OVEN

Written by

in

JKP36G*09 LOWER OVEN

Products

PositionProduct
91GEN WZ04X0237
91GEN WB07X0636
92GEN WB10X0154
92GEN WB10X0155
93GEN WZ06X0086
94GEN WB02X3303
95GEN WB02X3305
96GEN WB02X3304
97GEN WB01X0524
98HINGE LEVER RH & LH
99GEN WB02X6195
100RING RETAINING
101GEN WZ10X0017
102GEN WB09X0156
103GEN WB02X3289
104GEN WB02X3421
104SWITCH, OVEN LIGHT
105GEN WB55X0302
106GEN WB59X0163
109GEN WB02X2401
110GEN WB49X0327
111GEN WB02X2082
111GEN WB02X3425
114GEN WB59X0164
118GEN WB02X2083
122SCREW MT. MOTOR BRKT.
122GEN WB02X2846
124GEN WB02X3422
127GEN WB02X2845
128GEN WB02X2842
131GEN WB49X0268
132GEN WB49X0223
143GEN WB02X2104
146GEN WB24X0199
147WZ4X345D GE Screw Package 12 C92
148GEN WB02X2911
149WR60X114 GE Refrigerator Evaporator Motor Fan Blade
150GEN WB49X0269
151GEN WB49X0275
152GEN WB49X0382
153GEN WB07X1125
153GEN WB49X0355
155WB1X537 GE Oven Screw
158CHANNEL AIR
159GEN WB49X0357
160GEN WB26X5052
160GEN WB02X1409
162GEN WB24X0175
164GEN WB02X3165
165GEN WB02X3163
165GEN WB02X3164
166SHIM
167ANGLE REAR
168SUPPORT DOUBLE OVEN
170LATCH
171HANDLE LATCH
171GEN WB15X0150
172GEN WB03X0434
173RETAINER KNOB
174GEN WB02X3157
175GEN WB02X3158
176PLATE MOUNTING
176WB1X536 GE Oven Screw
177GEN WZ04X0396
178GEN WB02X3426
178GEN WB24X0183
180GEN WZ04X0297
181GEN WB24X5096
181GEN WB24X0197
182SCREW & WASHER ASM
182SCREW MTG. SOLENOID
183GEN WB02X6212
185GEN WB02X3159
186GEN WB09X0148
187WZ2X464D GE Screw
199GEN WB02X2116
199GEN WB02X3471
199PLUG BUTTON CAP TUBE
199GEN WB53X0252
199GEN WB01X0422
199GEN WB02X3230
201HOOK PACKAGE
202WB36X192 GE Oven Light Cover
203GEN WZ04X0292
204WB1X119D GE Oven Range Washer
205SPEEDNUT
213GEN WB02X3393
216GEN WB02X3466
218GEN WB08X0191
221GEN WB48X0082
224WB48X10056 GE Broil Pan Set, Large Porcelain
226GEN WB38X0075
231COVER VENT
250WB44X200 GE Oven Self-Clean Bake Element
251WB44X173 GE Range Broil Element
251GASKET BROIL UNIT
251GEN WZ04
