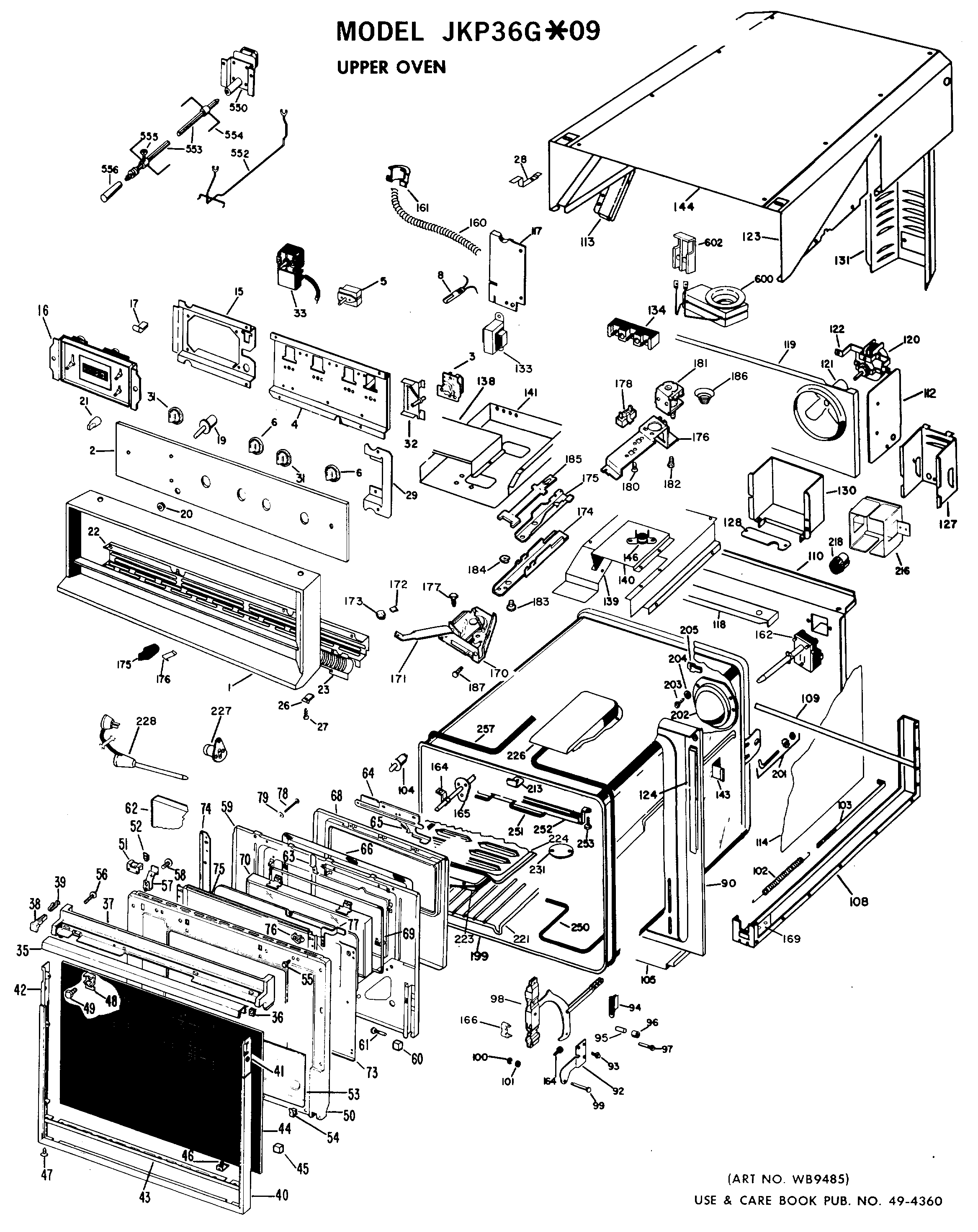

JKP36G*09 UPPER OVEN

JKP36G*09 UPPER OVEN

Written by

in

JKP36G*09 UPPER OVEN

Products

Position	Product
1	GEN WB07X1123
1	GEN WB07X1122
1	SPACER, NOSE
1	SCREW, MTG. NOSE
2	GEN WB36X0536
3	CIRCUIT BOARD ASM THERMO
3	SCR 6-20 AB HXW 1/4 S
4	GEN WB02X3453
4	GEN WB01X5220
5	GEN WB22X5082
5	OVEN SWITCH
6	GEN WB03X0483
6	GEN WB03X0462
8	GEN WB02X3468
8	NEON LAMP 118V
15	GEN WB01X0239
15	GEN WB02X3405
16	NUT
16	WB19X10006 GE Oven Clock
17	GEN WB02X2006
19	GEN WB24X0200
20	GEN WB02X3429
21	GEN WB03X0459
22	GEN WB02X1973
23	GEN WB07X0635
26	GEN WB02X1119
27	SCREW – MT. TRIM
28	GEN WZ04X0369
28	GEN WZ04X0372
28	GEN WB02X3291
29	GEN WB02X2407
31	GEN WB03X0482
31	GEN WB03X0463
32	FACEPLATE & SHAFT ASM
33	GEN WB02X3178
33	GEN WB24X0176
33	SLEEVE (LONG)
33	GEN WB24X0184
33	GEN WB02X6274
33	GEN WB02X6937
33	SCR 8-32 M PHR 3/16 S
35	GEN WB15X0153
36	SPEEDNUT – GRIP (4)
37	GEN WB07X1151
38	GEN WB02X3337
39	GEN WB09X0157
40	GEN WB07X1150
40	GEN WB07X1152
41	GEN WB02X3334
42	GEN WB02X3335
43	GEN WB02X3336
44	GEN WB36X0557
46	GEN WB02X3333
48	GEN WB02X3331
50	GEN WB55X0419
51	GEN WB02X3310
52	GEN WB01X0439
53	GEN WB36X0540
54	GEN WB02X3332
56	SCREW MT. GRIP (4)
57	GEN WB09X0153
59	GEN WB55X0406
60	GEN WB02X3285
61	WB1X558D GE Oven Screw Package
62	GEN WB02X3314
62	GEN WB02X3312
63	GEN WB09X0154
64	WB1X500D GE Oven Screw Package
64	COVER & GUARD ASM.
65	GEN WB09X0128
66	WB2X3138 GE Oven Self-Clean Door Gasket
67	GEN WB02X3316
67	GEN WZ04X0238
68	PANEL INNER
68	GEN WB02X3313
68	GEN WB01X0600
68	GEN WB02X2276
69	GASKET WINDOW
70	WZ4X345D GE Screw Package 12 C92
70	GEN WB36X0448
73	WB1X5364 GE Oven Mounting Screw
73	GEN WB49X0354
74	GEN WB02X3317
74	GEN WB02X3318
75	GEN WB55X0408
76	WZ5X158D GE Screw Package of 12
76	GEN WB02X3040
76	GEN WB04X0238
77	GEN WB02X3320
77	GEN WB02X3319
78	GEN WZ04X0386
79	WB1X119D GE Oven Range Washer
90	GEN WB56X1327
92	GEN WB10X0154
92	GEN WB10X0155
93	GEN WZ06
