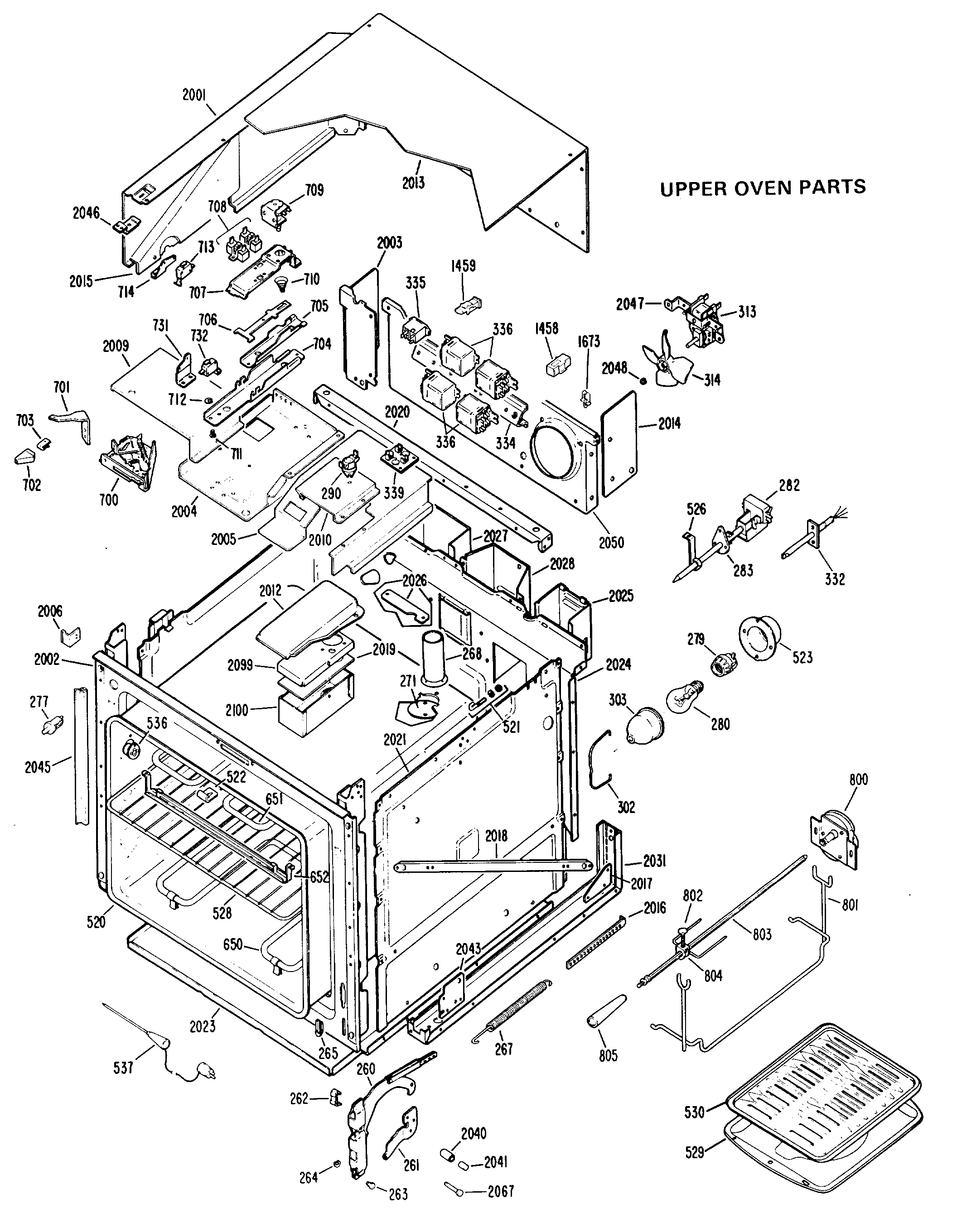

JKP48G*K1 UPPER OVEN PARTS

JKP48G*K1 UPPER OVEN PARTS

Written by

in

JKP48G*K1 UPPER OVEN PARTS

Products

Position	Product
260	HINGE LEVER RH & LH
261	GEN WB10X0155
261	GEN WB10X0154
263	GEN WB02X6195
264	RING RETAINING
265	GEN WB02X3303
267	GEN WB09X0156
268	GEN WB29X5018
271	COVER VENT
277	SWITCH, OVEN LIGHT
279	WB08T10026 GE Range Push-In Receptacle
280	RANGE ONLY 40W 120V APPL BULB
282	GEN WB24X5164
282	GEN WB02X7290
283	GEN WB02X3164
283	GEN WB02X3163
290	GEN WB24X0199
302	GEN WB02X7694
303	WB36X192 GE Oven Light Cover
313	GEN WB26X5052
314	GEN WB02X2001
314	GEN WB02X2911
332	SENSOR ASM
334	GEN WB02X3481
335	GEN WB21X5222
336	GEN WB21X5256
339	GEN WB27X5217
520	GEN WB53X5125
520	GEN WB02X2116
520	GEN WB02X1925
521	HOOK PACKAGE
522	GEN WB02X3393
523	GEN WB02X7693
526	GEN WB02X3165
528	GEN WB48X0082
530	WB48X10056 GE Broil Pan Set, Large Porcelain
536	GEN WB20X0055
537	GEN WB20X0061
650	WB44X200 GE Oven Self-Clean Bake Element
651	WB44X173 GE Range Broil Element
652	SUPPORT BROIL
700	BARRIER LATCH SW LOW OV
700	GEN WB14X5036
701	GEN WB15X0150
701	HANDLE LATCH
702	GEN WB03X0434
703	RETAINER KNOB
704	GEN WB02X7717
705	GEN WB02X7718
706	PAWL LOCKING
707	GEN WB02X7716
708	GEN WB24X0183
709	GEN WB24X5097
709	GEN WB24X0197
710	GEN WB09X0148
711	GEN WB02X6212
712	RETAINER RING
713	GEN WB24X5234
714	GEN WB02X3475
731	GEN WB02X7719
732	GEN WB24X5238
740	CLIP WIRE BLACK
782	WB17X5060 GE Oven Block Assembly
800	GEN WB26X5053
801	SUPPORT SPIT
802	SCREW THUMB
803	SPIT BLADE
804	SKEWER ASM
805	HANDLE SPIT
1458	GEN WB17X5061
2001	GEN WB55X0304
2001	GEN WB55X0305
2002	GEN WB56X6066
2003	GEN WB02X2858
2004	GEN WB59X5028
2005	GEN WB59X0134
2006	GEN WB02X2104
2009	GEN WB59X0165
2010	GEN WB02X3173
2012	GEN WB38X0075
2013	GEN WB49X0330
2014	GEN WB02X2847
2015	GEN WB02X2402
2016	GEN WB02X3289
2017	GEN WB02X2861
2018	GEN WB02X2401
2019	GEN WB02X3292
2020	GEN WB02X2083
2021	GEN WB59X0164
2023	GEN WB55X0302
2024	GEN WB49X0327
2025	GEN WB02X2845
2026	GEN WB02X2842
2027	GEN WB02X3156
2028	GEN WB49X0268
2031	GEN WB59X0167
2040	GEN WB02X3305
2041	GEN WB02X3304
2043	GEN WB02X3423
2045	GEN WB02X3422
2046	GEN WB02X3291
2047	GEN WB02
