JKP55DP2BB CONTROL PANEL

JKP55DP2BB CONTROL PANEL

Written by

in

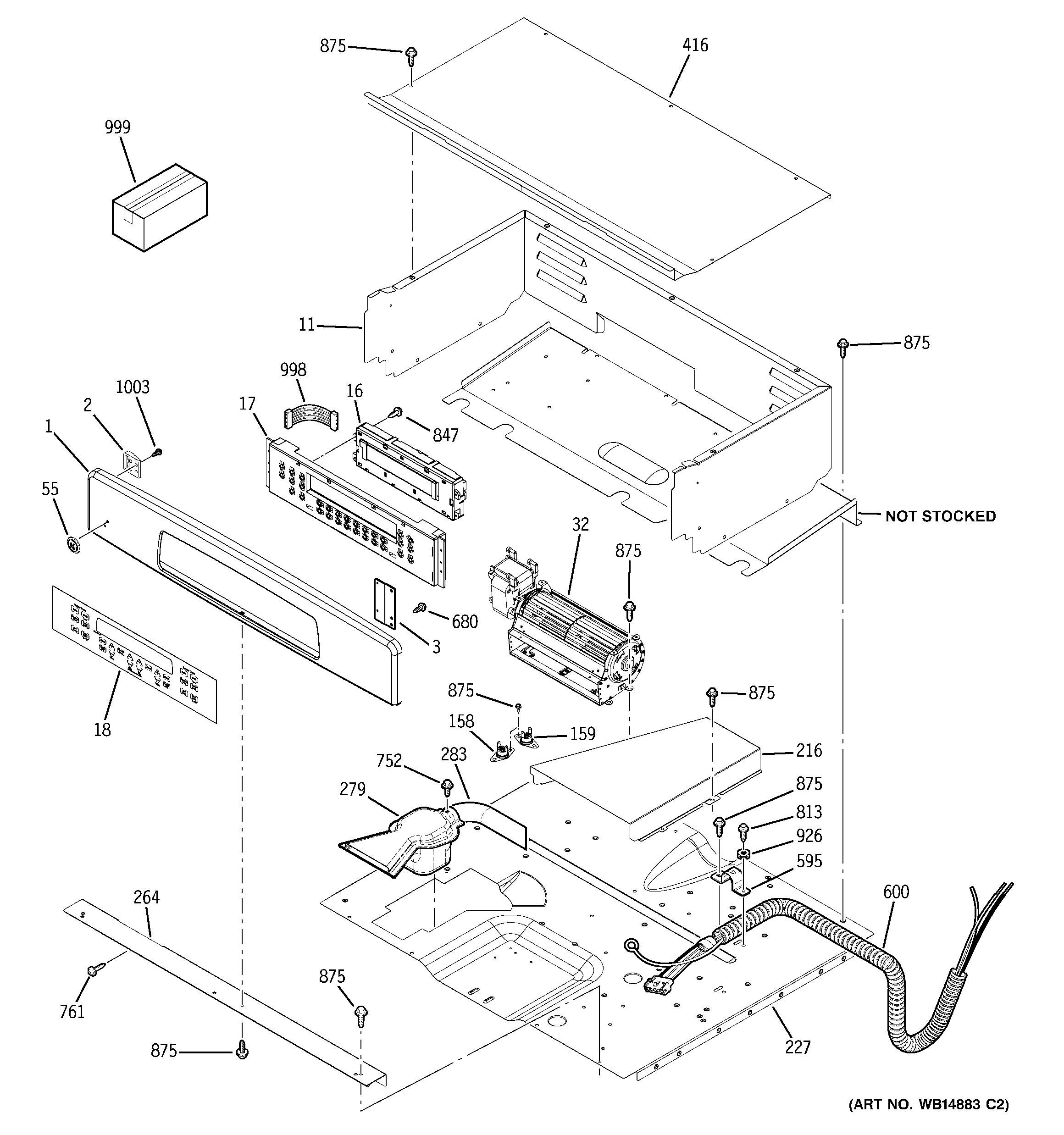

JKP55DP2BB CONTROL PANEL

Products

PositionProduct
1GEN WB36T11277
1GEN WB36T11278
1GEN WB36T11276
2GEN WB02T10376
3GEN WB02T10382
3GEN WB02T10383
11WB02T10362 GE Fan Housing
16WB27T11164 GE Oven ERC3DD Control
17WB27T11176 GE Oven Button Board Housing Assembly DDH
18GEN WB27T11234
18GEN WB27T11235
18WB27T11233 GE Oven Faceplate
32GEN WB26T10060
55WB02T10359 GE Oven Badge
158WB24T10080 GE Oven Bake Thermostat
159WB24T10096 GE Oven Limit Bimetal Switch
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10356
264WB07T10539 GE Trim Vent
279WB38T10019 GE Oven Vent Box Assembly
283WB28T10212 GE Inlet Duct Vent
283WB28T10081 GE Lower Oven Vent Inlet Duct
416WB02T10363 GE Electrical Top Cover
595WB2K5126 GE Oven Condenser Clamp
600WB18T10225 GE Oven Wire Conduit Assembly
600WB18T10448 GE Oven Wire Conduit Assembly
680WR1X1850 GE Refrigerator Screw
752WB1K5200 GE Oven Screw 340531
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
926GROUND WASHER
998GEN WB18T10404
999GEN 49-80598
999GEN 31-14533
999GEN 31-10730
999INSTR INSTALL OVN DOOR
1003GEN WB01T10019
