JKP56AS1AA 1

Products

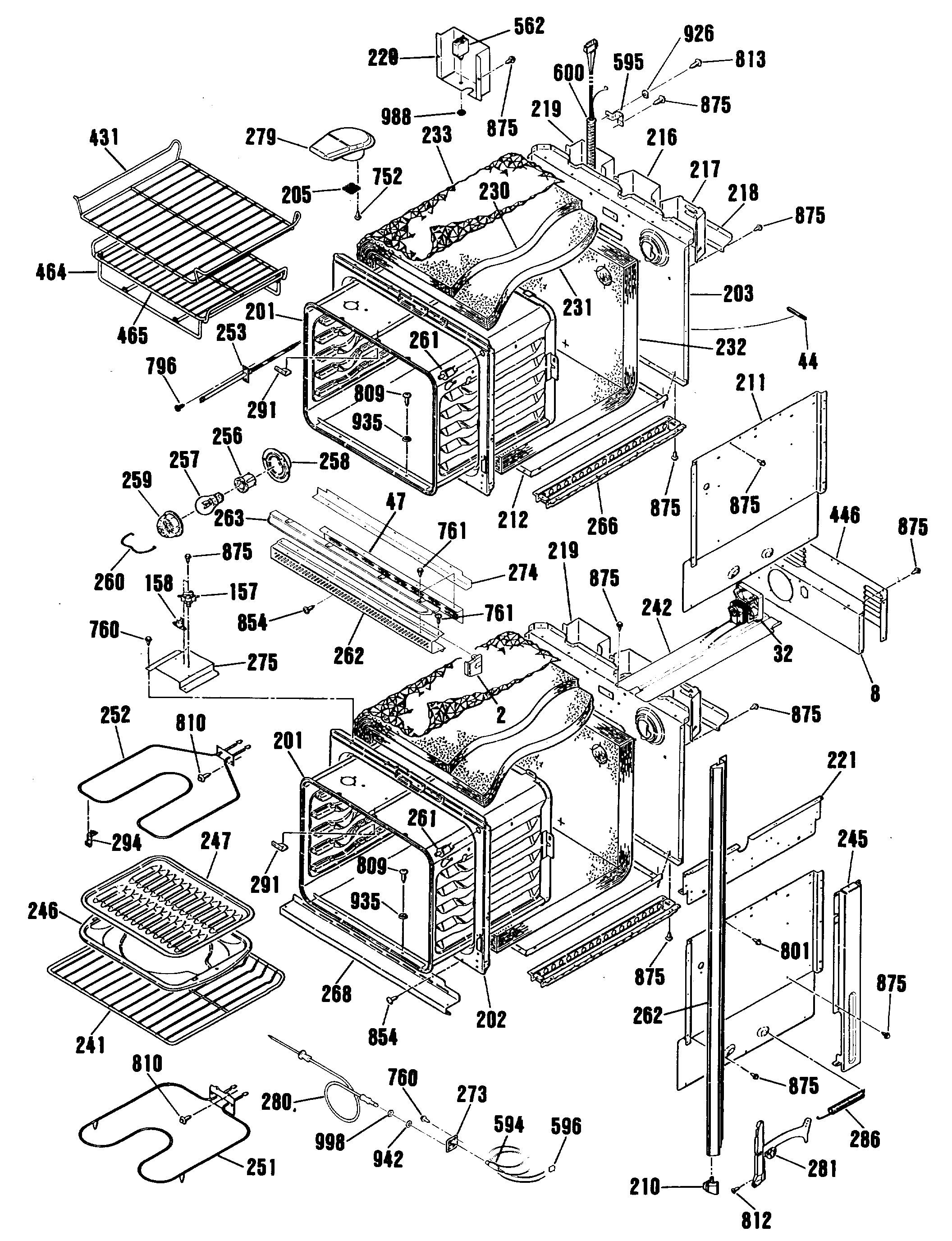

PositionProduct
2GEN WB36K5339
2GEN WB36K5340
8FAN SUPPORT-LOWER
8GEN WB02K5257
32GEN WB26K5045
32FAN ASM-LOWER
44GEN WB02K5225
47WB38K5029 GE Oven Vent Barrier
157WB24K5049 GE Oven Limit Switch
158WB24K5033 GE Oven Limit Switch
201GEN WB63K5086
201GEN WB63K5166
202GEN WB63K5084
203GEN WB63K5078
203GEN WB63K5168
205WB6K5026 GE Oven Smoke El Screw
210GEN WB07K5249
210GEN WB07K5248
211GEN WB63K5085
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34K5070
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
219GEN WB34K5143
220GEN WB34K5145
221SIDE EXTENSION-LT-UPPER
221SIDE EXTENSTION-RT-UPPER
221CAB SIDE EXTENSION-LOW
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
232INSULATION BACK/BTTM-UPR
233GEN WB34K5080
241GEN WB48K5009
241WB48T10093 GE Oven Range Rack
242WB38K5041 GE Vent Box
245GEN WB02K5139
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8K5029 GE Oven Lamp Holder
257RANGE ONLY 40W 120V APPL BULB
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24K5061
262GEN WB07K5254
262GEN WB07K5251
262GEN WB07K5252
263GEN WB07K5231
263GEN WB07K5250
266WB63K5079 GE Rail Base
268GEN WB07K5253
273PROBE COVER
274GEN WB07K5069
275WB34K5078 GE Oven Vent Box Cover
279VENT BOX ASM-BLACK
280WB20T10024 GE Oven Thermistor Probe
281GEN WB14K5007
281GEN WB14K5006
286OV DR SPRING-UPPER
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
431GEN WB48K5010
446WB34K5089 GE Wire Center Cover
464GEN WB48K5011
465GEN WB48K5012
562GEN WB20K5039
594GEN WB08K5012
595WB2K5126 GE Oven Condenser Clamp
596GEN WB08K5013
600GEN WB18K5364
752GEN WB00X6542
760WB1X536 GE Oven Screw
761WB1K5062 GE Oven Screw
796WB1K5116 GE Oven Screw
801WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
854GEN WB01X1328
854SCREW-BRT. NI.
875WH2X930 GE Screw
926GROUND WASHER
935GEN WB01X1201
942WB1X5573 GE Oven Washer
988GEN WB01M0011
998WB1X5572 GE Oven Nut
