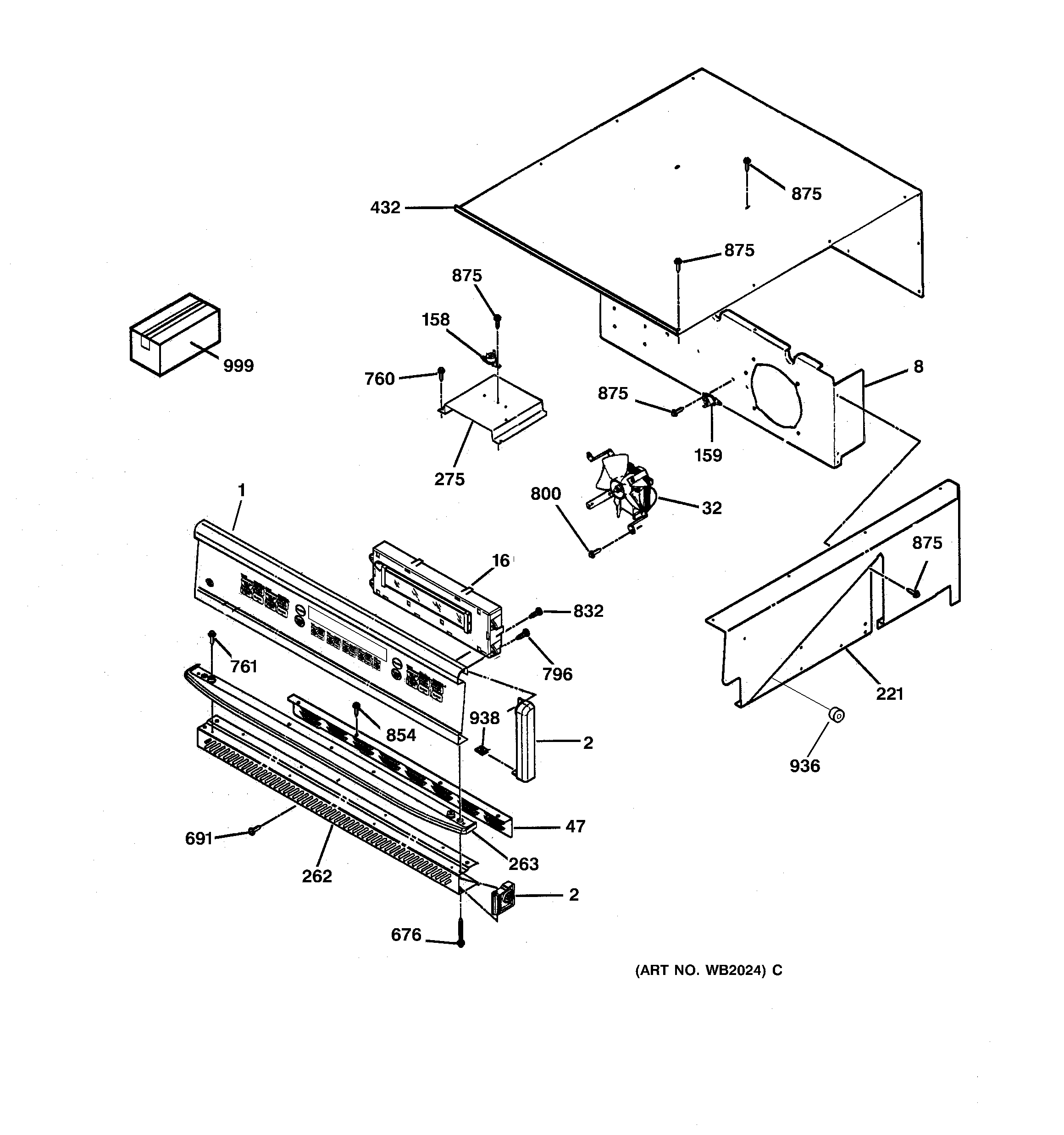

JKP56AW1AA CONTROL PANEL

JKP56AW1AA CONTROL PANEL

Written by

in

JKP56AW1AA CONTROL PANEL

Products

PositionProduct
1GEN WB36K5719
2GEN WB07K5442
2CAP END (LT-AD)
2CAP END (RT-AD)
8GEN WB02K5257
8FAN SUPPORT-LOWER
16CLOCK/OVEN CONTROL
32GEN WB26K5071
32WB26K5072 GE Oven Fan Assembly
47WB38K5058 GE Vent Barrier
47SCR 8-18 AB PHR 1/2 S
158WB24K5033 GE Oven Limit Switch
159WB24K5085 GE Oven Limit Switch
210GEN WB07K5463
221BODY SIDE EXTENSION-RT
221GEN WB63K5174
221BODY SIDE EXTENSION-LT
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
262GEN WB07K5507
262GEN WB07K5506
262GEN WB07K5480
263GEN WB07K5508
263TRIM I-BROW UPR (AD)
275WB34K5078 GE Oven Vent Box Cover
432GEN WB63K5094
530WB48X10056 GE Broil Pan Set, Large Porcelain
676SCR 8-18 X 2.500 (AD)
691GEN WB01K5176
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
761GEN WB01K5211
761SCREW ST 8-18X.625 TR AD
761WB1K5062 GE Oven Screw
763SCR 8-22 BTHW 9/16 S HLT
796WB1K5116 GE Oven Screw
800WB1M1 GE Oven Screw
821GEN WB01M0005
854GEN WB01X1328
854SCREW-BRT. NI.
875WH2X930 GE Screw
890WB1X1118 GE Oven Screw 6-32T
911GEN WB01K5124
936GEN WB01K5065
938WB1K5209 GE Oven Clip
999GEN 31-10200
999GEN WB18K5617
999MAIN WIRE HARNESS
999GEN 31-13342
999USE CARE MANUAL
999LOCK MOTOR HARNESS-LOWER
