JKP56AW2AA CONTROL PANEL

JKP56AW2AA CONTROL PANEL

Written by

in

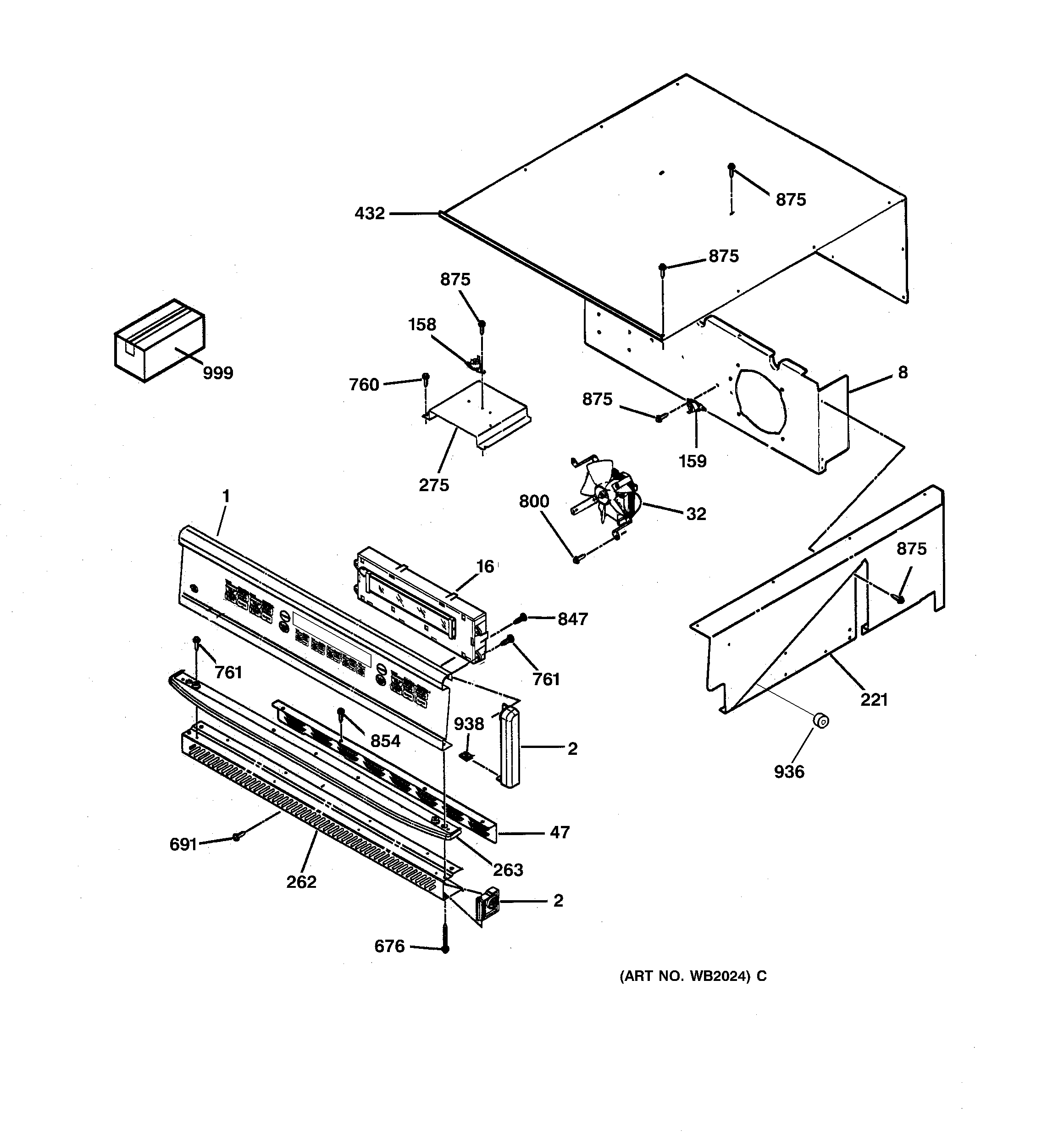

JKP56AW2AA CONTROL PANEL

Products

PositionProduct
1GEN WB36T10152
2CAP END (RT-AD)
2CAP END (LT-AD)
2GEN WB07K5442
8GEN WB02K5257
8FAN SUPPORT-LOWER
16CLOCK/OVEN CONTROL
32GEN WB26K5071
32WB26K5072 GE Oven Fan Assembly
47WB38K5058 GE Vent Barrier
158WB24K5033 GE Oven Limit Switch
159WB24K5085 GE Oven Limit Switch
221BODY SIDE EXTENSION-RT
221GEN WB63K5174
221BODY SIDE EXTENSION-LT
262GEN WB07K5480
262GEN WB07K5507
262GEN WB07K5506
263GEN WB07K5508
263TRIM I-BROW UPR (AD)
275WB34K5078 GE Oven Vent Box Cover
432GEN WB63K5094
676SCR 8-18 X 2.500 (AD)
691GEN WB01K5176
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
761GEN WB01K5211
800WB1M1 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
854SCREW-BRT. NI.
875WH2X930 GE Screw
936GEN WB01K5065
938WB1K5209 GE Oven Clip
999GEN 31-10200
999USE CARE MANUAL
999GEN 49-8443
999GEN 31-13342
