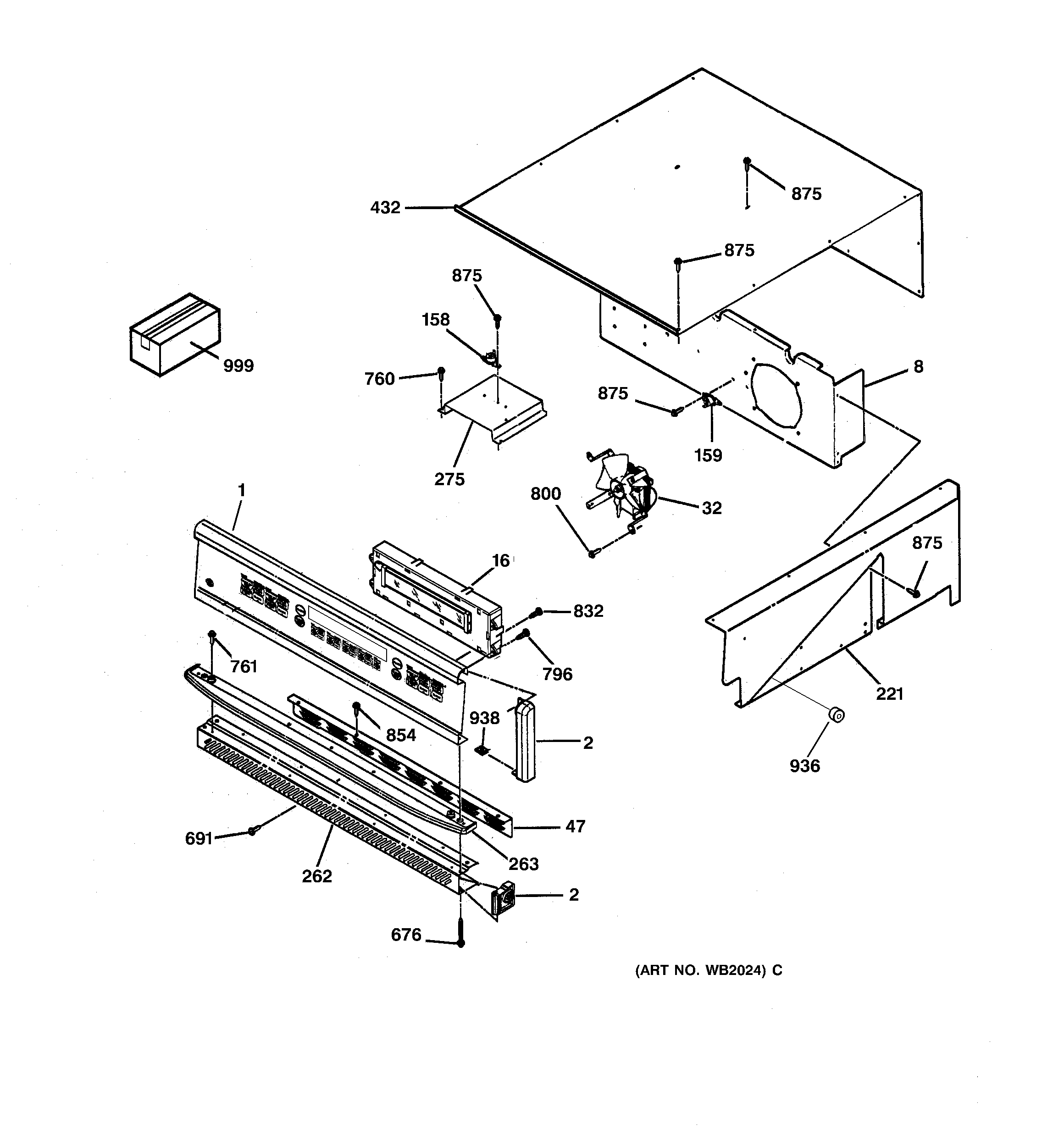

JKP56BW1BB CONTROL PANEL

Products

Position	Product
1	GEN WB36K5720
1	GEN WB36K5721
2	GEN WB07K5442
2	GEN WB36K5639
2	GEN WB36K5641
2	GEN WB36K5642
2	GEN WB36K5638
8	GEN WB02K5257
8	FAN SUPPORT-LOWER
16	CLOCK/OVEN CONTROL
32	GEN WB26K5071
32	WB26K5072 GE Oven Fan Assembly
47	SCR 8-18 AB PHR 1/2 S
47	WB38K5058 GE Vent Barrier
158	WB24K5033 GE Oven Limit Switch
159	WB24K5085 GE Oven Limit Switch
221	BODY SIDE EXTENSION-RT
221	BODY SIDE EXTENSION-LT
221	GEN WB63K5174
253	WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
262	GEN WB07K5483
262	VERT SIDE TRIM-LT-BLK
262	GEN WB07K5465
262	GEN WB07K5464
262	VERT SIDE TRIM-RT-BLK
262	GEN WB07K5481
263	GEN WB07K5490
263	GEN WB07K5440
263	GEN WB07K5488
263	GEN WB07K5445
275	WB34K5078 GE Oven Vent Box Cover
432	GEN WB63K5094
530	WB48X10056 GE Broil Pan Set, Large Porcelain
676	GEN WB01K5206
676	GEN WB01K5207
691	WB1K5162 GE Oven Black Screw
691	GEN WB01K5163
691	WB1K5177 GE Oven Trim Screw
691	SCREW-GRAY
760	WB1X536 GE Oven Screw
761	WB1K5062 GE Oven Screw
761	WB1K5185 GE Oven White Screw
761	WB1K5029 GE Oven Screw
763	SCR 8-22 BTHW 9/16 S HLT
796	WB1K5116 GE Oven Screw
800	WB1M1 GE Oven Screw
821	GEN WB01M0005
854	SCREW-BRT. NI.
854	GEN WB01X1328
875	WH2X930 GE Screw
890	WB1X1118 GE Oven Screw 6-32T
911	GEN WB01K5124
936	GEN WB01K5065
938	WB1K5209 GE Oven Clip
999	LOCK MOTOR HARNESS-LOWER
999	MAIN WIRE HARNESS
999	GEN 31-13342
999	GEN 31-10200
999	GEN WB18K5617
999	USE CARE MANUAL
