JKP56WW1WW CONTROL PANEL

JKP56WW1WW CONTROL PANEL

Written by

in

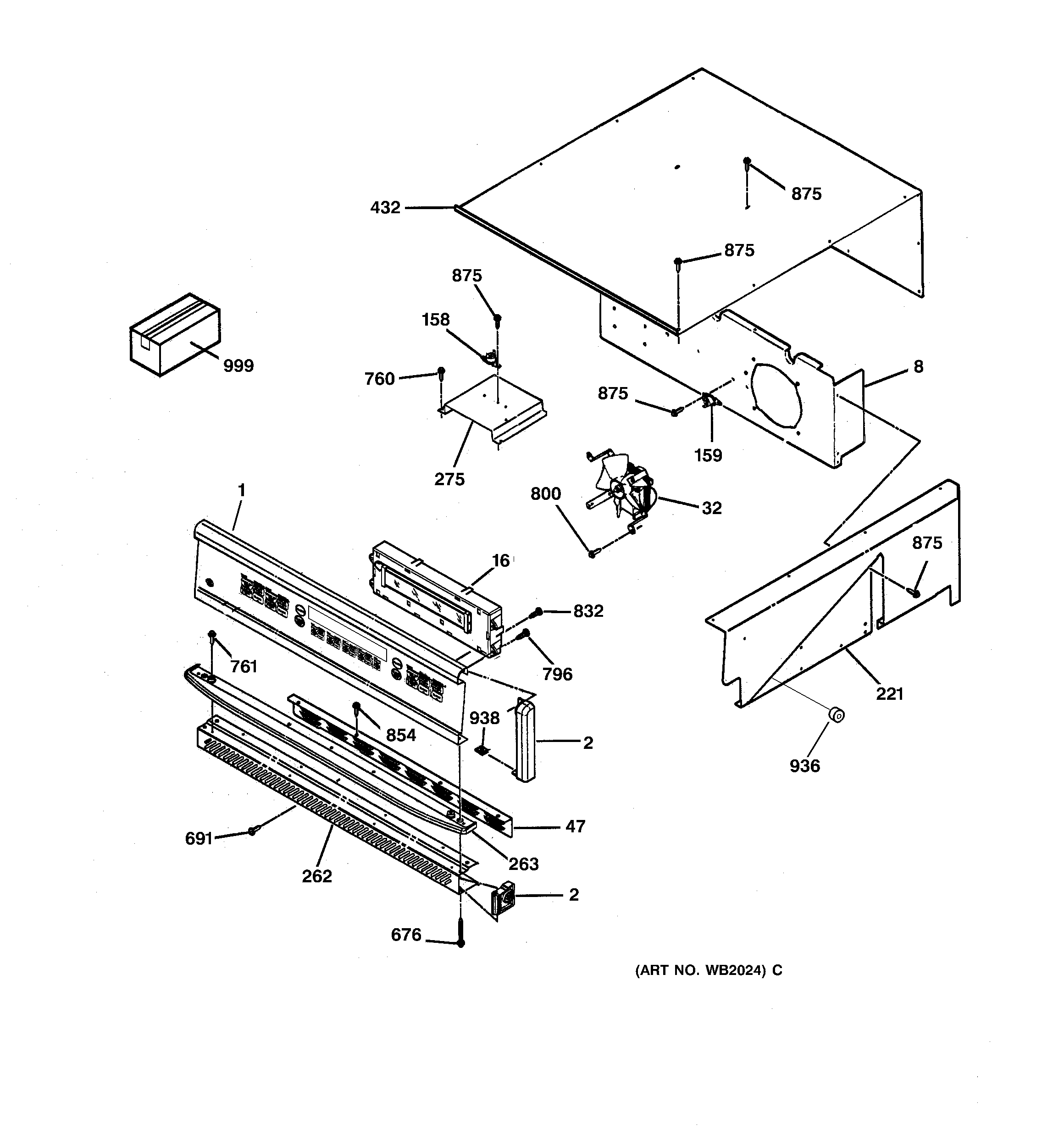

JKP56WW1WW CONTROL PANEL

Products

PositionProduct
1GEN WB36K5720
2GEN WB36K5641
2GEN WB36K5642
8GEN WB02K5257
8FAN SUPPORT-LOWER
16CLOCK/OVEN CONTROL
32GEN WB26K5071
32WB26K5072 GE Oven Fan Assembly
47WB38K5058 GE Vent Barrier
136WB15K5127 GE White Oven Handle
158WB24K5033 GE Oven Limit Switch
159WB24K5085 GE Oven Limit Switch
221BODY SIDE EXTENSION-RT
221GEN WB63K5174
221BODY SIDE EXTENSION-LT
262GEN WB07K5464
262GEN WB07K5483
262GEN WB07K5465
263GEN WB07K5490
263GEN WB07K5445
275WB34K5078 GE Oven Vent Box Cover
432GEN WB63K5094
676GEN WB01K5207
691SCREW-GRAY
691GEN WB01K5163
760WB1X536 GE Oven Screw
761WB1K5185 GE Oven White Screw
761WB1K5062 GE Oven Screw
761WB1K5029 GE Oven Screw
796WB1K5116 GE Oven Screw
800WB1M1 GE Oven Screw
832WB1X1118 GE Oven Screw 6-32T
854GEN WB01X1328
854SCREW-BRT. NI.
875WH2X930 GE Screw
936GEN WB01K5065
938WB1K5209 GE Oven Clip
999GEN WB18K5617
999GEN 31-13342
999USE CARE MANUAL
999MAIN WIRE HARNESS
999GEN 31-10200
999LOCK MOTOR HARNESS-LOWER
