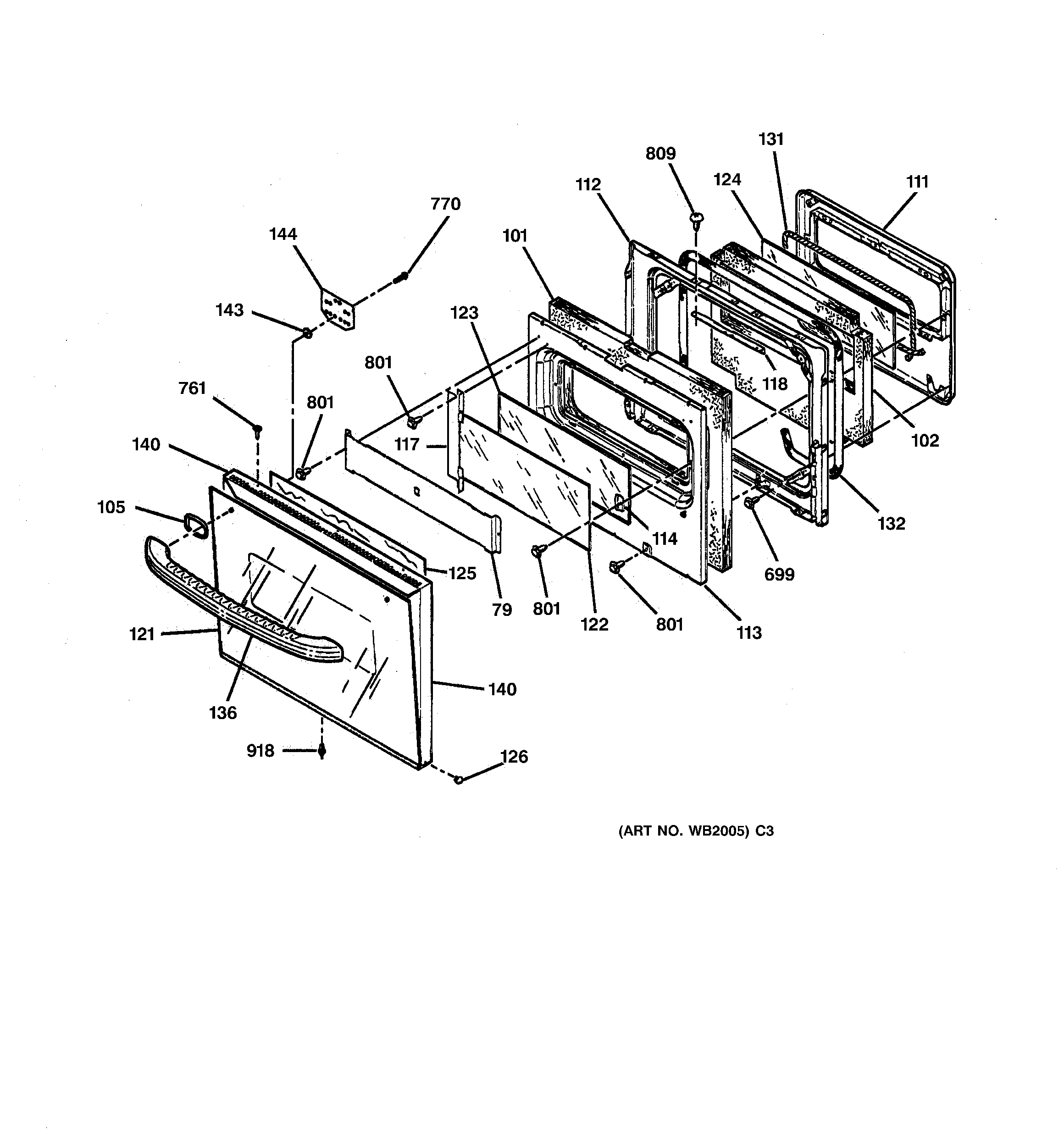

JKP56WW1WW OVEN DOOR

JKP56WW1WW OVEN DOOR

Written by

in

JKP56WW1WW OVEN DOOR

Products

PositionProduct
79WB34K5077 GE Oven Door Baffle
101WB35K5054 GE Oven Door Insulation
102DOOR PLUG INSULATION
105GEN WB07K5484
111OV DR LINING PLUG-UPPER
112GEN WB55K5017
113GEN WB02K5127
114GEN WB02M0001
117GEN WB02K5131
118OV DR LINING STIFFENER
121GEN WB57K5259
122GEN WB57K5102
123OVEN DOOR GLASS
124CENTER GLASS
125GEN WB34K5255
126GEN WB03K5077
131WB2X9168 GE Oven Seal
132WB32K5038 GE Oven Door Gasket
140WB56K5159 GE Oven White Door Frame
143WB2K5147 GE Oven Spacer
144WB2K5395 GE Oven Reinforcement Plate
699WB1M1 GE Oven Screw
761WB1K5185 GE Oven White Screw
761WB1K5029 GE Oven Screw
761WB1K5062 GE Oven Screw
770WB1K5072 GE Oven Screw
809WB1X1137 GE Oven Screw
918WB1K5071 GE Oven Plastic Rivet
