JKP64GP3BG 1

JKP64GP3BG 1

Written by

in

JKP64GP3BG 1

Products

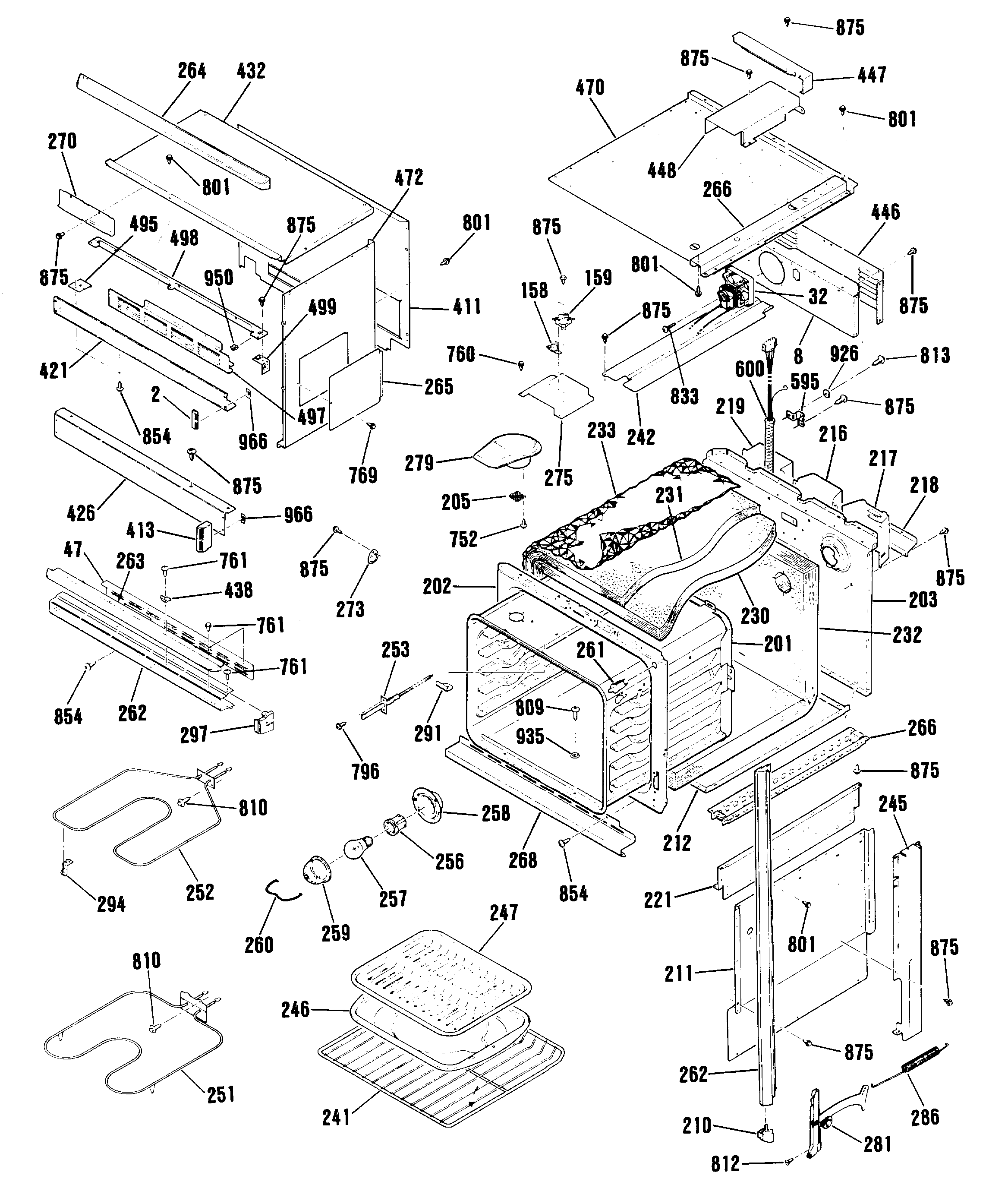

PositionProduct
2END CAP-LT
2END CAP-RT
8FAN SUPPORT-LOWER
32FAN ASM-LOWER
47WB38K5029 GE Oven Vent Barrier
47GEN WB02X7724
158WB24K5033 GE Oven Limit Switch
159WB24K5049 GE Oven Limit Switch
201GEN WB63K5086
203GEN WB63K5078
205WB6K5026 GE Oven Smoke El Screw
210GEN WB07K5159
210GEN WB07K5158
211GEN WB63K5085
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34K5070
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
221CAB SIDE EXTENSION-LOW
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
232INSULATION BACK/BTTM-UPR
233GEN WB34K5080
241WB48T10093 GE Oven Range Rack
242WB38K5041 GE Vent Box
246CERAMIC TRAY
247WB48X10056 GE Broil Pan Set, Large Porcelain
252WB44K5009 GE Oven Broil Element
261GEN WB24K5061
262GEN WB07K5274
262GEN WB07K5273
263WB7K5378 GE Oven Brow Trim
264GEN WB07K5272
265ACCESS COVER
266WB63K5079 GE Rail Base
266BASE RAIL MICROWAVE
270LIGHT COVER
275WB34K5078 GE Oven Vent Box Cover
279VENT BOX ASM-BLACK
281GEN WB14K5007
281GEN WB14K5006
286OV DR SPRING-UPPER
294WB2X9719 GE Oven Support Bracket Clip
297GEN WB36K5101
297GEN WB36K5102
411CABINET BACK
413GEN WB63K5124
413END CAP-CENTER-RT-BLK
413CTR TRIM END CAP-LT-BLK
421GEN WB07K5277
421WB7K5101 GE Oven Vent Trim
421ANTENNA-M/W
426GEN WB07K5264
432CABINET TOP
438LO TRIM SPRING CLIP
438BOTTOM WINDOW-M/W
446WB34K5089 GE Wire Center Cover
447WIRE COVER-MICRO SIDE
448GEN WB34K5185
470COMPARTMENT BOTTOM
472CABINET SIDE-RT
472CABINET SIDE-LT
495VENT TRIM BRACKET
497GEN WB38K5047
498CABINET BRACE
499CABINET BRACE BRACKET
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5215
752GEN WB00X6542
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
769WB1X500D GE Oven Screw Package
801WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
813WB1X1261 GE Oven Screw
833WB1X1131 GE Screw 6-32
854SCREW-BRT. NI.
854GEN WB01X1328
875WH2X930 GE Screw
926GROUND WASHER
935GEN WB01X1201
950CABLE CLIP
966PUSH ON CLIP
