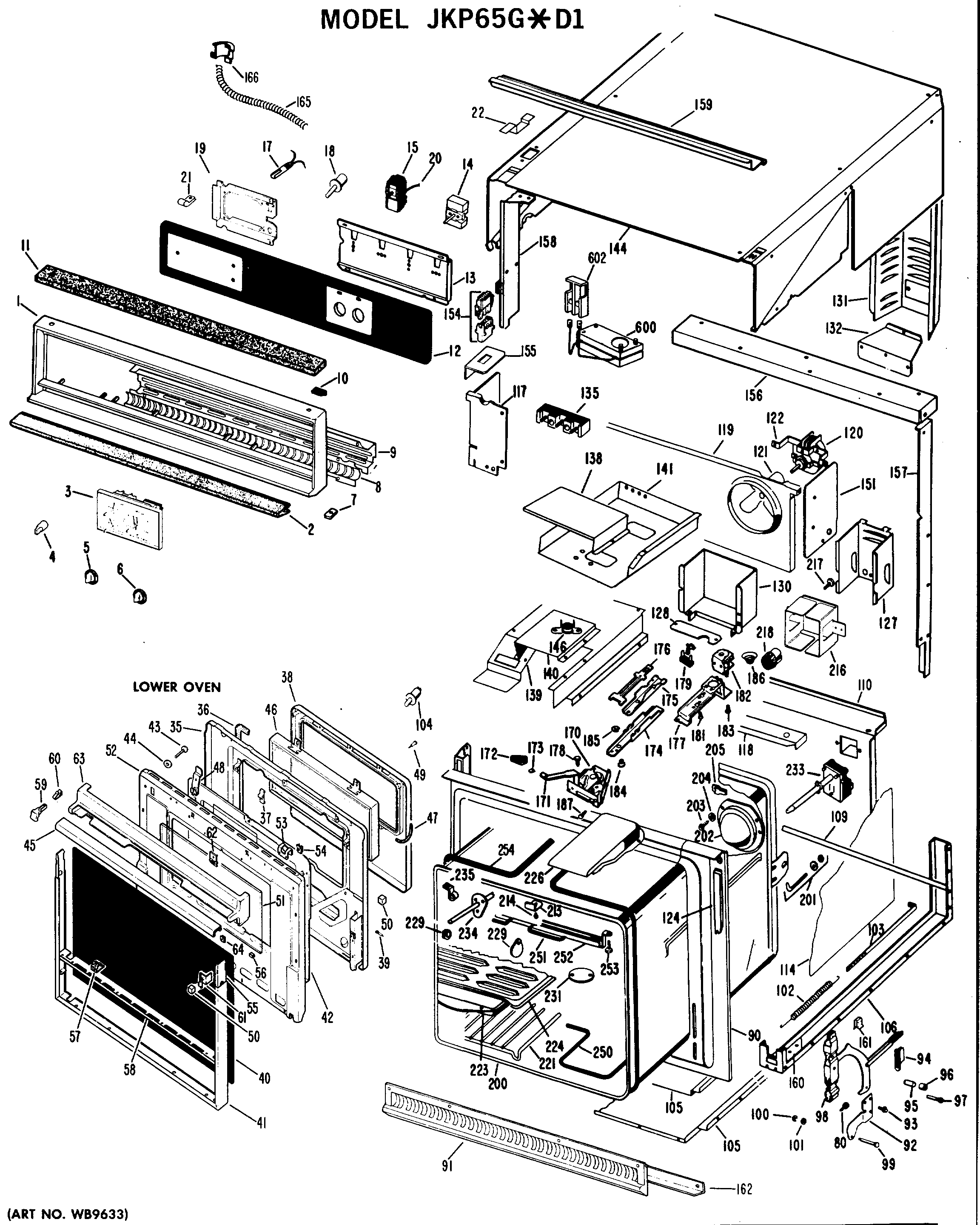

JKP65G*D1 LOWER OVEN

JKP65G*D1 LOWER OVEN

Written by

in

JKP65G*D1 LOWER OVEN

Products

PositionProduct
1GEN WB07X1122
2SPACER, NOSE
2SCREW, MTG. NOSE
2GEN WB07X1123
3NUT
3GEN WB19X5254
4GEN WB03X0459
5GEN WB03X0463
6GEN WB03X0462
7SCREW – MT. TRIM
7SPEEDNUT – MTG. TRIM TO
8GEN WB07X0635
9GEN WZ05X0132
9GEN WB02X1973
10WB1X500D GE Oven Screw Package
10GEN WB02X6671
11GEN WB02X6668
12GEN WB36X5501
13OVEN SWITCH
13SCR 8-32 M PHR 3/16 S
13GEN WB02X6494
13GEN WB02X3453
15GEN WB24X0176
17NEON LAMP 118V
17GEN WB02X3468
18GEN WB02X3429
18SWITCH, LATCH RELEASE
19GEN WB01X5220
19TIMER BRACKET
20GEN WB02X6937
21GEN WB02X2006
22GEN WZ04X0369
22GEN WZ04X0372
22GEN WB02X3291
35GEN WB55X5247
35GEN WB02X3312
35GEN WB02X3314
36WB2X3138 GE Oven Self-Clean Door Gasket
37GEN WB09X0154
38GEN WB55X5246
39WB1X558D GE Oven Screw Package
40GEN WB36X0557
41GEN WB07X1150
42GEN WB49X0354
43GEN WZ04X0425
44WB1X119D GE Oven Range Washer
45GEN WB15X0153
46GEN WB36X5495
47GASKET WINDOW
48GEN WB09X0153
49GEN WB01X0600
50GEN WB02X3285
51GEN WB36X0540
52GEN WB55X0419
52GEN WB02X7208
53GEN WB02X3310
54GEN WB01X0439
55GEN WB02X3334
55GEN WB02X3335
56GEN WB02X3332
57GEN WB02X3333
58GEN WB02X3336
59GEN WB02X3337
60GEN WB09X0157
61GEN WB02X7209
62GEN WB02X3331
63GEN WB07X1151
64SPEEDNUT – GRIP (4)
90GEN WB56X1327
91GEN WZ04X0237
91GEN WB07X0636
92GEN WB10X0155
92GEN WB10X0154
93GEN WZ06X0086
94GEN WB02X3303
95GEN WB02X3305
96GEN WB02X3304
97GEN WB01X0524
98HINGE LEVER RH & LH
99GEN WB02X6195
100RING RETAINING
101GEN WZ10X0017
102GEN WB09X0156
103GEN WB02X3289
104SWITCH, OVEN LIGHT
104GEN WB02X3421
105GEN WB55X0302
106GEN WB59X0163
109GEN WB02X2401
110GEN WB49X0327
114GEN WB59X0164
117GEN WB02X2858
118GEN WB02X2083
119SHIELD AIR
119PAD
120GEN WB26X5052
121GEN WB02X2001
121WR60X114 GE Refrigerator Evaporator Motor Fan Blade
122GEN WB02X2846
122SCREW MT. MOTOR BRKT.
123GEN WB05
