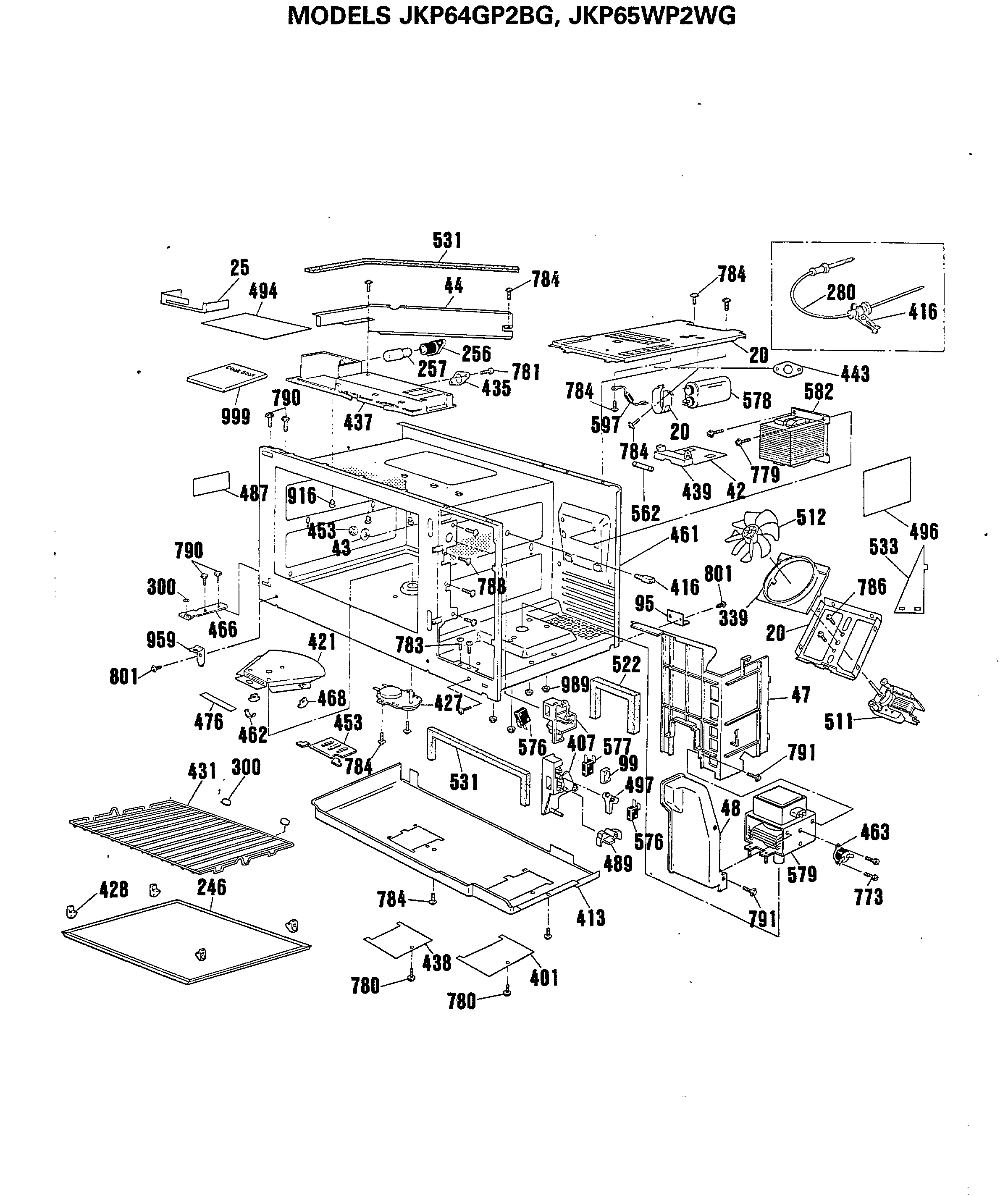

JKP65WP2WG 2

JKP65WP2WG 2

Written by

in

JKP65WP2WG 2

Products

Position	Product
9	GEN WB57K5076
28	WB12K5005 GE Oven Electric Control
43	SPACER-M/W
44	GEN WB02X7722
48	GEN WB02X7635
79	WB34K5077 GE Oven Door Baffle
99	SPACER
246	WB48X10056 GE Broil Pan Set, Large Porcelain
246	CERAMIC TRAY
256	WB8K5029 GE Oven Lamp Holder
256	GEN WB08K5096
257	GEN BUY-LOCAL
257	GEN WB08K5032
280	PROBE-M/W
280	WB20T10024 GE Oven Thermistor Probe
300	GEN WB02K5190
300	SPACER-HINGE-M/W
339	GEN WB02X7728
401	BOTTOM WINDOW-M/W
407	DOOR HOOK UPPER-M/W
407	DOOR HOOK LOWER-M/W
413	GEN WB36K5119
413	GEN WB36K5118
413	GEN WB63K5124
416	SENSOR JACK
416	HOLDER PROBE-M/W
421	GEN WB07K5090
421	ANTENNA-M/W
427	MOTOR, STIRRER-M/W
428	SUPPORT-OVEN RACK
431	GEN WB48K5008
435	THERMAL CUTOUT-M/W
437	GEN WB38K5038
438	LO TRIM SPRING CLIP
438	BOTTOM WINDOW-M/W
439	FUSE HOLDER
443	THERMAL SWITCH
453	CONTROL PANEL HINGE
461	CAVITY
462	GEN WB02X7625
463	GEN WB27X5371
466	GEN WB10X5179
466	GEN WB10X5184
468	ANTENNA SUPPORT
476	SERVICE CAUTION LABEL
487	NAME PLATE
489	GEN WB15K5039
489	GEN WB10X5186
494	GEN WB06K5021
496	GEN WB06K5019
496	GEN WB09K5015
497	GEN WB02X7628
497	VENT BARRIER TRIM
511	FAN MOTOR
512	GEN WB02X4114
522	CUSHION 15T 10W 450L
531	CUSHION 5T 10W 550L
531	CUSHION 5T 10W 450L
533	AIR SEPARATION
562	FUSE #SS6-15A
576	GEN WB24X0352
577	GEN WB24X0353
578	WB27X10073 GE Oven Capacitor
579	WB27X10249 GE Oven Magnetron
582	GEN WB27X5447
597	HV DIODE
773	SCREW
779	WB1M14 GE Oven Screw
780	SCREW
781	GEN WB01K5095
783	SCREW
784	GEN WB01K5098
786	SCREW
788	SCREW
790	SCREW
791	SCREW
801	WB1M1 GE Oven Screw
916	PLASTIC RIVET
959	LOWER TRIM CLIP
989	NUT
999	MAIN WIRE HARNESS
999	GEN WB06K5022
999	MAIN WIRE HARNESS M/W
999	GEN 31-13111
999	GEN WB18K5217
999	GEN 31-10090
999	HV LEAD WIRE
999	MW-MINI MAN/WIRE DIAGRAM
999	USE & CARE MANUAL
