JKP65WP3WG 2

JKP65WP3WG 2

Written by

in

JKP65WP3WG 2

Products

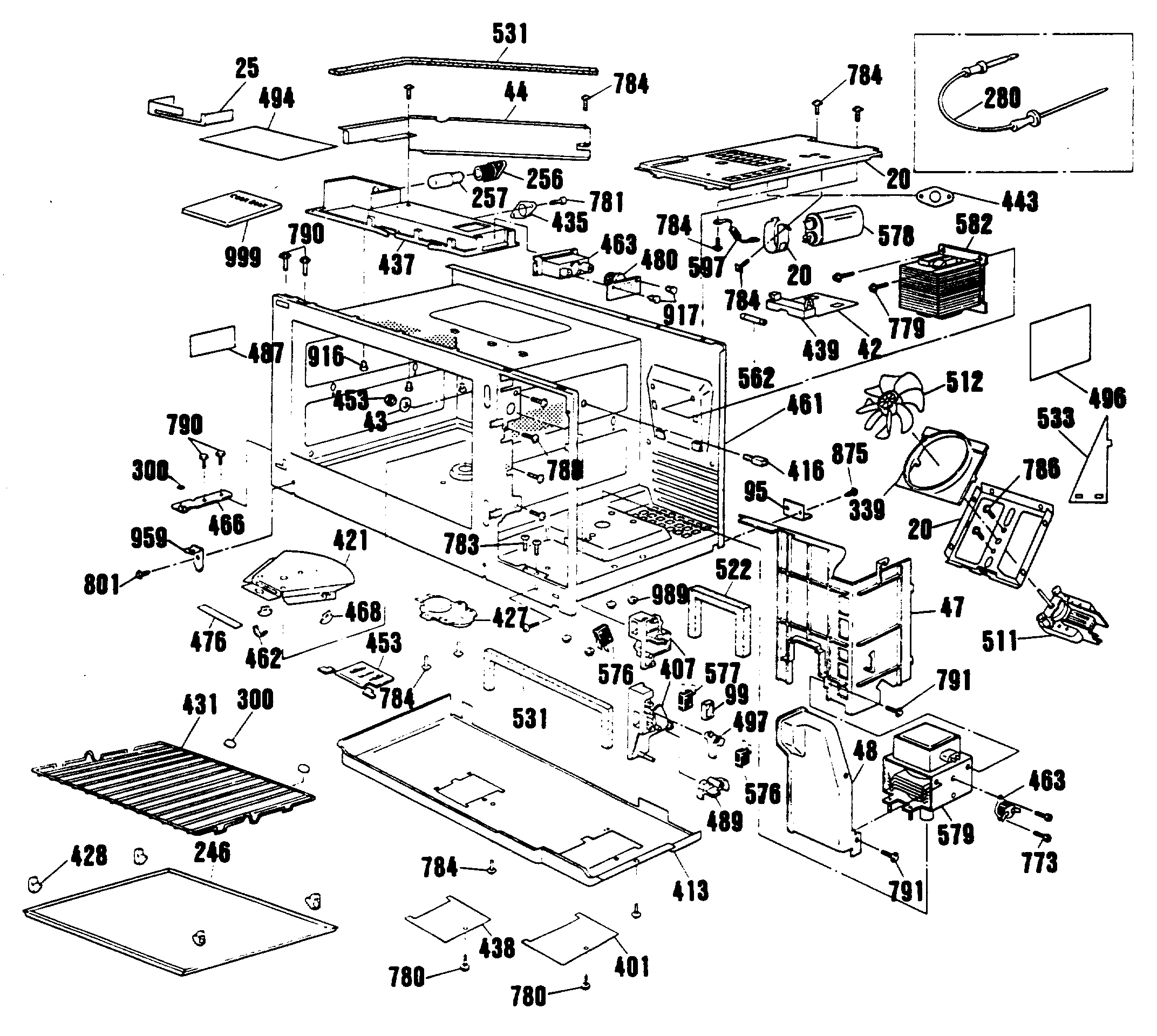

Position	Product
20	HV CAPACITOR BRACKET
20	FAN MOTOR BRACKET
20	GEN WB02K5295
20	GEN WB02K5192
20	GEN WB02K5193
25	GEN WB34K5110
42	FUSE INSULATOR
43	SPACER-M/W
44	GEN WB02K5296
47	WB38K5029 GE Oven Vent Barrier
47	GEN WB02X7724
48	GEN WB02X7635
95	REAR STOP BRACKET
99	SPACER
246	CERAMIC TRAY
246	WB48X10056 GE Broil Pan Set, Large Porcelain
256	GEN WB08K5096
256	WB8K5029 GE Oven Lamp Holder
257	GEN WB08K5032
257	GEN BUY-LOCAL
280	WB20T10024 GE Oven Thermistor Probe
300	SPACER-HINGE-M/W
300	GEN WB02K5190
339	GEN WB02X7728
401	BOTTOM WINDOW-M/W
407	DOOR HOOK UPPER-M/W
407	DOOR HOOK LOWER-M/W
413	GEN WB36K5118
413	GEN WB36K5119
413	GEN WB63K5124
416	GEN WB08K5043
421	ANTENNA-M/W
421	GEN WB07K5090
427	MOTOR, STIRRER-M/W
428	SUPPORT RACK-M/W
431	GEN WB48K5008
435	GEN WB27K5132
437	GEN WB38K5038
438	BOTTOM WINDOW-M/W
438	LO TRIM SPRING CLIP
439	FUSE HOLDER
443	GEN WB24K5099
453	CONTROL PANEL HINGE
453	JACK NUT
461	CAVITY
462	GEN WB02K5298
463	GEN WB27X5371
466	GEN WB10K5014
466	GEN WB10K5013
468	GEN WB02K5297
476	SERVICE CAUTION LABEL
487	NAME PLATE
489	GEN WB15K5039
494	GEN WB06K5021
496	GEN WB09K5015
496	GEN WB06K5039
497	GEN WB02X7628
497	GEN WB38K5047
511	FAN MOTOR
512	GEN WB02X4114
522	CUSHION 15T 10W 450L
531	CUSHION 5T 10W 450L
531	CUSHION 5T 10W 550L
533	AIR SEPARATION
562	FUSE #SS6-15A
576	GEN WB24X0352
577	GEN WB24X0353
578	GEN WB27K5130
579	WB27X10249 GE Oven Magnetron
582	GEN WB27X5447
597	GEN WB08K5044
773	SCREW
779	WB1M14 GE Oven Screw
780	SCREW
781	GEN WB01K5095
783	SCREW
784	GEN WB01K5098
786	SCREW
788	SCREW
790	SCREW
791	SCREW
801	WB1M1 GE Oven Screw
875	WH2X930 GE Screw
916	GEN WB01K5153
959	LOWER TRIM CLIP
989	NUT
999	USE & CARE MANUAL
999	LEAD WIRE
999	MAIN WIRE HARNESS M/W
999	GEN WB06K5022
999	MAIN WIRE HARNESS
999	GEN 31-10117
999	GEN 13-13034
999	LEAD WIRE
999	GEN WB18K5217
999	GEN WB18K5478
999	GEN WB18K5470
999	GEN 31-13111
