JKP69BW1BB MICROWAVE BODY

JKP69BW1BB MICROWAVE BODY

Written by

in

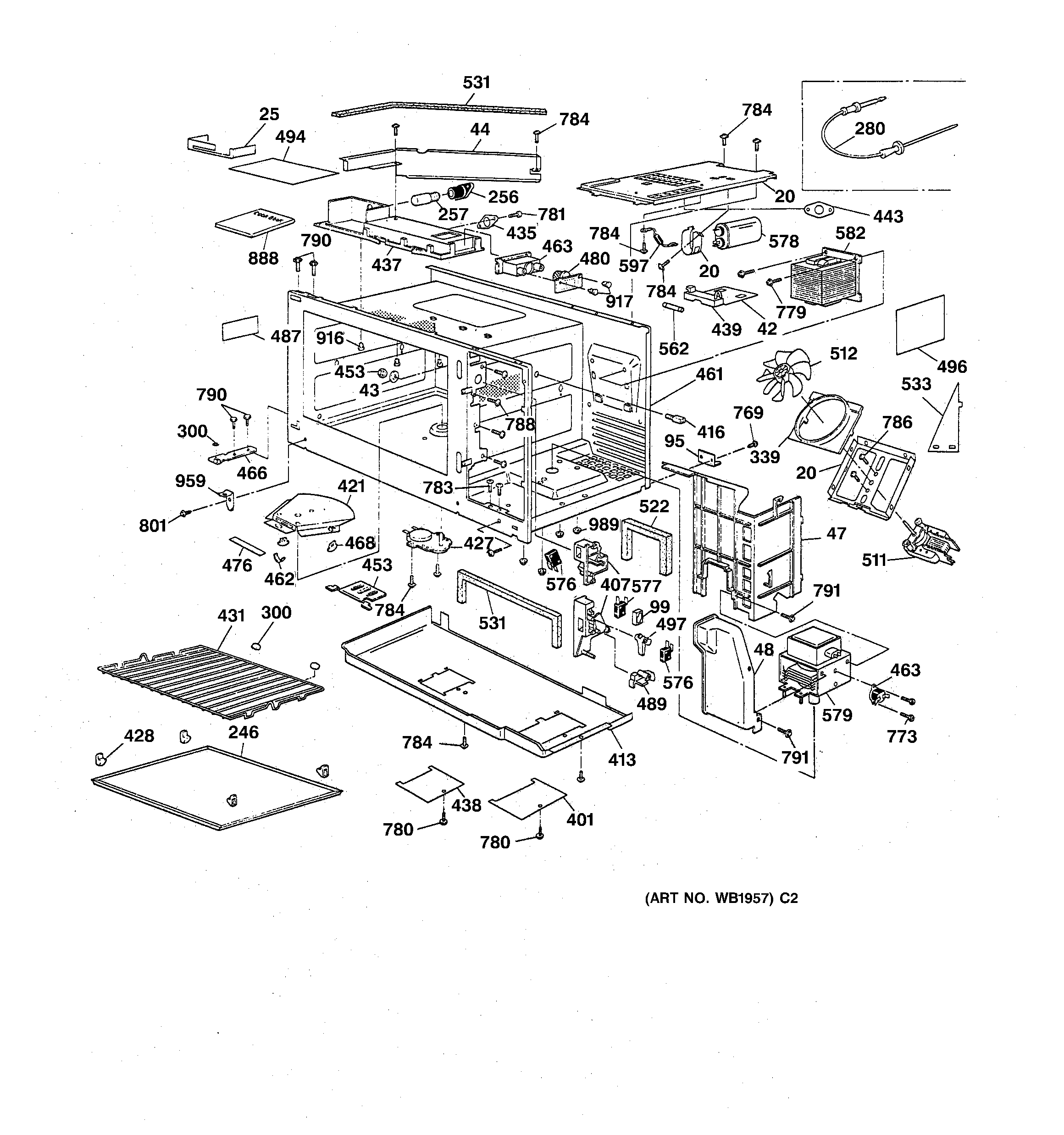

JKP69BW1BB MICROWAVE BODY

Products

PositionProduct
20FAN MOTOR BRACKET
20GEN WB02K5382
20GEN WB02K5295
20GEN WB02K5383
20HV CAPACITOR BRACKET
25GEN WB34K5110
42FUSE INSULATOR
43SPACER-M/W
44GEN WB02K5296
47GEN WB02X7724
47WB38K5029 GE Oven Vent Barrier
48GEN WB02X7635
95REAR STOP BRACKET
99SPACER
246WB48X10056 GE Broil Pan Set, Large Porcelain
246SHELF-M/W
256WB8K5029 GE Oven Lamp Holder
256GEN WB08K5096
257GEN WB08K5032
257GEN BUY-LOCAL
280WB20T10024 GE Oven Thermistor Probe
300SPACER-HINGE-M/W
300GEN WB02K5190
339GEN WB02X7728
401BOTTOM WINDOW-M/W
407DOOR HOOK LOWER-M/W
407DOOR HOOK UPPER-M/W
413GEN WB63K5124
413END CAP-CENTER-RT-BLK
413CTR TRIM END CAP-LT-BLK
416GEN WB08K5043
421GEN WB07K5277
421ANTENNA-M/W
427MOTOR, STIRRER-M/W
428SUPPORT RACK-M/W
431GEN WB48K5008
435GEN WB27K5132
437GEN WB38K5038
438LO TRIM SPRING CLIP
438BOTTOM WINDOW-M/W
439FUSE HOLDER
443GEN WB24K5099
453JACK NUT
453CONTROL PANEL HINGE
461CAVITY
462GEN WB02K5298
463GEN WB27X5371
463GEN WB02X7649
466GEN WB10K5013
466GEN WB10K5014
468GEN WB02K5297
476SERVICE CAUTION LABEL
480GEN WB27X5406
487NAME PLATE
489GEN WB10X5186
489GEN WB15K5039
494GEN WB06K5021
496GEN WB09K5015
496GEN WB06K5039
497GEN WB38K5047
497GEN WB02X7628
511FAN MOTOR
512GEN WB02X4114
522CUSHION 15T 10W 450L
531CUSHION 5T 10W 450L
531CUSHION 5T 10W 550L
533AIR SEPARATION
562FUSE #SS6-15A
576GEN WB24X0352
577GEN WB24X0353
578GEN WB27K5130
579WB27X10249 GE Oven Magnetron
582GEN WB27X5447
597GEN WB08K5044
769WB1X500D GE Oven Screw Package
773SCREW
779WB1M14 GE Oven Screw
780SCREW
781GEN WB01K5095
783SCREW
784GEN WB01K5098
786SCREW
788SCREW
790SCREW
791SCREW
801WB1M1 GE Oven Screw
888GEN WB06K5022
916GEN WB01K5153
917CLIP MTG SENSOR
959LOWER TRIM CLIP
989NUT
