JKP69WW1WW MICROWAVE CONTROL PANEL – Aparts

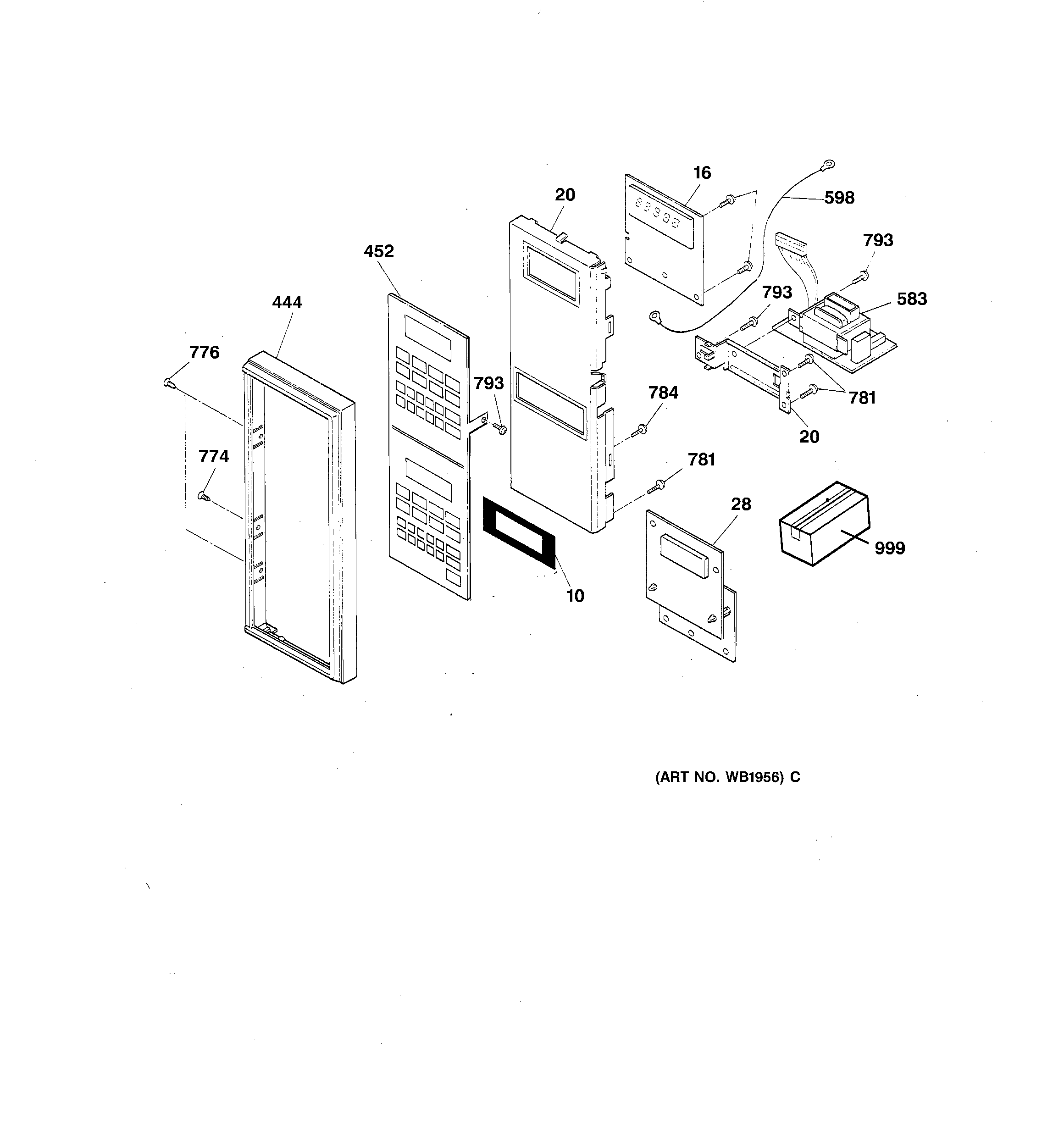

JKP69WW1WW MICROWAVE CONTROL PANEL

Products

Position	Product
10	GEN WB57K5302
16	DP CIRCUIT ASS'Y
20	GEN WB02K5382
20	GEN WB02K5383
20	HV CAPACITOR BRACKET
20	GEN WB02K5295
20	FAN MOTOR BRACKET
28	WB12K5005 GE Oven Electric Control
444	GEN WB07K5142
452	MEMBRANE UNIT-WHT
583	GEN WB20K5042
598	GEN WB18K5297
774	GEN WB01K5089
776	GEN WB01K5091
781	GEN WB01K5095
784	GEN WB01K5098
793	GEN WB01K5105
999	LEAD WIRE
999	LEAD WIRE
999	MAIN WIRE HARNESS
999	GEN WB18K5470
999	GEN 31-13111
999	GEN 31-10117
999	LOCK MOTOR HARNESS-LOWER
999	MW-MINI MAN/WIRE DIAGRAM
999	GEN WB18K5478
999	MAIN WIRE HARNESS M/W
