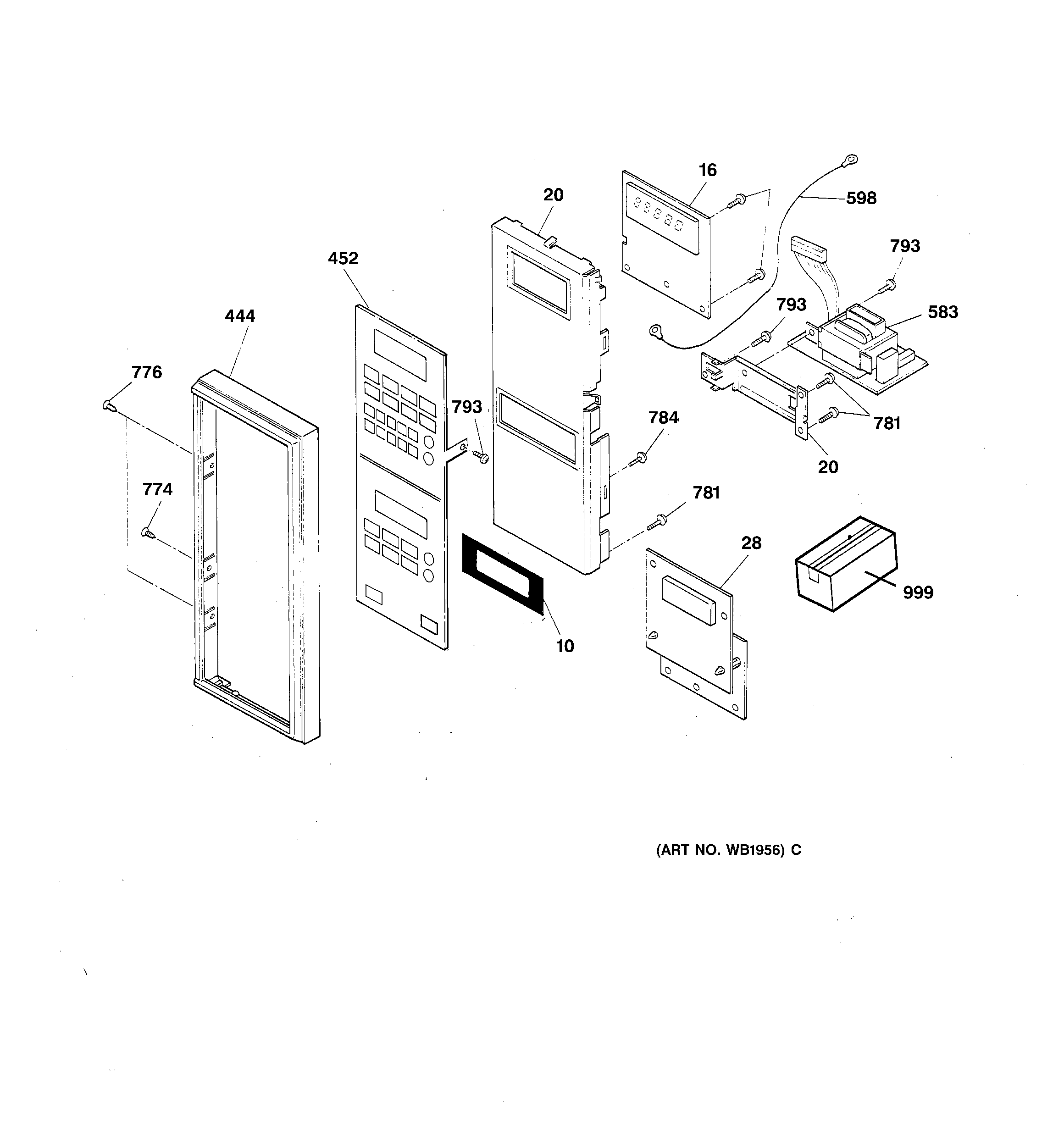

JKP69WW2WW CONTROL PANEL

JKP69WW2WW CONTROL PANEL

Written by

in

JKP69WW2WW CONTROL PANEL

Products

PositionProduct
10GEN WB57K5302
16DP CIRCUIT ASS'Y
20GEN WB02K5383
20HV CAPACITOR BRACKET
20FAN MOTOR BRACKET
20GEN WB02K5295
20GEN WB02K5382
28WB12K5005 GE Oven Electric Control
444GEN WB07K5142
452MEMBRANE UNIT-WHT
583GEN WB20K5042
598GEN WB18K5297
760WB1X536 GE Oven Screw
774GEN WB01K5089
776GEN WB01K5091
781GEN WB01K5095
784GEN WB01K5098
793SCREW
847WB1X1118 GE Oven Screw 6-32T
999MAIN WIRE HARNESS
999GEN WB06K5022
999LEAD WIRE
999LEAD WIRE
999GEN 31-13111
999GEN 31-10117
999GEN WB18K5470
999LOCK MOTOR HARNESS-LOWER
999GEN 49-8762
999MW-MINI MAN/WIRE DIAGRAM
999MAIN WIRE HARNESS M/W
