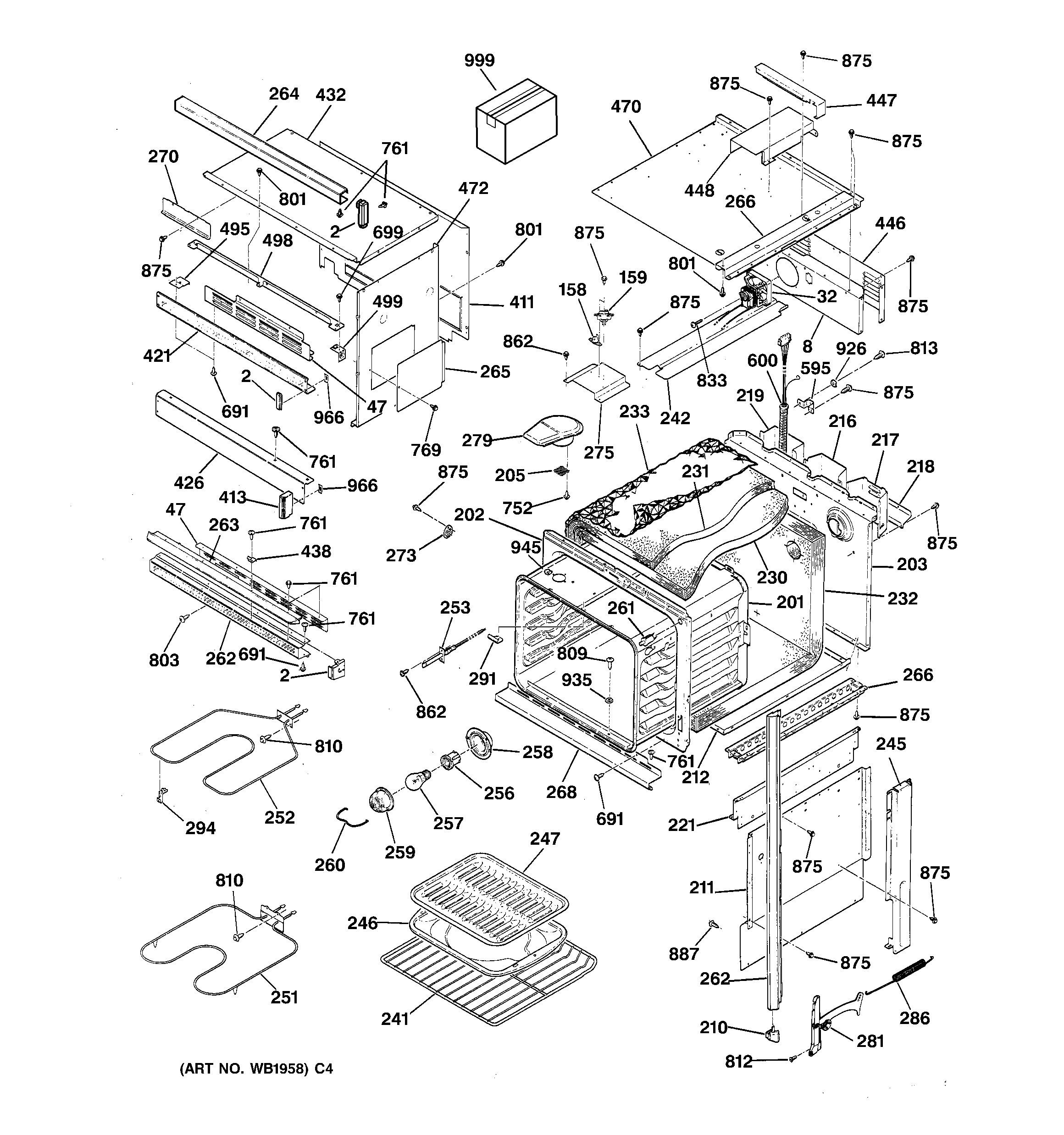

JKP69WY1WW BODY SECTION WITH MICROWAVE ENCLOSURE

JKP69WY1WW BODY SECTION WITH MICROWAVE ENCLOSURE

Written by

in

JKP69WY1WW BODY SECTION WITH MICROWAVE ENCLOSURE

Products

PositionProduct
2GEN WB07T10017
2GEN WB07K5442
2GEN WB07T10018
8FAN SUPPORT-LOWER
32WB26K5072 GE Oven Fan Assembly
47WB38K5058 GE Vent Barrier
47GEN WB02X7724
47GEN WB38K5047
158WB24K5033 GE Oven Limit Switch
159WB24K5049 GE Oven Limit Switch
201GEN WB63T10009
202GEN WB63T10008
203WB63K5167 GE Back Main
205WB6K5026 GE Oven Smoke El Screw
210GEN WB07K5453
210GEN WB07K5454
211WB63T10043 GE Cabinet Side
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34K5070
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
221GEN WB63K5174
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
232INSULATION BACK/BTTM-UPR
233GEN WB34K5080
241WB48T10093 GE Oven Range Rack
242WB38K5041 GE Vent Box
245GEN WB02K5139
246SHELF-M/W
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
253GEN WB21X5310
256WB8K5029 GE Oven Lamp Holder
256GEN WB08K5096
257GEN BUY-LOCAL
257GEN WB08K5032
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24K5061
262GEN WB07T10011
262GEN WB07T10012
262GEN WB07K5483
263GEN WB07T10019
264GEN WB07T10014
265ACCESS COVER
266BASE RAIL MICROWAVE
266WB63K5079 GE Rail Base
268GEN WB07K5452
270LIGHT COVER
273GEN WB02K5365
275WB34K5078 GE Oven Vent Box Cover
279VENT BOX ASM-BLACK
281GEN WB14K5006
281GEN WB14K5007
286OVEN DOOR SPRING-UPPER
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
411CABINET BACK
413GEN WB63K5124
421GEN WB07T10021
421ANTENNA-M/W
426GEN WB07T10013
432CABINET TOP
438LO TRIM SPRING CLIP
438BOTTOM WINDOW-M/W
446WB34K5089 GE Wire Center Cover
447WIRE COVER-MICRO SIDE
448GEN WB34K5185
470COMPARTMENT BOTTOM
472CABINET SIDE-RT
472CABINET SIDE-LT
495VENT TRIM BRACKET
498GEN WB02T10003
595WB2K5126 GE Oven Condenser Clamp
600WB18X32567 GE Conduit Wire Assembly
691GEN WB01K5163
691WB1K5177 GE Oven Trim Screw
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
761WB1K5185 GE Oven White Screw
761WB1K5029 GE Oven Screw
769WB1X500D GE Oven Screw Package
803WB1X1149 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
833WB1X1131 GE Screw 6-32
862GEN WB01X1178
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
926GROUND WASHER
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
999GEN 31-10255
999GEN 31-
