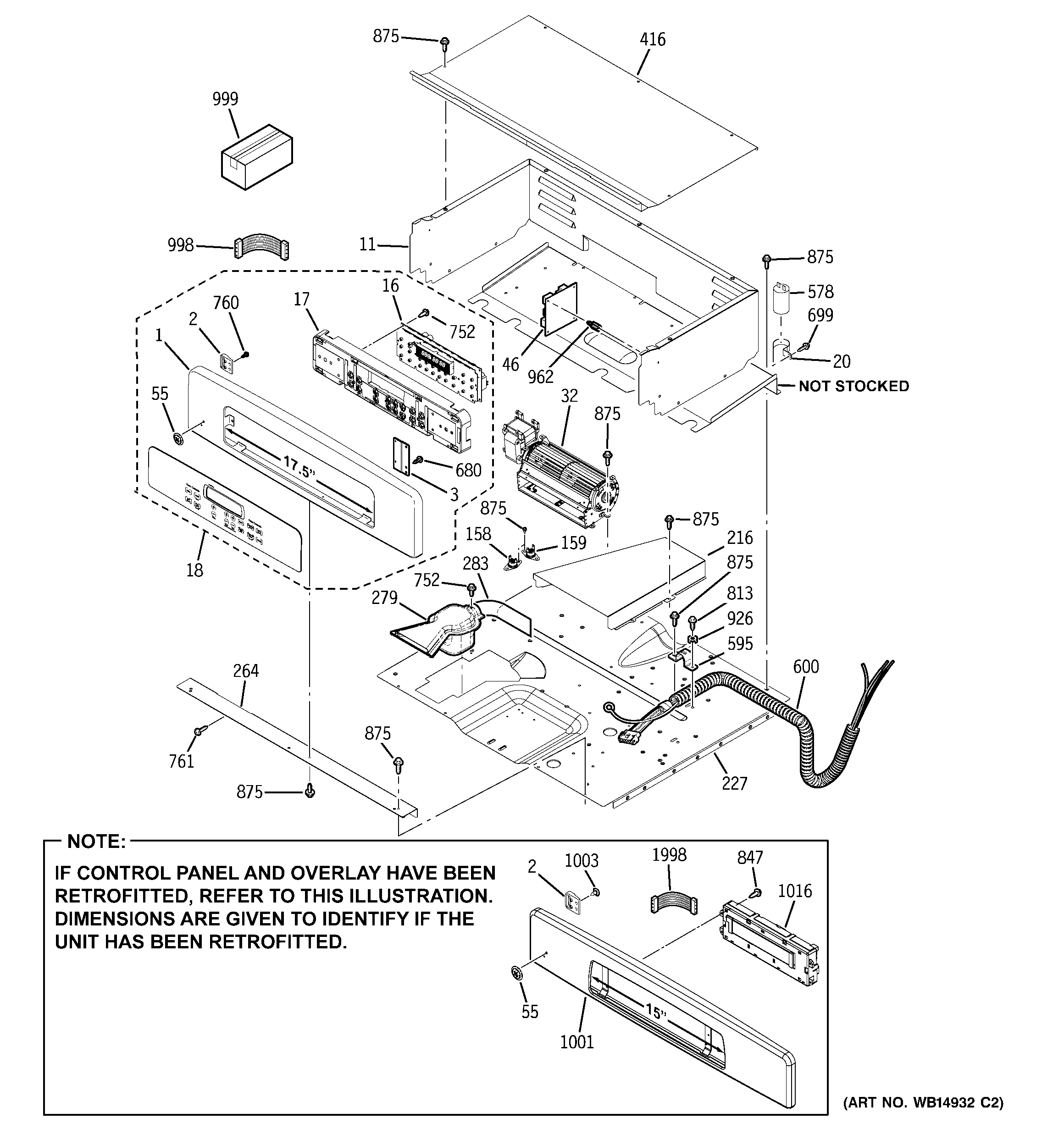

JKP75BM3BB CONTROL PANEL

JKP75BM3BB CONTROL PANEL

Written by

in

JKP75BM3BB CONTROL PANEL

Products

PositionProduct
1GEN WB36T11015
2GEN WB02T10376
3GEN WB02T10383
3GEN WB02T10382
11WB02T10362 GE Fan Housing
16GEN WB27T10908
17GEN WB27T10930
18GEN WB49T10059
20WB02T10152 GE Oven Motor Capacitor Bracket
32GEN WB26T10057
46WB27T10569 GE Oven Range Control Board
55WB02T10359 GE Oven Badge
158WB24T10080 GE Oven Bake Thermostat
159WB24T10096 GE Oven Limit Bimetal Switch
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10356
264WB07T10539 GE Trim Vent
279WB38T10019 GE Oven Vent Box Assembly
283WB28T10081 GE Lower Oven Vent Inlet Duct
283WB28T10212 GE Inlet Duct Vent
416WB02T10363 GE Electrical Top Cover
578WB27T10662 GE Oven Capacitor
595WB2K5126 GE Oven Condenser Clamp
600WB18T10225 GE Oven Wire Conduit Assembly
600WB18T10448 GE Oven Wire Conduit Assembly
680WR1X1850 GE Refrigerator Screw
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
760WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WH2X930 GE Screw
926GROUND WASHER
962WB02T10207 GE PCB Standoff
998GEN WB18T10403
999GEN 31-10647
999INSTR INSTALL OVN DOOR
999GEN 31-10730
999WB18T10342 GE Oven Logic/Display Harness
999GEN 31-14542
999GEN 31-10754
999GEN 31-10747
999GEN 49-80584
999GEN 49-80598
999GEN 49-80429
1001GEN WB36T11280
1003WZ4X245D GE Screw Package
1016GEN WB27T11158
1998WB18T10371 GE Oven Ribbon Connector GLS Touch
