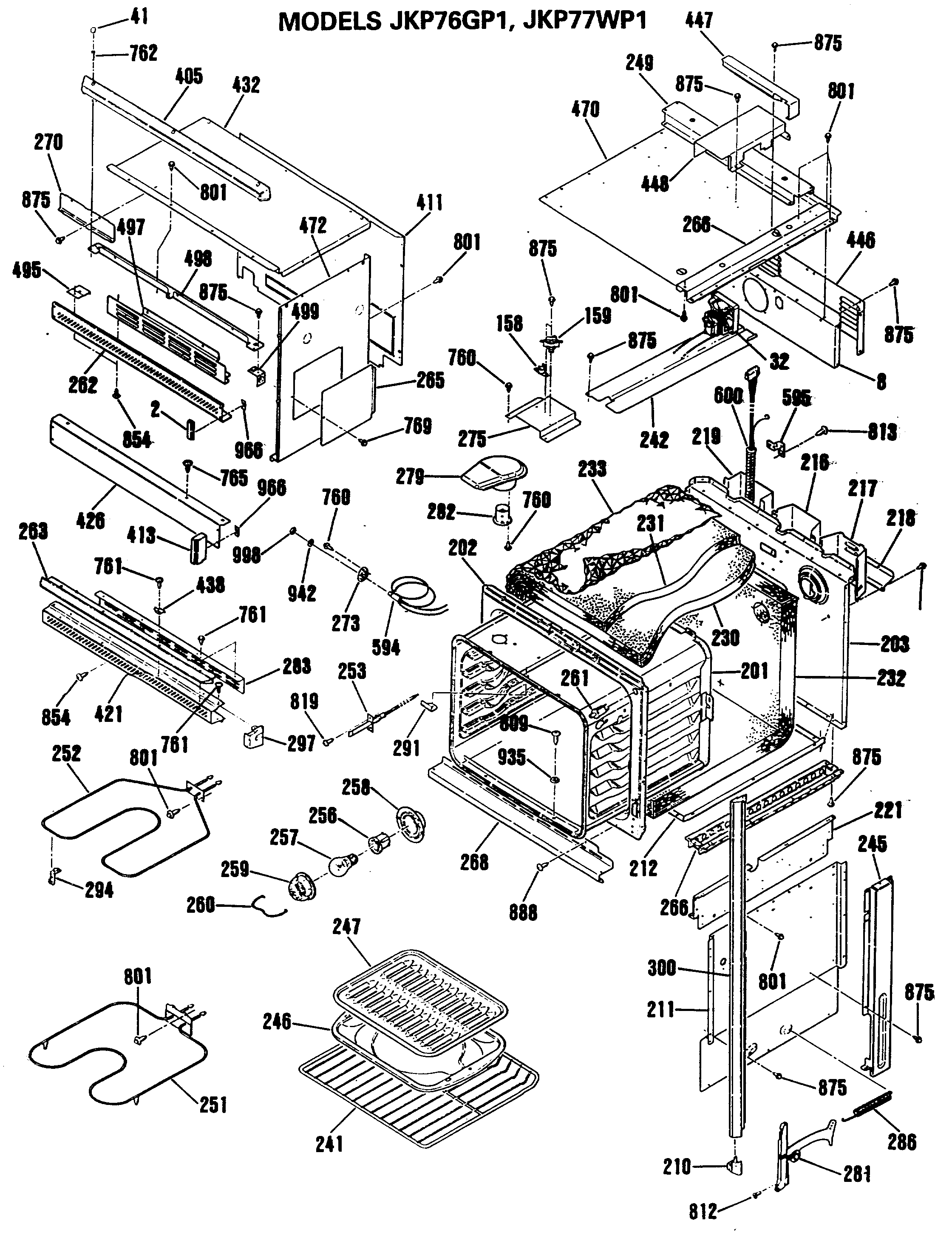

JKP76GP1 3

JKP76GP1 3

Written by

in

JKP76GP1 3

Products

PositionProduct
2END CAP-LT
2END CAP-RT
8FAN SUPPORT-LOWER
32FAN ASM-LOWER
41GEN WB07K5036
158WB24K5033 GE Oven Limit Switch
159GEN WB24K5037
201GEN WB63K5086
202GEN WB63K5084
203GEN WB63K5078
210BTM TRIM CAP-LT-BLK
210BTM TRIM CAP-RT-BLK
211GEN WB63K5085
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34K5070
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
221CAB SIDE EXTENSION-LOW
230WB35K5048 GE Inner Wrapper Insulation
231INSUL-TOP/SIDES-OUT-UPP
233GEN WB34K5080
241WB48T10093 GE Oven Range Rack
242WB38K5041 GE Vent Box
245GEN WB02K5139
246WB48X10056 GE Broil Pan Set, Large Porcelain
246CERAMIC TRAY
249MICROWAVE SUPPORT
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
253SENSOR ASM
256WB8K5029 GE Oven Lamp Holder
256GEN WB08K5096
257GEN BUY-LOCAL
257GEN WB08K5032
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24K5061
262TRIM VENT UPPER (BLK)
263WB7K5378 GE Oven Brow Trim
265ACCESS COVER
266BASE RAIL MICROWAVE
266WB63K5079 GE Rail Base
268GEN WB07K5169
270LIGHT COVER
273PROBE COVER
275WB34K5078 GE Oven Vent Box Cover
279VENT BOX ASM-BLACK
281GEN WB14K5007
281GEN WB14K5006
282GEN WB28K5010
283WB38K5029 GE Oven Vent Barrier
286OV DR SPRING-UPPER
291COVER
294WB2X9719 GE Oven Support Bracket Clip
297GEN WB36K5101
297GEN WB36K5102
300SPACER-HINGE-M/W
300GEN WB02K5190
300VENT TRIM-SIDE-LT-BLK
300VENT TRIM-SIDE-RT-BLK
411CABINET BACK
413CTR TRIM END CAP-LT-BLK
413END CAP-CENTER-RT-BLK
413GEN WB63K5124
421WB7K5101 GE Oven Vent Trim
421ANTENNA-M/W
426TRIM-LOWER-M/W
432CABINET TOP
438LO TRIM SPRING CLIP
438BOTTOM WINDOW-M/W
446WB34K5089 GE Wire Center Cover
447WIRE COVER-MICRO SIDE
448WIRE COVER-MICRO CENTER
470COMPARTMENT BOTTOM
472CABINET SIDE-RT
472CABINET SIDE-LT
495VENT TRIM BRACKET
497VENT BARRIER TRIM
497GEN WB02X7628
498CABINET BRACE
499CABINET BRACE BRACKET
594RECEPTACLE JACK
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5215
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
762GEN WB01K5061
765GEN WB01X5716
769WB1X500D GE Oven Screw Package
801WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
819WB1X1118 GE Oven Screw 6-32T
875GEN WB01K5057
888GEN WB01X1328
935GEN WB01X1201
942WB1X5573 GE Oven Washer
966GEN WB01
