JKP76GP2BG 2

Products

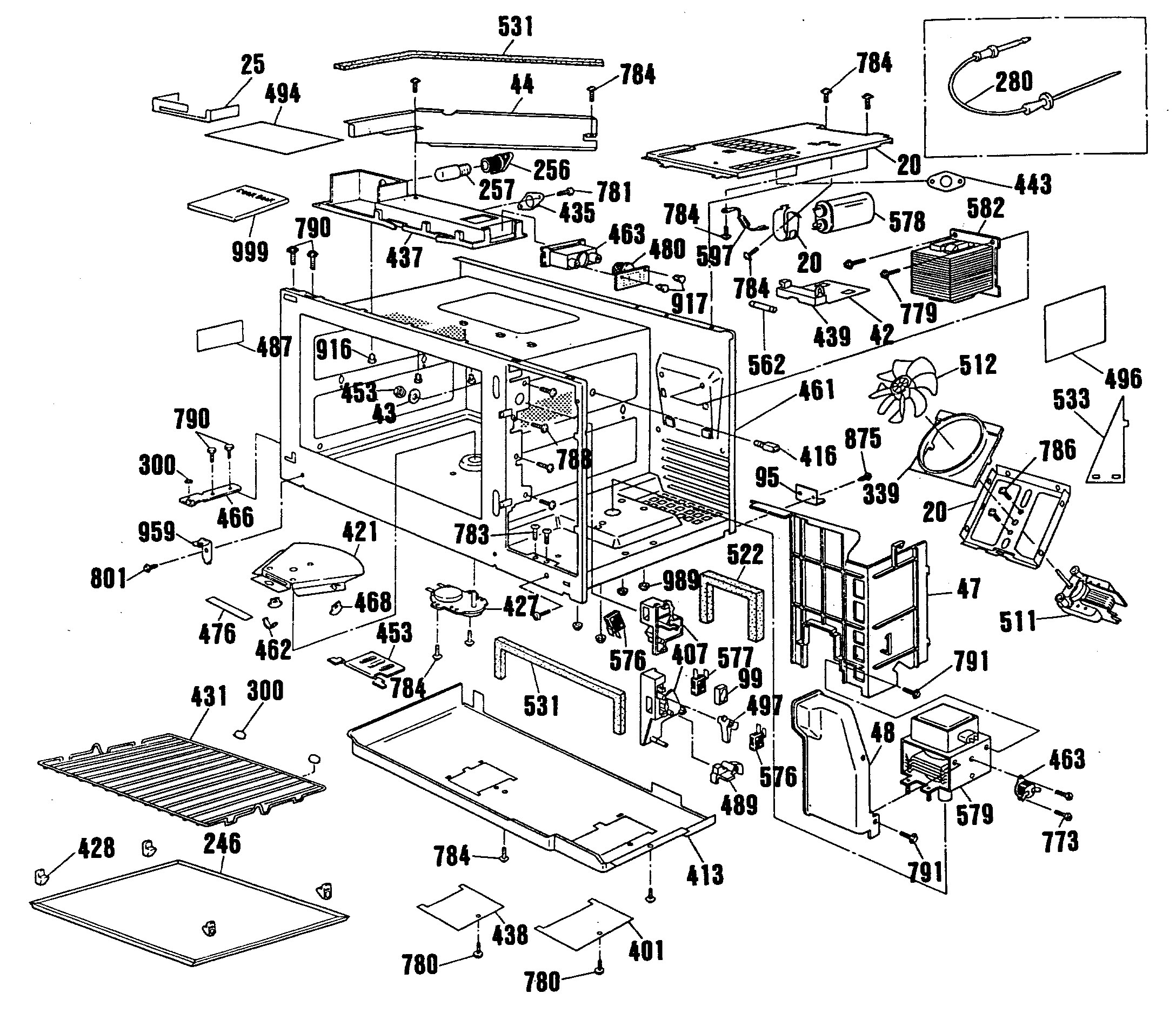

PositionProduct
20HV CAPACITOR BRACKET
20FAN MOTOR BRACKET
20GEN WB02K5193
20GEN WB02K5192
20GEN WB02K5189
25GEN WB34K5110
42FUSE INSULATOR
43SPACER-M/W
44GEN WB02X7722
47GEN WB02X7724
47WB38K5029 GE Oven Vent Barrier
48GEN WB02X7635
95REAR STOP BRACKET
99SPACER
246CERAMIC TRAY
246WB48X10056 GE Broil Pan Set, Large Porcelain
256WB8K5029 GE Oven Lamp Holder
256GEN WB08K5096
257GEN BUY-LOCAL
257GEN WB08K5032
280WB20T10024 GE Oven Thermistor Probe
300SPACER-HINGE-M/W
300GEN WB02K5190
339GEN WB02X7728
401BOTTOM WINDOW-M/W
407DOOR HOOK LOWER-M/W
407DOOR HOOK UPPER-M/W
413GEN WB63K5124
413END CAP-CENTER-RT-BLK
413CTR TRIM END CAP-LT-BLK
416HOLDER PROBE-M/W
416SENSOR JACK
421TRIM VENT UPPER (BLK)
421ANTENNA-M/W
427MOTOR, STIRRER-M/W
428SUPPORT-OVEN RACK
431GEN WB48K5008
435THERMAL CUTOUT-M/W
437GEN WB38K5038
438BOTTOM WINDOW-M/W
438LO TRIM SPRING CLIP
439FUSE HOLDER
443THERMAL SWITCH
453CONTROL PANEL HINGE
461CAVITY
462GEN WB02X7625
463GEN WB27X5371
463GEN WB02X7649
466GEN WB10X5179
466GEN WB10X5184
468ANTENNA SUPPORT
476SERVICE CAUTION LABEL
480GEN WB27X5406
487NAME PLATE
489GEN WB10X5186
489GEN WB15K5039
494GEN WB06K5021
496GEN WB09K5015
496GEN WB06K5019
497GEN WB02X7628
497VENT BARRIER TRIM
511FAN MOTOR
512GEN WB02X4114
522CUSHION 15T 10W 450L
531CUSHION 5T 10W 550L
531CUSHION 5T 10W 450L
533AIR SEPARATION
562FUSE #SS6-15A
576GEN WB24X0352
577GEN WB24X0353
578WB27X10073 GE Oven Capacitor
579WB27X10249 GE Oven Magnetron
582GEN WB27X5447
597HV DIODE
773SCREW
779WB1M14 GE Oven Screw
780SCREW
781GEN WB01K5095
783SCREW
784GEN WB01K5098
786SCREW
788SCREW
790SCREW
791SCREW
801WB1M1 GE Oven Screw
875GEN WB01X5716
875GEN WB01K5057
916PLASTIC RIVET
917CLIP MTG SENSOR
959LOWER TRIM CLIP
989NUT
999MAIN WIRE HARNESS M/W
999MAIN WIRE HARNESS
999GEN WB06K5022
999LEAD WIRE
999MW-MINI MAN/WIRE DIAGRAM
999GEN WB18K5217
999GEN 49-8180
999LEAD WIRE
999HV LEAD WIRE
999GEN 31-10090
999GEN 31-13111
